hydraulic metal press brake

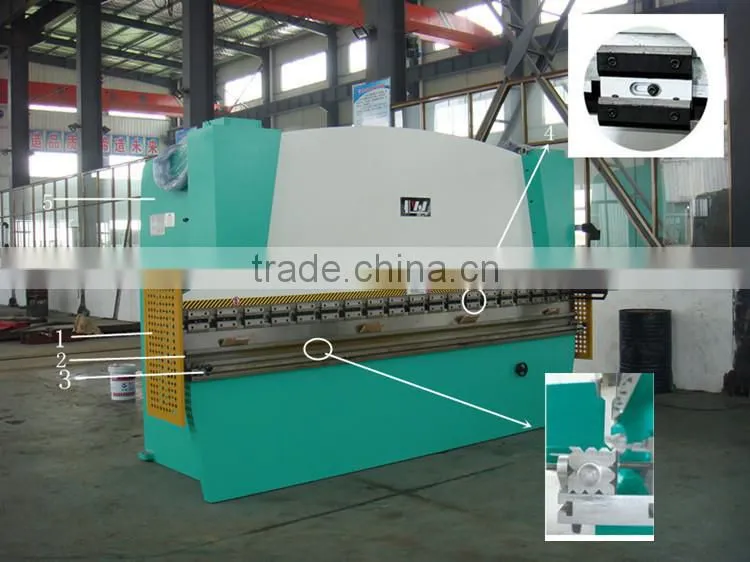

Main structure
This machine is composed by frame, ram, worktable, two cylinder
digital display system and electric system;
Equipped with upper wedge manual crowning mechanism;
For easy feeding the workpiece, we provide front support with the machine;
The left-right balance of this machine while working is accomplished by torsion bar;
Safe fence and power break protection device are designed for the machine.
Hydraulic system
it use JAPAN NOK seals;
Oil lever indication is clear and directly;
Excessive load overflow valve machanism, safe and reliable;
American OMG valves from China, running steadily and reliably;
Shanghai Chengjie pumps
Electric system
Main electrical elements adopt Siemens
Buttons are Schneider
Siemens motor
Portable foot switch
It uses E10 or E21 digital display system which is special for press brake
other CNC control system is optional
NO. |
Item |
Valve |
Unit |
Remarks |
1 |
Nominal pressure |
1600 |
KN |
|
2 |
width |
3200 |
mm |
|
3 |
Distance between uprights |
2600 |
mm |
|
4 |
stokes |
180 |
mm |
|
5 |
Open height |
450 |
mm |
|
6 |
Throat depth |
320 |
mm |
|
7 |
Length of working table |
3200 |
mm |
|
8 |
Running speed |
100 |
mm/s |
|
9 |
Working speed |
8 |
mm/s |
|
10 |
Returning speed |
80 |
mm/s |
|
11 |
Main power |
11 |
KW |
|
12 |
Length |
3350 |
mm |
|
13 |
Width |
1590 |
mm |
Not include front support |
14 |
Height |
2560 |
mm |
|
15 |
Axes |
2 |
|
X,Y |

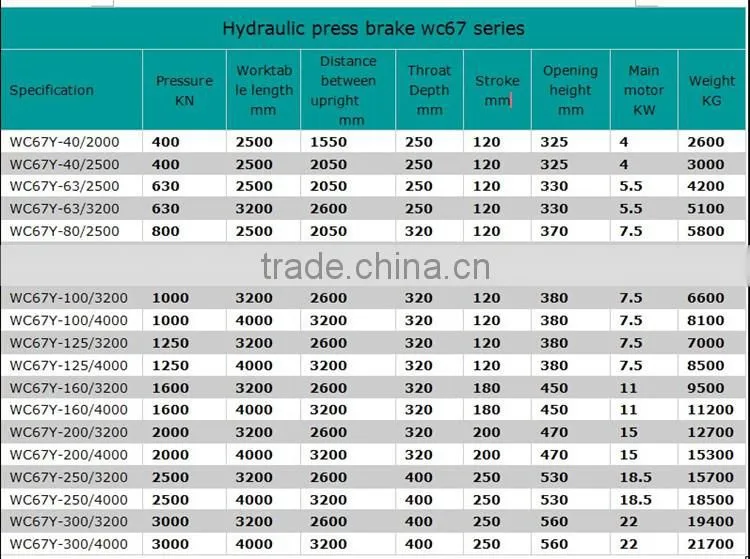

other types
metal press brake

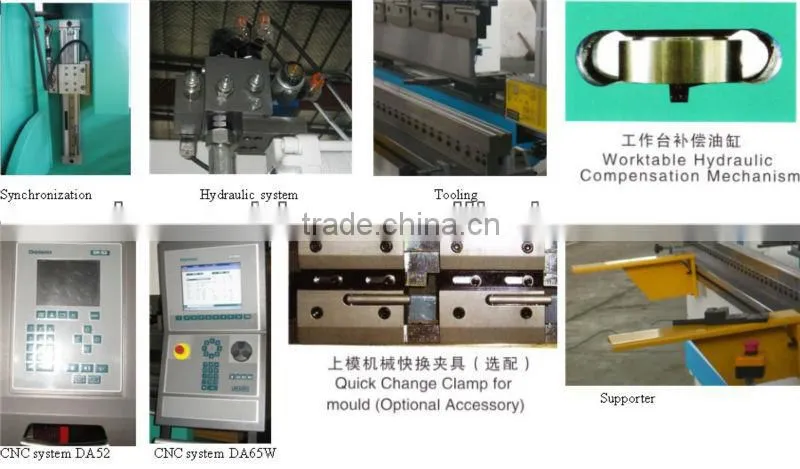

| 1.safe guide |
| 2.One set standard tool( Multi V wide worktable) |
| 3.Front holding support |
| 4.Economic clamping block device simple to use |
| 5.Robust frame work |
| 6.Standard ESTUN E21 control system( two shaft control) |
| Y shaft for stroke control shaft, used to control the bending angle |
| X control bending machine flanging size |

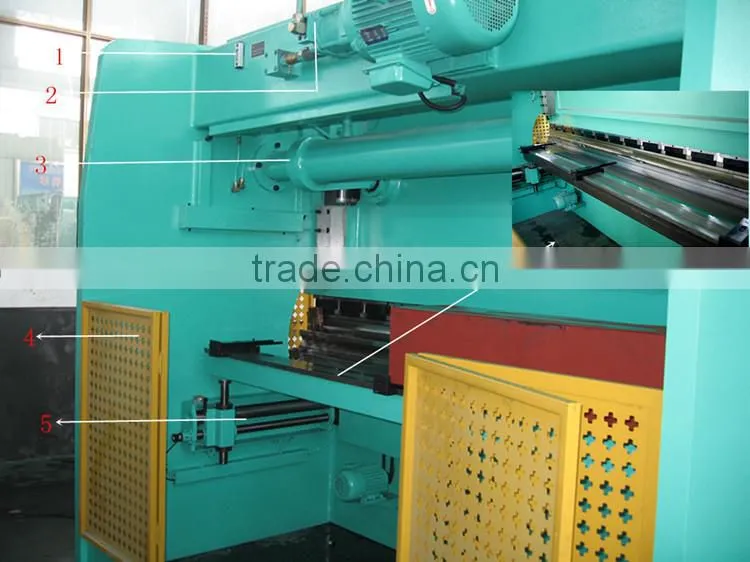

| 1.Clear visual oil level height and temperature display. |
| 2.Hydraulic system: |
|
a.Hydraulic system may realize quick decline, slow decline, working speed bending,quick return travel and sudden slider in the process of up and down etc |
| b.Gear pump with high pressure and low noise |
| c.Sealing rings from NOK, with good sealing performance, reliable working and long life |
| d.Optional Rexroth company or German Bosh |
| 3.upper bend compensation mechanism |
| 4.Back safe guide |
5.Linear guide way, ball screw optional |
CE certificate
How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.
we can solve it through email and video.
what policy for broken parts?
within one year,we offer free parts.
if beyond one year,you need to buy by factory cost.
