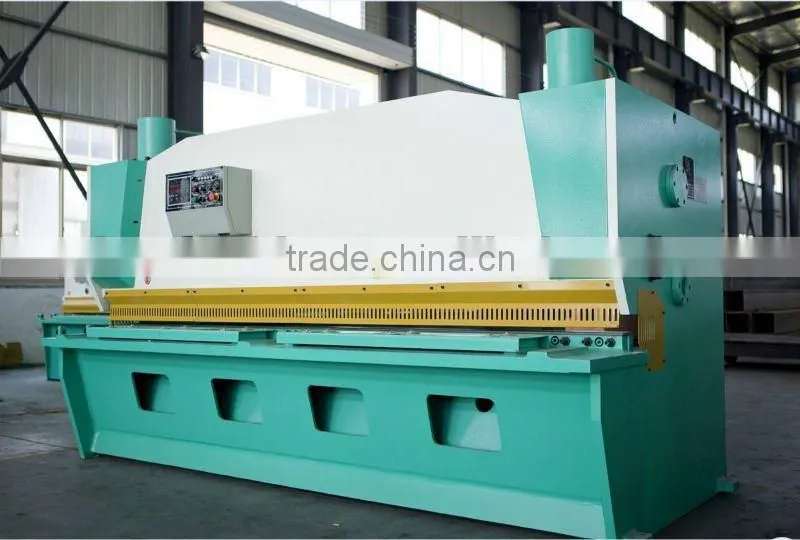

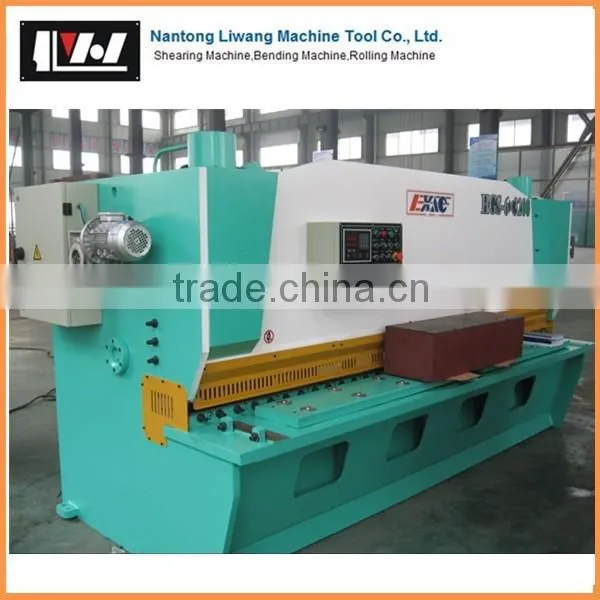

cnc guillotine cutter
1,Features of the machine |
1.Holistic welding structure |
2.Adopt interacted hydraulic transmission system |
3.Triple support lead rail to eliminate the gaps , it enhance the shearing quality. |
4.The accumulator’s return is stable and fast. |
5.Rectangular blades with four cutting edges to prolong working life. |
6.Blades clearance adjusted by hand wheel , it’s quick, accurate and convenient. |
7. Adjusting shearing angle to reduce the deformation of the sheet |
8.Upper blade holder with inward struture |

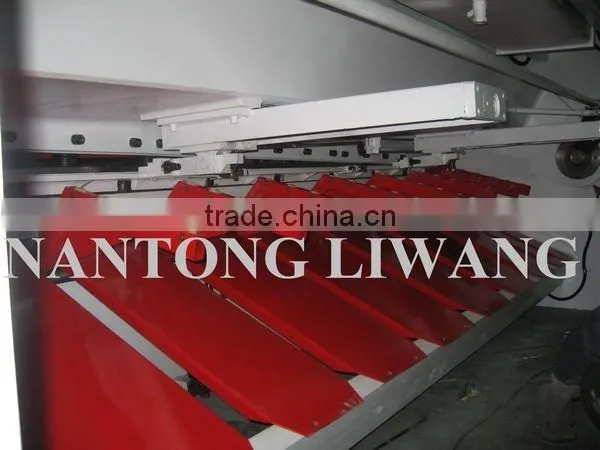

5.Pneumatic back support is optional |
2,control system |
1.the control system is ESTUN E21, the cutting times is displayed on the screen |
2. Front support and back support for free, pneumatic back support is optional |
3.The cut stroke and cut times can be controlled by the system |
4.the program memory of up to 40 programs, up to 25 steps per program |
5.Chinese/English |
3.Customized machine |
1.we have standard type machine for optional |
2.If you have special requirement of the throat depth, back gauge, cutting length, can be made according to your needs. |
3. the standard control system is E21, we also have E10, DA310,DA360 and PLC control system |
4. for thin metal plate, we have pneumatic back support for optional |

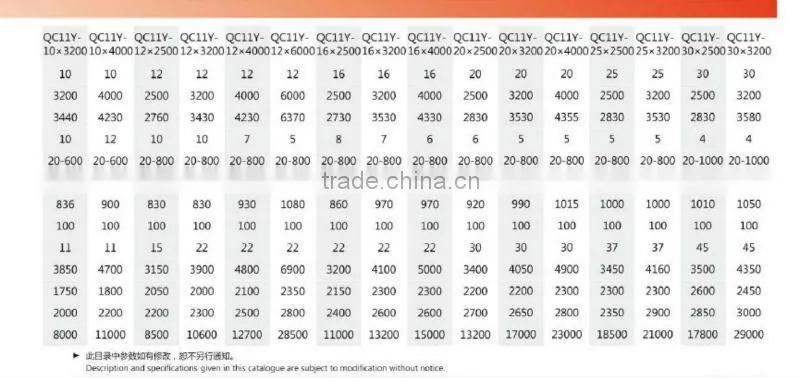

Technical parameters:
No |
Item |
Value |
Unit |
Remarks |
1 |
Shearing thickness |
6 |
mm |
Stainless steel:3mm |
2 |
Shearing width |
2500 |
mm |
|
3 |
Shearing angle |
0.5-1.5° |
|
|
4 |
Back gauge |
20-600 |
mm |
|
5 |
Strokes |
17 |
|
|
6 |
Blade length |
2600 |
mm |
|
7 |
Working table height |
780 |
mm |
|
8 |
Main power |
7.5 |
KW |
|
9 |
Length |
3100 |
mm |
|
10 |
Width |
1450 |
mm |
|
11 |
Height |
1950 |
mm |
|
12 |
Weight |
4820 |
Kg |
|
control system: ESTUN E21
Pneumatic back support is optional
How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.
we can solve it through email and video.
what policy for broken parts?
within one year,we offer free parts.
if beyond one year,you need to buy by factory cost.
