new condition hydraulic metal cutting machine

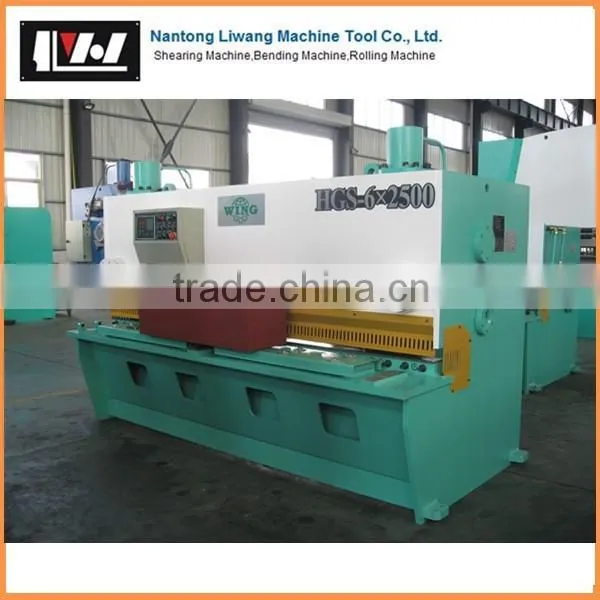

Product Photos

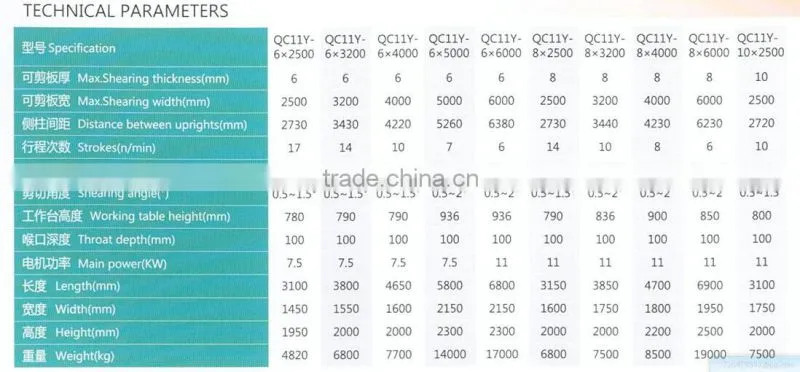

What is the Specifications of hydraulic metal cutting machine ?
No |
Item |
Value |
Unit |
Remarks |
1 |
Shearing thickness |
6 |
mm |
|
2 |
Shearing width |
2500 |
mm |
|
3 |
Shearing angle |
1.5° |
|
|
4 |
Back gauge |
20-1000 |
mm |
Linear guide way, ball screw |
5 |
Strokes |
17 |
|
|
6 |
Blade length |
2550 |
mm |
|
7 |
Working table height |
780 |
mm |
|
8 |
Main power |
7.5 |
KW |
|
9 |
Length |
3100 |
mm |
|
10 |
Width |
1620 |
mm |
|
11 |
Height |
1600 |
mm |
|
12 |
Weight |
4800 |
Kg |
Other type:
What is the advantages of metal cutting machine ?
1.Holistic welding structure
2.hydraulic driven upper blade carrier moving downward and linearly
3.Both the upper and lower blades are rectangular, and the blade clearance can be adjusted manually or electrically rapidly
4.time reply controls shearing stroke and shearing angle are adjustable electrically
5.he forward and backward movement of the backgauge is motorized and indicated by digital display, while fine adjustment are also available
6.All major electrical and hydraulic elements are assembled with high grade international brands
7.Pneumatic back support is optional
| General |
| 1.Controller panel is located at left front of machine, machine cut metal sheet from left to right size |
| 2.Motorized adjustable cutting angle, 1-3° |
|
3.Hardened carbon chromium cutting blade, four edges available for cutting, cutting gap can be 4.adjusted manually) two sides back of machine. |
| 5.High precision cutting |
| Standard configuration |
| 1.ESTUN E21 control system |
| 2.shanghai chengjie pump |
| 3.OMEGA valve |
| 4.Standard 100mm high precision ruler |
| 5.Foot switch |
| 6.Tools box |

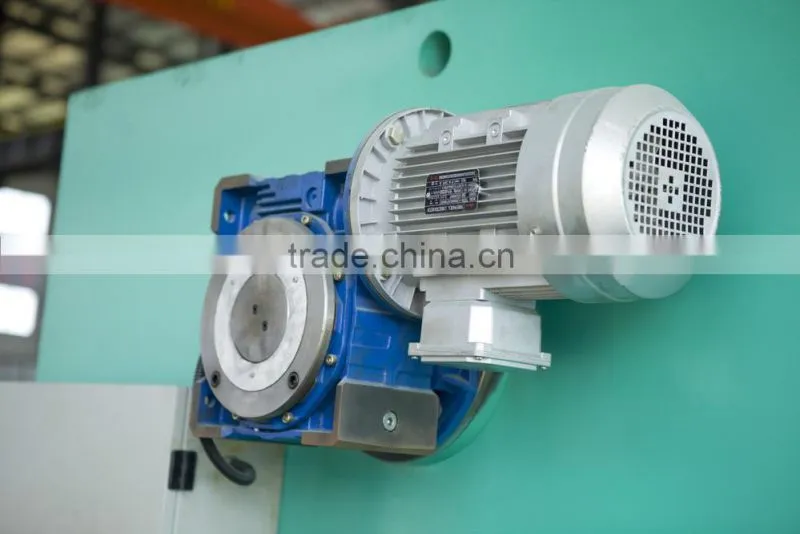

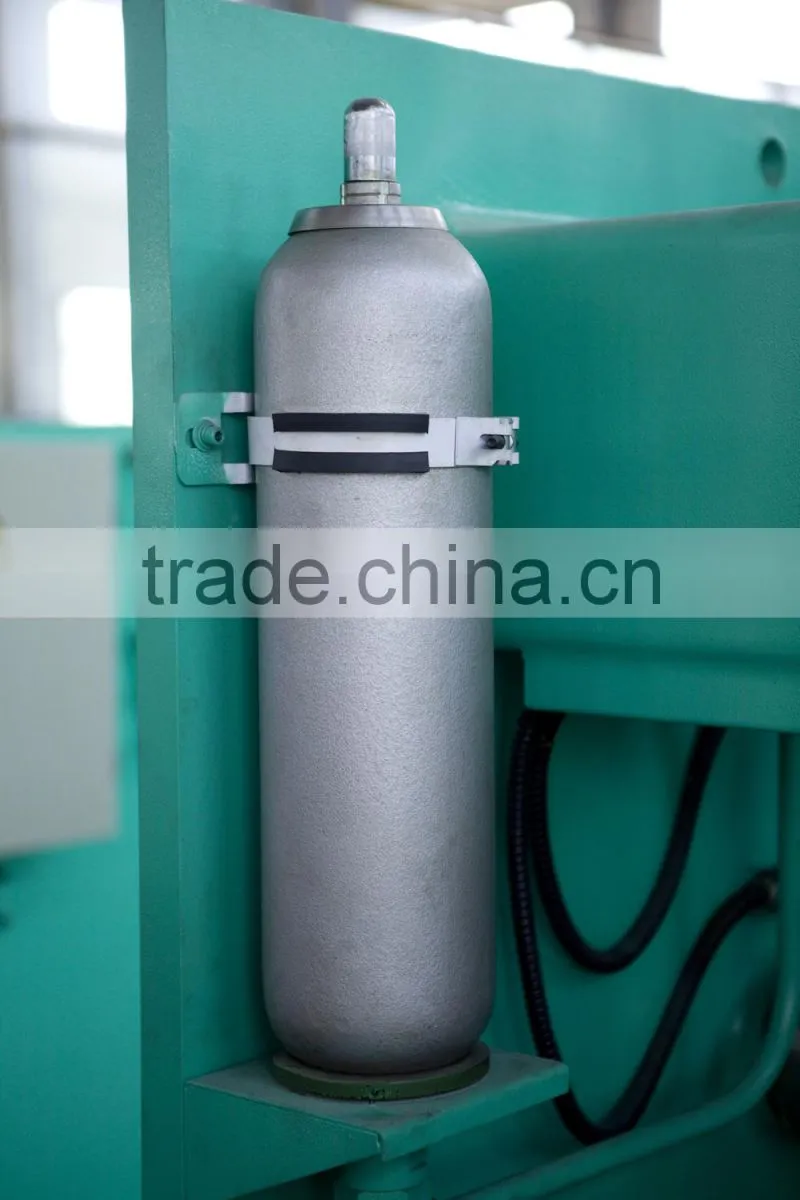

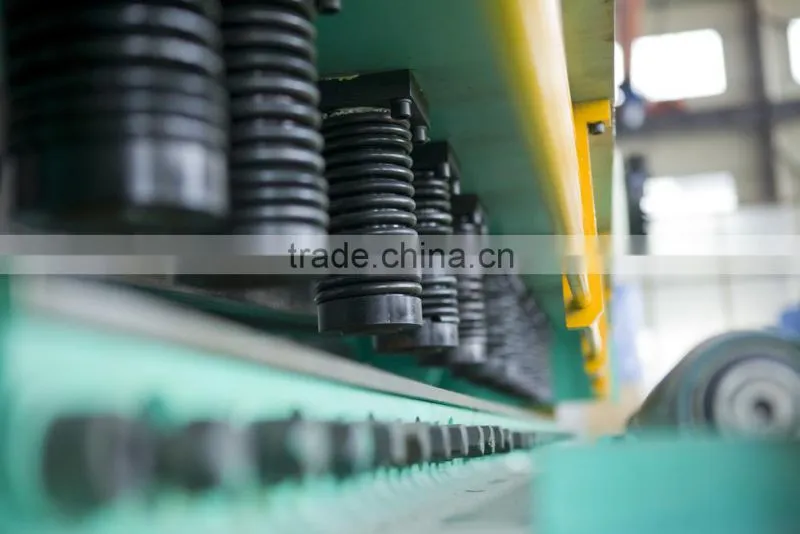

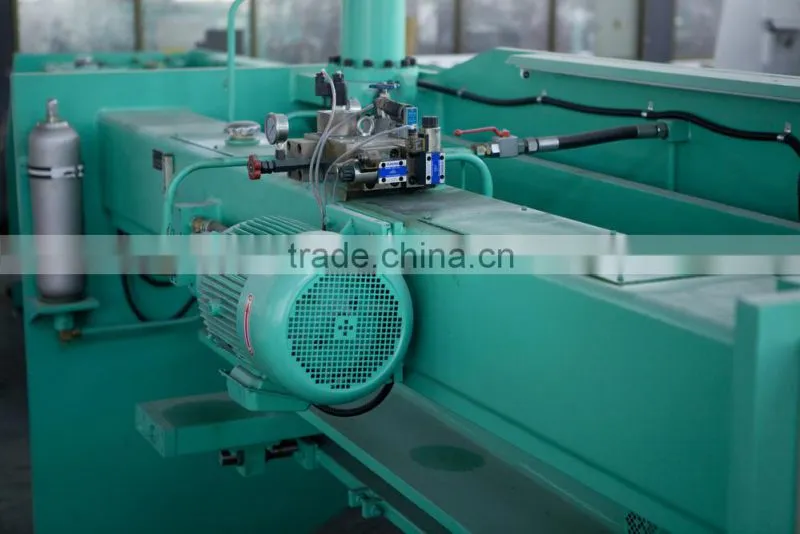

Detail photos
What is the Applications?
Our products have been widely used in the manufacturing field of defense industry, lifts,ships, vehicles,engineering, electrical appliance,etc. Having been sold to all over our country and exported to more than 30 countries such as Europe, South America, the Middle East, South Africa, South East Asia, etc
Terms of Payment:
1.Payment:T/T,LC
2.MOQ:1 Set
3.Warranty: all life, one year free
How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.
we can solve it through email and video.
what policy for broken parts?
within one year,we offer free parts.
if beyond one year,you need to buy by factory cost.
Why choose Us?
1.Reply your inquire in 24 hours
2.Experienced staffs answer all your query in fluent English
3.Exclusive and unique solution can be provided to our customer by our well trained and professional engineers and staffs
4.Customerized design is available,OEM/ODM are welcomed
5.Warmly welcome your visit in our company if avaiable
