FRAME INSPECT AND MEASURING MACHINE

Name: FRAME INSPECT AND MEASURING MACHINE
Brand: SHUZ TUNG
SKU: 106249965
Availability: InStock

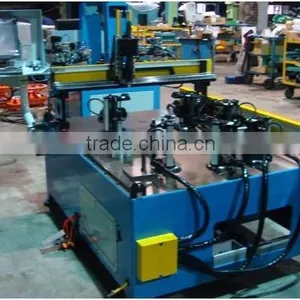

FRAME INSPECT AND MEASURING MACHINE thumbnail-1

FRAME INSPECT AND MEASURING MACHINE photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

SHUZ TUNG

Model Number:

HT-80-222-A

Contact Supplier Request Quote Chat Now

Shuz Tung Machinery Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taichung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name SHUZ TUNG

Model Number HT-80-222-A

Specifications

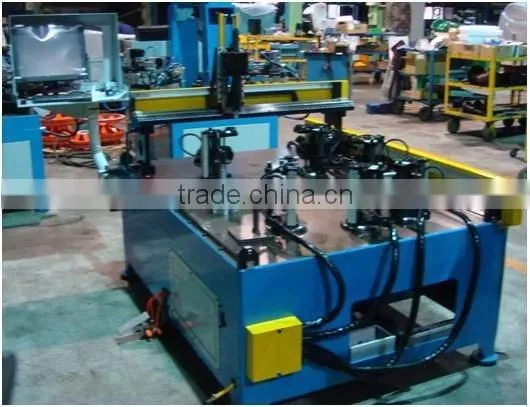

Bicycle Frame Inspect & Measuring Machine
1.Suitable for both diamond & suspension frame inspect.

Bicycle Frame Inspect & Measuring Machine

FEATURE:

1. Applied scale: frame, suspension frame, parts of frame is option( Buyer should extra order molds.)

2. After measuring, monitor will display frame line diagram and center height value.

3. Available to print out inspecting result and save data.

4. After measuring diamond frame, it available display 9 point inspecting value.

5. It available display spindle hole relative dimension and X&Y axis dimension of suspension frame.

6. Available to measure leaning seat tube.

7. Available display digital to second decimal place (0.01mm), output port link computer so could prompt got data.

8. Max. measuring complete cycle size: 29”

9. Available measuring head tube length, seat tube length, rear fork end width, center height of seat stay and chain stay.

10. It can record measuring data of center height.

11. B.B. shell barcode input by QR code scanner.

12. Standard accessories: 1). Head tube mold X 2 sets, 2). Seat tube mold x 1set, 3). B.B. Shell mold x 1 set, 4). Angle square x 1 set, 5). Rear fork end gauge x 1 set, 6). Seat stay gauge x 1 set, 7). Chain stay gauge x 1set

SPECIFICATION:

1. X axis inspecting stroke: 1360mm,

Y axis inspecting stroke: 980mm

2. Frame fixed method is manual put on C type cushion and adopt pull-down air cylinder device to fix B.B. shell.

3. Measuring frame height and gauge repeatability precision: 0.05mm

4. Measuring frame X & Y axis geometric repeatability precision: ±0.15mm

5. Control system: PC BASE / BUTTON

6. Voltage: 110V/220V, 1 phase/ 50/60HZ (OR AS PER CLIENT’S REQUEST)

7. Dimension: 1,997x1,877x1,410mm

8. Weight: 1,050KG
