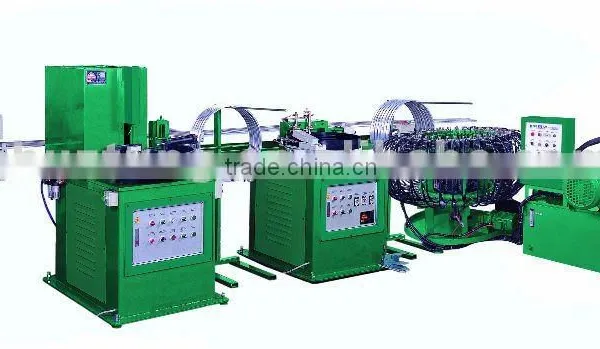

Alloy Rim Producing Machine

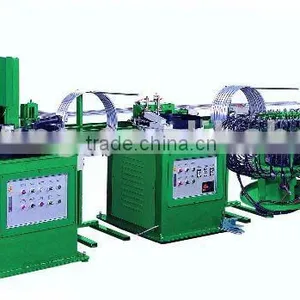

Alloy Rim Producing Machine thumbnail-1
Alloy Rim Producing Machine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SHUZ TUNG
Model Number:
HT-60-240, HT-60-250, HT-60-260, HT-60-142
Contact Supplier Request Quote Chat Now
Shuz Tung Machinery Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taichung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name SHUZ TUNG
Model Number HT-60-240, HT-60-250, HT-60-260, HT-60-142

Specifications

Bicycle Alloy Rim Producing machine
Manufacturing Procedure:
ROLLING-> CUTTING -> PIN INSERTING-> HOLE PUNCHING

Alloy wheels producing machine

HT-60-24 RIM ROLLING M/C

*  SUITABLE FOR RIM SIZE FROM 12-28”

*  POWER CONSUMPTION:1HP

*  CONTROL SYSTEM: CONVENTIONAL ELECTRICAL

*  CAPACITY:2500-3000PCS/8 HOURS

*  M/C DIMENSION:2240X1360X1580 (LXWXH) M/MC

*  WEIGHT:1000KGS

HT-60-25 RIM CUTTING M/C

*  SUITABLE FOR RIM SIZE FROM 12-28” , DIFFERENT SIZE FOR DIFFERENT MOULD

*  POWER CONSUMPTION:3HP (SAW CUTTING)

*  POWER CONSUMPTION:1HP (HYDRAULIC)

*  CONVENTIONAL ELECTRICAL

*  CAPACITY:2000-2400PCS/8HOURS

*  DIMENSION:1520X1060X1880 (LXWXH) M/M

*  WEIGHT:660KGS

HT-60-26 PIN INSERTING M/C

*  SUITABLE FOR RIM SIZE FROM 12-28”, DIFFERENT SIZE FOR DIFFERENT MOULD

*  POWER CONSUMPTION:3HP (HYDRAULIC)

*  CONTROL SYSTEM: CONVENTIONAL ELECTRICAL

*  CAPACITY:2000-2400PCS/8HOURS

*  DIMENSION:1330X1100X1500 (LXWXH) M/M

* WEIGHT:520KGS

HT-60-142 36 HOLES PUNCHING M/C

*  SUITABLE FOR WHEEL SIZE: 12 - 28” VIA 1/2HP MOTOR MOVING OF PUNCHING HEADS.

*  SUITABLE FOR WHEEL HOLES: 16 - 36 HOLES (ONE MACHINE COULD ADOPT 5 DIFFERENT HOLE NUMBER ONLY.)

*   ONE TIME ADJUSTMENT DESIGN FOR POSITION OF PUNCHING HEAD WHEN SIZE OF RIM DIFFERS

*   AVAILABLE FOR DIFFERENT NUMBER OF HOLES VIA QUICK CHANGE DESIGN FOR POSITION OF PUNCHING HEAD

*   HYDRAULIC SYSTEM: 15HP

*   HOLES PUNCHING BY 37 HYDRAULIC CYLINDERS, INCLUDING 36 SPOKE HOLES AND ONE VALVE HOLE

*   MAX. THICKNESS OF STEEL RIM: 1.1 MM

*   MAX. THICKNESS OF ALLOY RIM: 2.0 MM.

*   M/C CYCLE TIME:3 SEC/PC (37HOLES)

*   CHANGE-OVER TIME: BETWEEN SIZE - 5 MIN.

                                            BETWEEN HOLE - 30 MIN.

*   MACHINE DIMESION: 251(L)X142(W)X129(H) CM

*   MACHINE WEIGHT:1200KGS
