Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Multistage Hydraulic Telecopic Cylinder for Agriculture Tipper Truck

Multistage Hydraulic Telecopic Cylinder for Agriculture Tipper Truck

Name: Multistage Hydraulic Telecopic Cylinder for Agriculture Tipper Truck
Brand: DAWN OR OEM
SKU: 106247819
Availability: InStock

Multistage Hydraulic Telecopic Cylinder for Agriculture Tipper Truck thumbnail-1

Multistage Hydraulic Telecopic Cylinder for Agriculture Tipper Truck photo-1

US$ 480 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard or Nonstandard:

Nonstandard

Structure:

Series Cylinder

Power:

Hydraulic

Contact Supplier Request Quote Chat Now

Jinan Hug Import And Export Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Nonstandard

Structure Series Cylinder

Power Hydraulic

Body Material Other, ALLOY STEEL

Maximum Stroke 7800

Shaft Diameter 109~220

Place of Origin Shandong, China

Model Number SC

Brand Name DAWN OR OEM

Specifications

1. 3-5 stages
2. Rod diameter up to 220mm
3. Stroke up to 9030mm
4. ISO9001:2008
5. Parker/Hallite Seals

Product Description

Hydraulic Telescopic Cylinder

Characteristics:

- Larger diameter, more lifting capacity.
- Max working pressure reaches 190 bar,better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability.
- New model guide ring combined with lubricating material,guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
-100% tested, guarantee high quality.

Specifications:

Model	Extended Stages	Working Pressure	Max.Rod Diameter	Max.Stroke Length	Lifting Capacity	FC Price (USD)	Suitable Length of Truck Body
129-3E-3880	3	16-19 MPa	129mm	3880mm	20-35 ton	1110	5.2m
149-3E-3880	3	16-19 MPa	149mm	3880mm	25-45 ton	1293	5.2m
149-3E-4280	3	16-19 MPa	149mm	4280mm	25-45 ton	1293	5.6m
149-4E-3880	4	16-19 MPa	149mm	3880mm	25-40 ton	1293	5.2m
149-4E-4280	4	16-19 MPa	149mm	4280mm	25-40 ton	1293	5.6m
169-4E-4280	4	16-19 MPa	169mm	4280mm	30-50 ton	1400	5.2-5.6m
169-4E-4640	4	16-19 MPa	169mm	4640mm	32-55 ton	1495	5.6-6.1m
169-4E-5000	4	16-19 MPa	169mm	5000mm	32-60 ton	1585	6.2-6.8m
169-4E-5180	4	16-19 MPa	169mm	5180mm	32-60 ton	1630	6.2-6.9m
169-4E-5390	4	16-19 MPa	169mm	5390mm	32-60 ton	1675	6.2-6.9
169-4E-5460	4	16-19 MPa	169mm	5460mm	32-60 ton	1695	6.5-7.3
185-4E-4280	4	16-19 MPa	185mm	4280mm	25-45 ton	1295	5.6m
185-4E-4640	4	16-19 MPa	185mm	4640mm	30-45 ton	1385	5.6-6.1m
185-4E-5000	4	16-19 MPa	185mm	5000mm	32-50 ton	1475	6.2-6.5m
185-4E-5390	4	16-19 MPa	185mm	5390mm	40-60 ton	1570	6.2-6.8m
185-4E-5460	4	16-19 MPa	185mm	5460mm	40-65 ton	1461	6.5-7.3m
185-4E-5780	4	16-19 MPa	185mm	5780mm	45-70 ton	1610	6.9-7.7m
185-4E-6000	4	16-19 MPa	185mm	6000mm	50-80 ton	1755	7.3-8.2m
191-5E-5780	5	16-19 MPa	191mm	5780mm	40-70 ton	2125	6.9-7.7m
191-5E-6200	5	16-19 MPa	191mm	6200mm	45-80 ton	2270	7.3-8.2m
191-5E-7130	5	16-19 MPa	191mm	7130mm	50-85 ton	2640	7.8-8.5m
191-5E-9030	5	16-19 MPa	191mm	9030mm	55-90 ton	3380	10-11m
220-5E-7130	5	16-19 MPa	220mm	7130mm	65-100 ton	3420	7.8-8.5m
220-5E-9030	5	16-19 MPa	220mm	9030mm	65-100 ton	4435	10-11m

Price and technical solutions :
In order for you to get a better price and technical solutions. Please provide the following required parameters:
1. bore diameter;
2. rod diameter;
3. stroke;
4. working pressure;
5. front and back end mount type;
6. using frequency;
7.Work Environment;
Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.

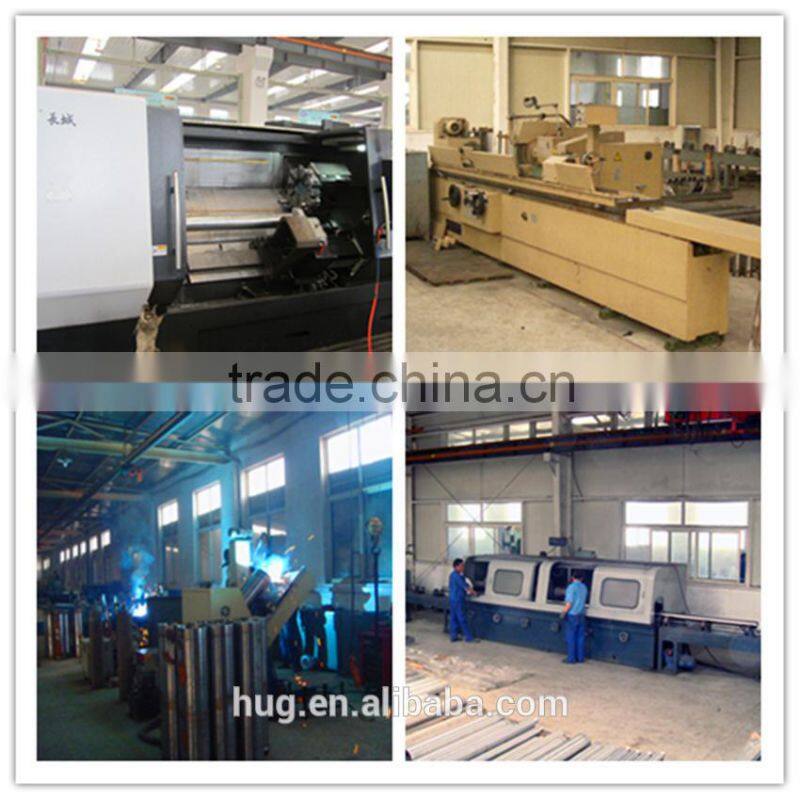

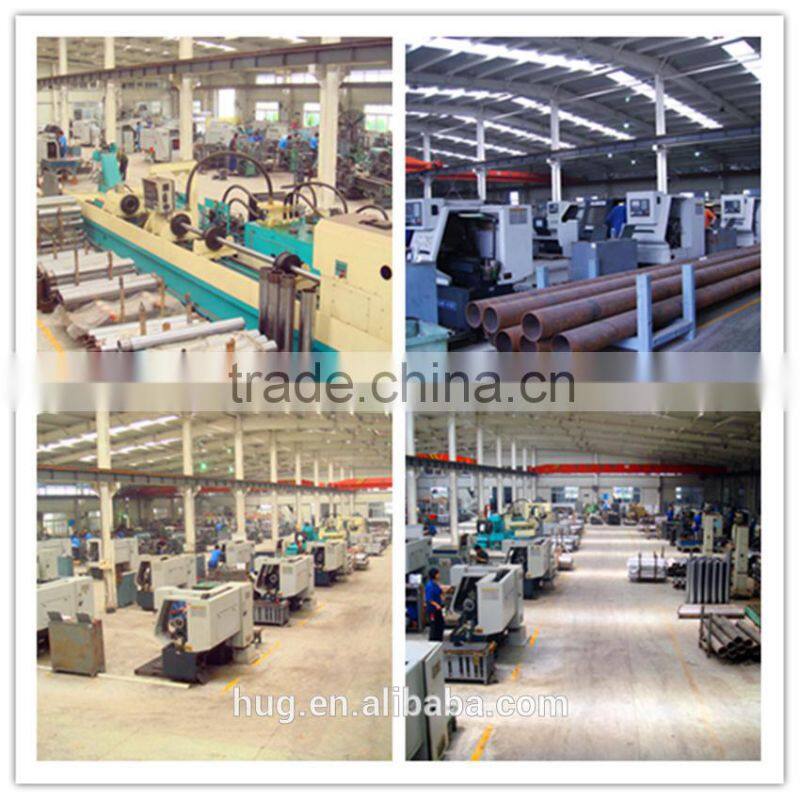

Jinan Hug Import And Export Trade Co., Ltd is a comprehensive company R & D, production, trade in one, the company has a professional R & D team and 4 production bases,staff more than 500 people,Including 100 set processing equipments, large machining center, large boring mills,grinding machines etc.with hydraulic, pneumatic and mechanical manufacturing products,widely used in various industries, such as: metallurgy, engineering machinery, ships, forging, machine, coal, petroleum, chemical industry, scientific research, military etc .. Two hours to Qingdao port
