Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > J21S Eccentric Mechanical Power Press Machine

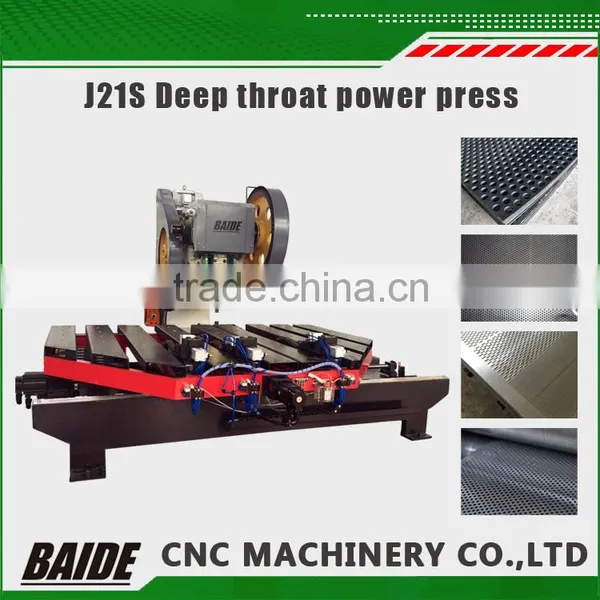

J21S Eccentric Mechanical Power Press Machine
US$ 1,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
J21S Deep Throat Power Press Automatic Punching MachineUS$ 1,000 - 5,000MOQ: 1 Piece -
JH21 Pneumatic Power Press, C Type Single Crank Power PressUS$ 1,000 - 50,000MOQ: 1 Piece
-
JH21 Pneumatic Power Press, Pneumatic Line Power Press MachineUS$ 1,000 - 50,000MOQ: 1 Piece
-
JH21 Pneumatic Power Press, Stainless Steel Utensils Hole Punching Edge Punching Powerpresses MachineUS$ 1,000 - 50,000MOQ: 1 Piece
-
JH21 Pneumatic Power Press/ Pneumatic Power Press Machine With Servo Feeding SystemUS$ 1,000 - 50,000MOQ: 1 Piece
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Anhui, China
Brand Name
BAIDE
Model Number
J21S
Voltage
220V/380V/240V/415V
Power(W)
1.1kw
Weight
350kg
Dimension(L*W*H)
740*600*1500mm
Certification
CE ISO SGS
Warranty
2 Years
After-sales Service Provided
Engineers available to service machinery overseas
Main parameters (Optional)
|
J21S-10T |
|
1 |
Nominal force |
100KN |
2 |
Stroke under nominal force |
2mm |
3 |
Ram stroke |
50mm |
4 |
Stroke time |
140times/min |
5 |
Max. mould height |
200mm |
6 |
Mould height adjustment |
40mm |
7 |
Distance from stroke surface to table |
130mm |
8 |
Working table dimension |
230*370mm |
9 |
Bore size on the table |
30*50mm |
10 |
Thickness of working table |
30mm |
11 |
Distance between columns |
170mm |
12 |
Motor power |
1.1KW |
13 |
Dimension |
740 x 600 x 1500mm |
14 |
Net weight |
350kg |
