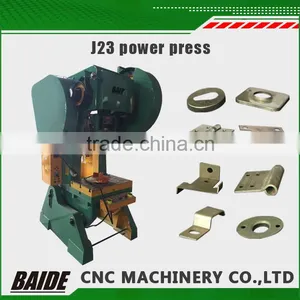

New Condition and Normal auto high speed power press
Negotiable
/ Set
1 Set(Min.Order)
- 40 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Mechanical |
Place of Origin: | Anhui, China | Brand Name: | Baide | Model Number: | J23 |
Voltage: | 380V | Power(W): | 1500 | Weight: | 1400 kg |
Dimension(L*W*H): | 1100*780*1800 | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Overseas third-party support available |
Product Description
New Condition and Normal auto high speed power press
Main parameters (Optional)
No. | Specification | J23-16T | ||
1 | Nominal force(kn) | 160 | ||
2 | Nominal force stroke(mm) | 5 | ||
3 | Slider stroke(mm) | 60 | ||
4 | Stroke frequency(times/min) | 110 | ||
5 | The largest closed height(mm) | 220 | ||
6 | Closed height adjustment(mm) | 50 | ||
7 | Distance between slider center and the fuselage | 180 | ||
8 | Work table size | F-B(mm) | 300 | |
L-R(mm) | 450 | |||
9 | Diameter of blank-holding hole | F-B(mm) | 130 | |
L-R(mm) | 200 | |||
Diameter(mm) | 120 | |||
10 | Slider bottom size | F-B(mm) | 130 | |
L-R(mm) | 220 | |||
11 | Hole size for die handle | Diameter(mm) | 40 | |
Depth (mm) | 60 | |||
12 | The distance between columns (mm) | 170 | ||
13 | Nat distance between work table to guide rail (mm) | 250 | ||
14 | Backing board thickness(mm) | 45 | ||
15 | Body tilting angle( °) | 30 | ||
16 | Motor | rate(kw) | 1.5 | |
speed(r/s) | 1410 | |||
17 | Frame dimension | L-R(mm) | 1100 | |
F-B(mm) | 780 | |||
height (mm) | 1800 |
