Home > Products > Power Press > J21 Series automatic punching machine

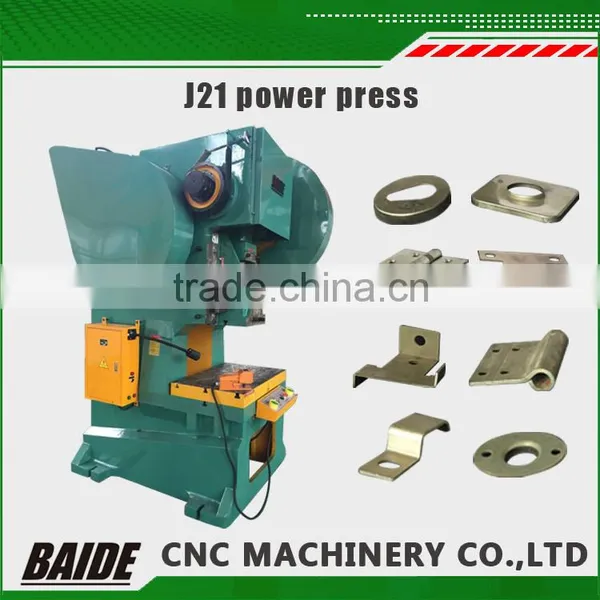

J21 Series automatic punching machine
USD $1,000 - $8,000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Mechanical |
Place of Origin: | Anhui, China | Brand Name: | BAIDE | Model Number: | J21 |
Voltage: | 380V/220V Optional | Power(W): | 7.5KW | Weight: | 4000KG |
Dimension(L*W*H): | 1600X1300X2600MM | Certification: | CE ISO SGS | Warranty: | 2 Years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Main parameters (Optional)
| J21-80T | |
1 | Nominal force | 800KN |
2 | Stroke under nominal force | 5mm |
3 | Ram stroke | 115mm |
4 | Stroke time | 45times/min |
5 | Max. mould height | 410mm |
6 | Mould height adjustment | 60mm |
7 | Distance from stroke surface to table | 280mm |
8 | Working table dimension | 500*750mm |
9 | Bore size on the table | 100*60mm |
10 | Thickness of working table | 90mm |
11 | Distance between columns | 360mm |
12 | Motor power | 7.5KW |
13 | Dimension | 1600 x 1300 x 2600mm |
14 | Net weight | 4000kg |
