CNC Glass Processing Center

CNC Glass Processing Center thumbnail-1
CNC Glass Processing Center photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Engraving Machine / CNC Router
Place of Origin:
Cambodia
Contact Supplier Request Quote Chat Now
Haining Lidu Glass Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Engraving Machine / CNC Router
Place of Origin Cambodia
Brand Name Lidu
Model Number LDKW4525
Voltage 380v
Power(W) 16KW
Dimension(L*W*H) 7000x4000x2650mm
Certification Other, CE, ISO9001:2000/CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC Glass Working Center
1.Glass Machine
2. Stationary system
3. High processing speed
4. Computer control CNC system

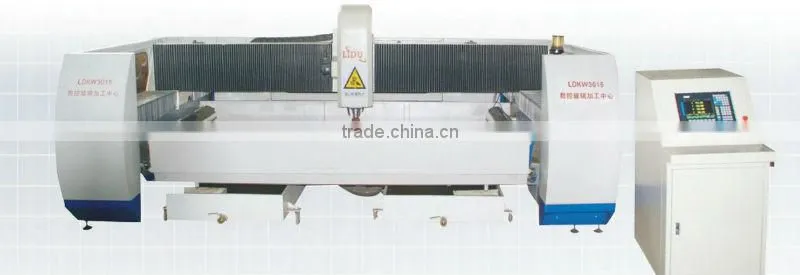

CNC Glass processing Center /LDKW4525

CNC Glass Processing Center



CNC Glass Processing Center



CNC Glass Processing Center



CNC Glass Processing Center



CNC Glass Processing Center



CNC Glass Processing Center



Characteristics:

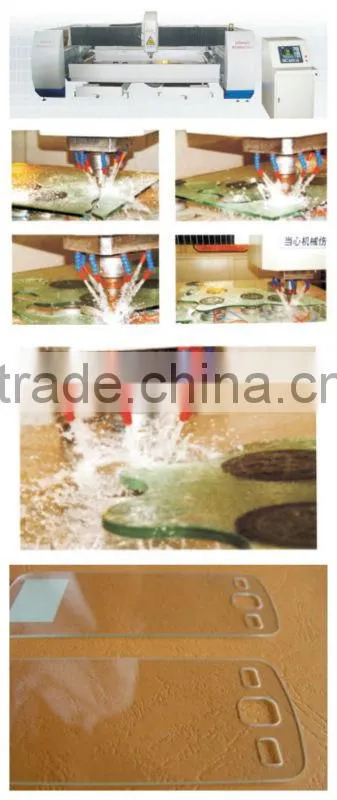

          This machine adopts CNC system to control axis X, Y, Z and the main axis of the engraving machine. There is automatic control on lubrication, vacuum, hydraulic pressure, and water supply, also, it has the function of protection and alarm. It is widely used in grinding, cutting, engraving, drilling and polishing glass and mirror.



          The whole procedure from pattern design to processing is controlled by computer. It can equip tool library and tool changing system according to requirements. Its advantages are: stationary system, high processing speed and low price.



 Technology parameters:



Model

LDKW4525

Table Size(mm)

4500×2500

Stroke of Axis x,y,z(mm)

4500×2500×250

Allocating Accuracy(X,Y,Z)

0.01×0.02×0.01

Repeatability(mm)

0.005×0.01×0.005

Velocity(Axis X.Y)(m/min)

15-35

Speed of Axis Z(m/min)

30

Rotating Speed of Main Spindle Speed(rpm)

0-9000

Main Spindle Power(KW)

7.5

Glass Thickness(mm)

2-30

Max.Diameter of Grinding Wheel(mm)

160

Total Power (kw)

28







Country of origin:   China



Delivery time:   Within 60 working days since the day we get payment information form our bank
