Help CenterAutomatic CNC Plasma Table Cutting Machine
Related Products
-
Granty Flame Plasma Cutting MachineUS$ 1,999 - 5,999MOQ: 1 Set -
CNC Flame and Plasma Cutting Machine With Fast Delivered,high Speed CuttingUS$ 3,999 - 16,999MOQ: 1 Set
-
CNC Plasma Cutting Machine for AluminumUS$ 1,999 - 5,999MOQ: 1 Set
-
Manual Sheet Metal Plasma Cutting Machine With CNC Control for 1500*3000US$ 1,000 - 10,000MOQ: 1 Piece
-
Desktop Plasma Cutting Machine for Iron/Stainless SteelUS$ 1,000 - 10,000MOQ: 1 Piece
1.Product description
Ecoseries Gantry CNC Cutting Machine is a new product which launched by us Honeybee in 2012.
It has features of compact size, lightweight, complete functions and big effective cutting size. It enjoys
all functions of traditional heavy duty gantry CNC cutting machines.
2.Features:
1. Practical oxy-fuel/plasma cutting tech. Under plasma cutting, it can finish corner speed control and THC control automatically.
2. Reliable design, plasma anti-interference, lightning protection, anti-surge.
3. Kerf compensation function, test if the compensation in the program reasonable and report for users choosing.
4. Break point recovery, auto power off point recovery, breakpoints auto memory.
5.Random section select or pierce point select function.
6. Adopt special small lines treatment function, widely applies in metal process, advertisement and iron craft industries.
7. Compatible with most program softwares such as IBE, FastCAM, etc.
8. English operaiton language, dynamic image display, amplify one to eight times, auto tracking for the moving point.
9. USB file transmission and software updating.
3.Techinical parameter
Model |
CUT-160 |
Type |
IGBT |
Rated input voltage(V) |
three phase AC380V±15% |
Rated frequency(HZ) |
50/60 |
Rated input capacity(KVA) |
30 |
Rated input current(A) |
45 |
No-load voltage(V) |
380 |
Output-current(A) |
40-160 |
Rated working voltage(V) |
144 |
Duty cycle(%) |
60 |
No-load loss(W) |
100 |
Efficiency(%) |
85 |
Power factor |
0.93 |
Net weight(KG) |
56.9 |
Gross weight(KG) |
74 |
Packing |
wooden |
Dimension of machine(mm) |
700×360×638 |
Dimension of packing (mm) |
760*450*735 |
Method of arc start |
uncontact |
Thickness of work piece(mm) |
steel:1-40 |
|
aluminum/copper:1-20 |
4.Pictures

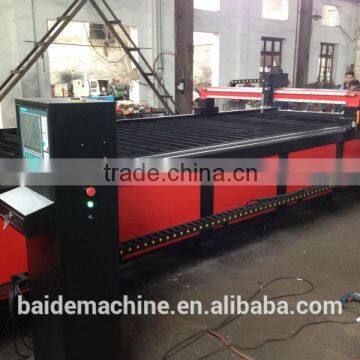

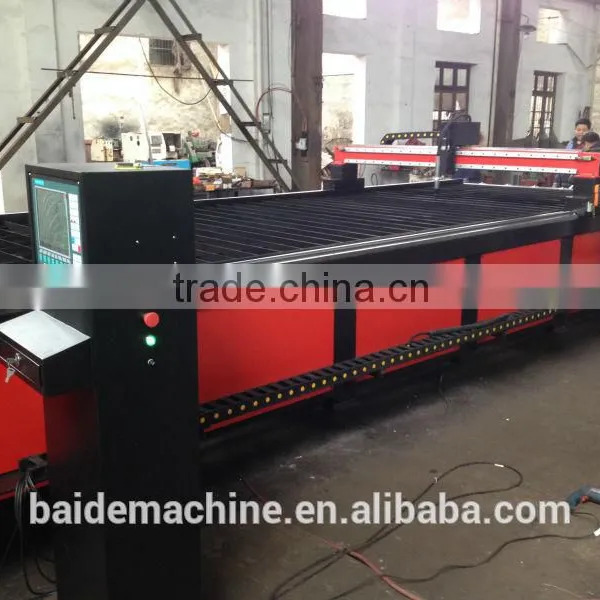

Machine details
Package
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
We supply 1 year Warranty and after 1 year, technical support will also be provide.Local support is also available
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
