1.Product description
Ecoseries Gantry CNC Cutting Machine is a new product which launched by us Honeybee in 2012.
It has features of compact size, lightweight, complete functions and big effective cutting size. It enjoys
all functions of traditional heavy duty gantry CNC cutting machines.
2.Features:
1. Practical oxy-fuel/plasma cutting tech. Under plasma cutting, it can finish corner speed control and THC control automatically.
2. Reliable design, plasma anti-interference, lightning protection, anti-surge.
3. Kerf compensation function, test if the compensation in the program reasonable and report for users choosing.
4. Break point recovery, auto power off point recovery, breakpoints auto memory.
5.Random section select or pierce point select function.
6. Adopt special small lines treatment function, widely applies in metal process, advertisement and iron craft industries.
7. Compatible with most program softwares such as IBE, FastCAM, etc.
8. English operaiton language, dynamic image display, amplify one to eight times, auto tracking for the moving point.
9. USB file transmission and software updating.
3.Techinical parameter
Model |
CUT-160 |
Type |
IGBT |
Rated input voltage(V) |
three phase AC380V±15% |
Rated frequency(HZ) |
50/60 |
Rated input capacity(KVA) |
30 |
Rated input current(A) |
45 |
No-load voltage(V) |
380 |
Output-current(A) |
40-160 |
Rated working voltage(V) |
144 |
Duty cycle(%) |
60 |
No-load loss(W) |
100 |
Efficiency(%) |
85 |
Power factor |
0.93 |
Net weight(KG) |
56.9 |
Gross weight(KG) |
74 |
Packing |
wooden |
Dimension of machine(mm) |
700×360×638 |
Dimension of packing (mm) |
760*450*735 |
Method of arc start |
uncontact |
Thickness of work piece(mm) |
steel:1-40 |
|
aluminum/copper:1-20 |
4.Configuration

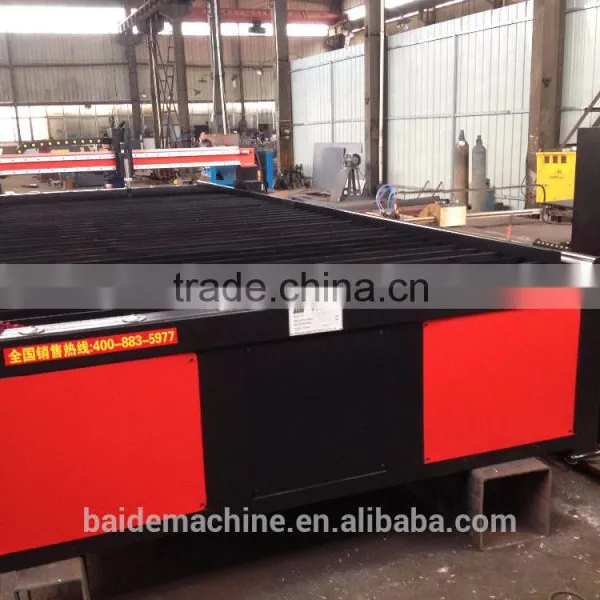

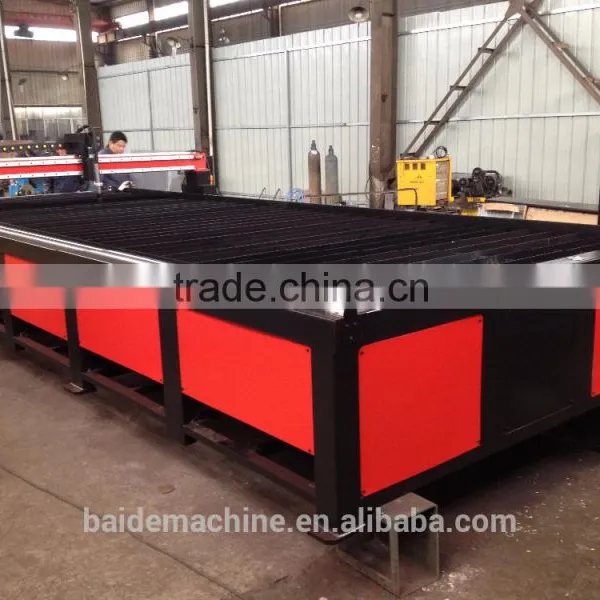

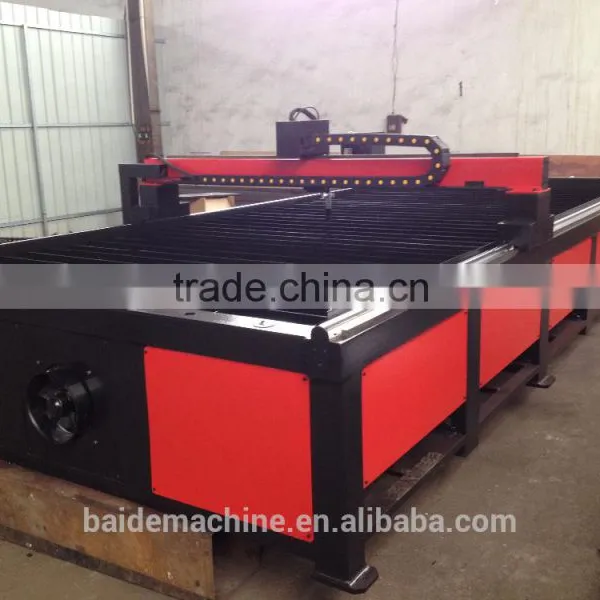

5.Real shot photos

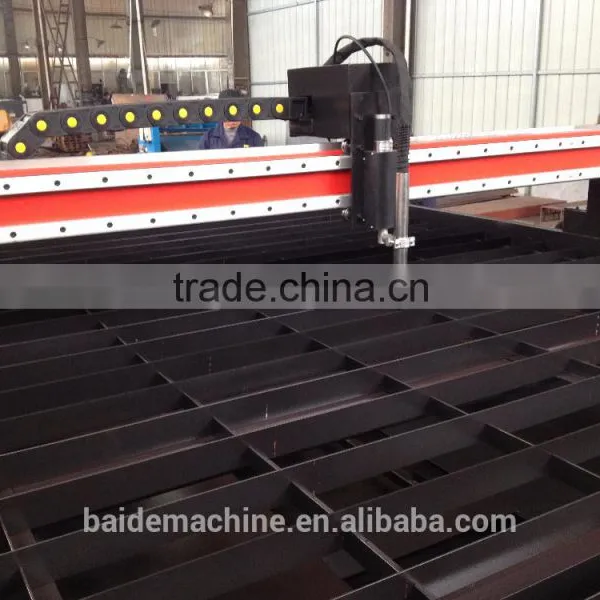

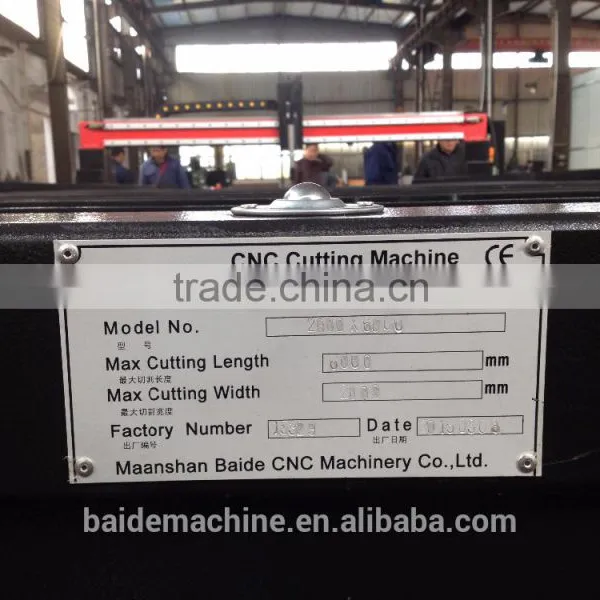

Machine details
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
Pre-Sale Services
- Recommond suitable pattern of equipment based on customer's requirements
- Provide detailed specifications and photos of the machines
- Develop practical solutions according to actual production status
- Facotry visiting is welcomed and arranged carefully
In-Sale Services
- Strict quality control to ensure the machines get high-quality and high-accuracily
- Provide all set of necessary documents
- Inform the production schedule, shipping time, arrival date on time
- Assist client for other issues
After-Sale Services
- Technical engineers are available for installation debugging and training
- Provide life-long services for any technical questions
- 12-month quality warranty frees you from worries
- Sound tracking service system gives you happy shopping and users experience
Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine
and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic
press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing
beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC
press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine,
hole punchingmachine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length
line, slitting line, duct manufacture machines, etc.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14
sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a
fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.
