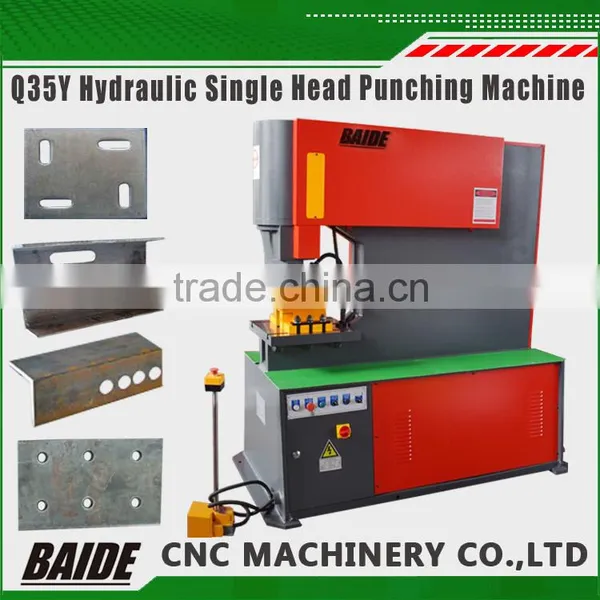

Q35Y Series Hydraulic Ironworker
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
baide
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Mutiple Functions Ironworker Hydraulic Ironworker for SaleNegotiableMOQ: 1 Set -
Punching And Shearing MachineNegotiableMOQ: 1 Set
-
China Universal Hydraulic IronworkerNegotiableMOQ: 1 Set
-
Q35Y Series Multi Function Hydraulic Ironworkers Hydraulic Metal Plate IronworkerNegotiableMOQ: 1 Set
-
Hydraulic Machinery Ironworker With CENegotiableMOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
baide
Model Number
Q35Y
Voltage
220v or 380v or 420
Rated Power
as requirement
Dimension(L*W*H)
as requirement
Weight
900kg
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Overseas third-party support available
Q35Y series Hydraulic ironworker
Technical parameter:
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Pressure(Ton) | 55 | 75 | 110 | 140 |
| Max.cutting thickness(mm) | 16 | 20 | 25 | 30 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 7° | 8° | 8° | 8° |
| Sheraing size of one stroke(mm) | 16*250 | 20*330 | 25*330 | 30*355 |
| 8*400 | 10*480 | 16*600 | 20*600 | |
| Ram stroks(mm) | 80 | 80 | 80 | 80 |
| Number of strokes(cpm) | 8 | 8 | 6 | 6 |
| Throat depth(mm) | 300 | 355 | 400 | 600 |
| Punching thickness(mm) | 16 | 20 | 25 | 26 |
| Max.Punching diameter(mm) | 25 | 30 | 35 | 38 |
| Power of main motor(kw) | 4 | 5.5 | 7.5 | 11 |
| Dimensions(L*W*H)mm | 1640*730*1770 | 1860*800*1900 | 2355*960*2090 | 2680*1040*2300 |
| Weight of machine(kg) | 1600 | 2000 | 4800 | 6800 |
