NC feeder with shearing machine
- 100 Set / Sets per Month
- Shanghai
- T/T
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
- small detachable plasma beam cutting machinery
Product Details
Condition: | New | Place of Origin: | Anhui, China | Brand Name: | Baide brand |
Voltage: | 220V,380V,440V,according to clients country | Certification: | CE | Warranty: | one year warranty |
After-sales Service Provided: | Overseas third-party support available |
Product Description
1> Main configuration:
1.effective stroke :3000mm
2.CNC lathebed:The lathebed will have stressrelieve treatment after welding, high rigid ity,platform with special design of strength,the structure is compact,operate smoothly.
3.ball screw: the ball screw choose the Taiwan TBI precision screw that ensure the high precision and speed of processing .
4.guide: Taiwan TBI double precision linear guide ensure high precision of operating,and make it life longer.
5.motor/driver:Mandarin AC servomotor,motor power is 2.2kw.
6.CNC system: Taiwan Taida,NC feeder dedicated system,it can realize antishock and antiinterference,enabling sheet automatic resetting,it also can enable onebutton operation,part processing,the piece can be counting displayed on the screen,with function of equipment running,operating is simple ,and is easy to understand.
7.motor cable:It is equipped with shield cable,can prevent the interference effectively ,the moving part cable adopted drag chain protection.
8.Coupling:Starshape zero back lash coupling ensure accuracy of transmission and correction .It also guarantee the machine durable and high correction coefficient.
9.Clamp:Manual pneumatic dual use clamp
10.Work table:Using universal sphere work table makes work piece moving flexibility and prevent scratch.It also makes the sheet running resisted.
11.Centralization lubrication: guide rail and lead screw are centralization lubrication.The lubricating oil directly into all lubricating points which reduce labor intensity and the friction of moving pair,and improve the service life.
2> Main parameters
Number | Name | Unit | Specification |
1 | Feed precision | mm | ±0.10
|
2 | Max feed speed | m/min | 30 |
3 | Feeding speed setting |
| Stepless |
4 | Max processing sheet metal size | mm | 400*3000 |
5 | Thickness of processing sheet metal | mm | ≤10mm |
6 | Clamp quantity
| set | 2 |
7 | Total power |
| 2.2Kw |
8 | Control axis | set | 1 |
9 | Work table |
| universal sphere |
10 | Gas source | Mpa | 0.5~0.6 |
11 | Low voltage apparatus |
| SIEMENS |
12 | Proximity switch |
| SIEMENS |

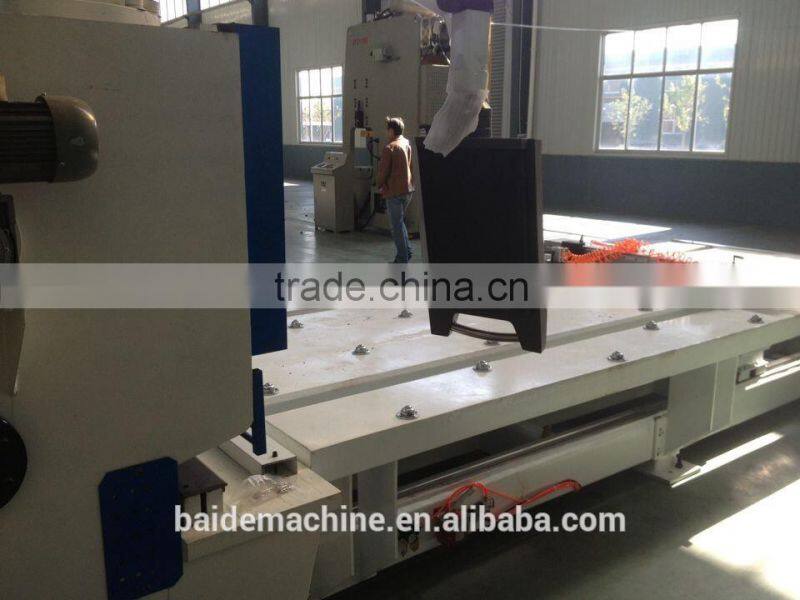

3.Detailed shot photos:

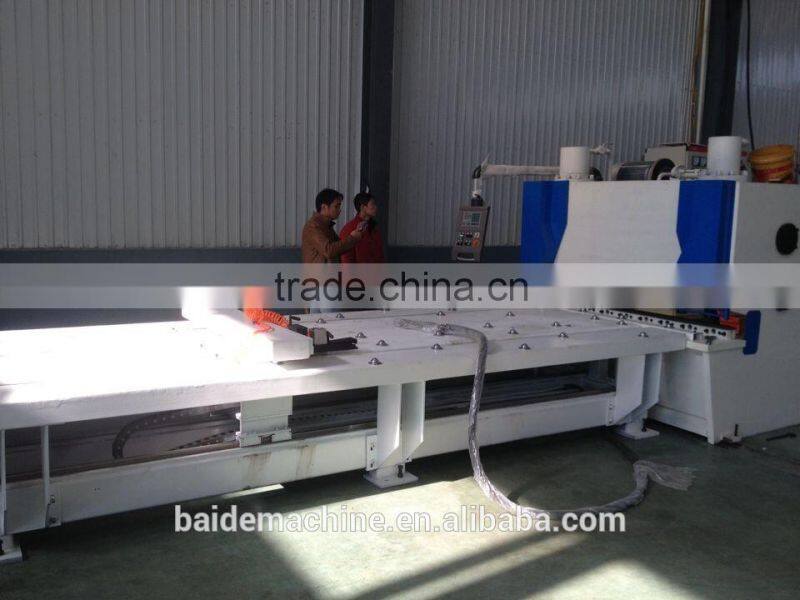

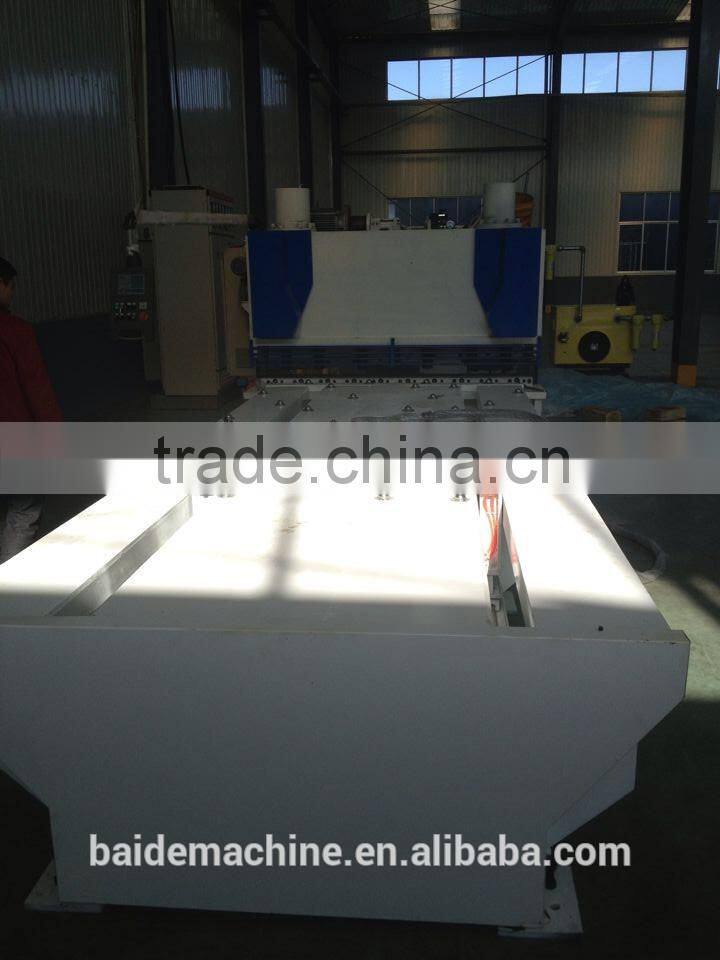

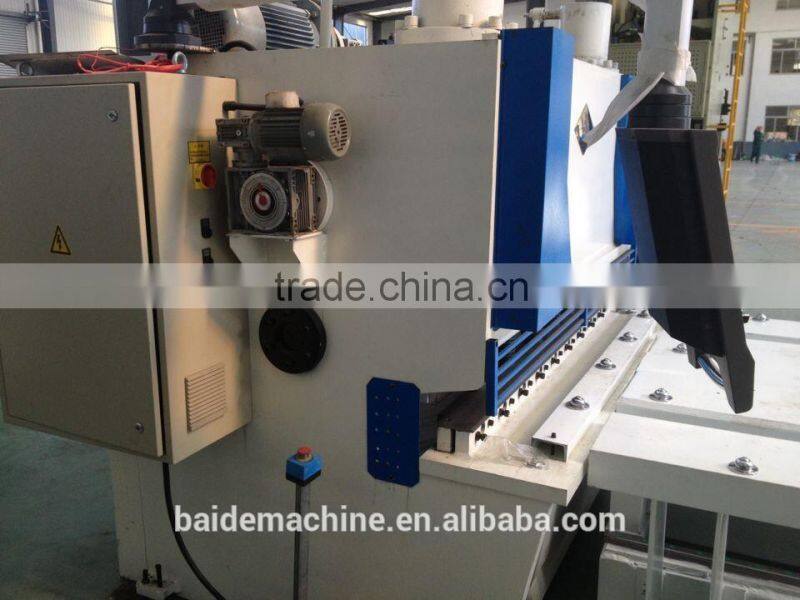

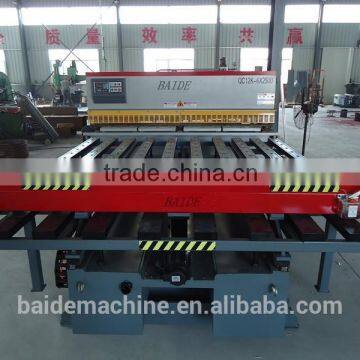

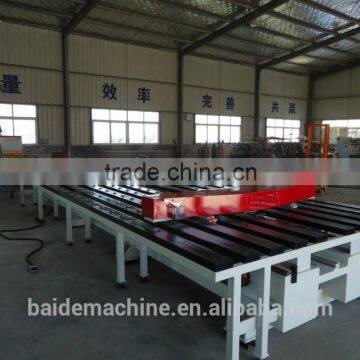

Shearing machine with feeder machine

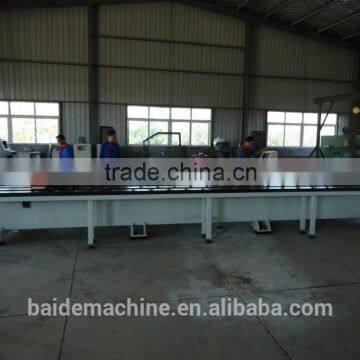

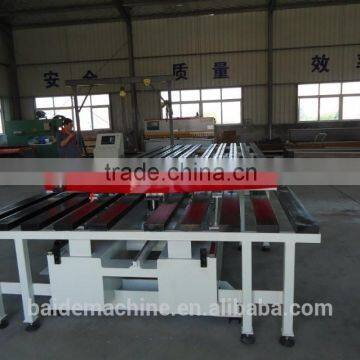

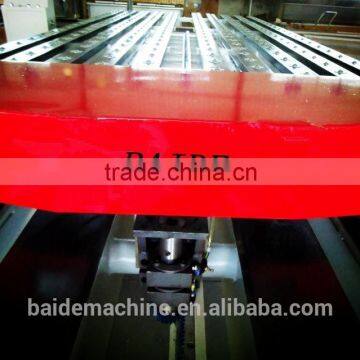

Feeder machine
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
Pre-Sale Services
- Recommond suitable pattern of equipment based on customer's requirements
- Provide detailed specifications and photos of the machines
- Develop practical solutions according to actual production status
- Facotry visiting is welcomed and arranged carefully
In-Sale Services
- Strict quality control to ensure the machines get high-quality and high-accuracily
- Provide all set of necessary documents
- Inform the production schedule, shipping time, arrival date on time
- Assist client for other issues
After-Sale Services
- Technical engineers are available for installation debugging and training
- Provide life-long services for any technical questions
- 12-month quality warranty frees you from worries
- Sound tracking service system gives you happy shopping and users experience
Foreign visitor:
Factory:
Process:
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
