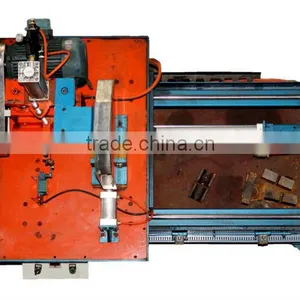

Special Grinding Wheel Stainless steel pipe slitting/cutting machine
Main technical parameters of stainless steel pipe cutting machine
Model QG-76S
Dimension(LXWXH) 2180X1000X1450
Max. diameter of abrasion wheel O.D350
Max. Diameter of round pipe O.D76
Max. Diameter of square pipe 50*50
Motor power 3KW
The main features of stainless steel pipe cutting machine
1:The cutting cross face of stainless steel pipe is flat, smooth and burr-free, don't need to process again
2:The cutting saw wheel is special purpose abrasion wheel, which needn’t to grinding sharp, can continuously use until it become useless.
3:High cutting speed, high efficiency, well match with the various speed of pipe making machine.
4:The machine does not need to adjust, simple operation, just turned on to use, very convenient.
5:The special abrasion wheel is cheap enough, low usage cost, the cut off cost under USD 0.0035 for each steel pipe
1)provide the technical paper material for installment,maintenance,operation and so on;
2)provide equipment's key element bill of materials;
3)provide technical training for the equipment operation attendants;
4)provide the installment instruction and the debugging work of the equipment;
5)provide the perpetual paid service after the quality guarantee period.
1Established in 1993.More than 20years experience in stainless steel pipe making machinery.
2)Sanke Company has established a high-tech enterprise in Hunan Province.
3)Gained many state patents and honorary certificate
4)Passed GB/TISO9001-2000 quality management certification.
5)Obtained national independent import & export right since 2004.
Q.What are the types of stianless steel pipe making machine?
Stainless steel pipe welder equipment is classified by use: Industrail stainless steel pipe making machine, Decorative stainless steel pipe making machine.
Q.What are the supporting part of stainless steel pipe making machine?
1. Decoiler: According to the specifications of the pipe to buy steel strip,put the coil up material on the shelf,introduction of forming part.
2. Forming Part: Using the scroll welded pipe dies.
3. Welder: Welding.
4. Grinding Part: Weld grinding.
5. Straightening and Sizing Part: Fine-tuning pipe diameter.
6. Cutting Part: Metal hydraulic cutting or grinding wheel cutting.
7. Length fixed: Automatic defining material.
Q.What are the features of Chenzhou Sanke stainless steel pipe making machine ?
ChenzhouSanke stainless steel pipe welder equiment is sturdy and durable, high precision, full automation, easy operation, continuous production, high efficiency, less waste of materials, the rate of finished product is high, low production cost.
Q.Why steel pipe leakage welding?
1. Welding torch position is too high;
2. Welding torch around is not aligned;
3. Current is too high to melt;
4. Welding current is too small is not on;
5. No argon welding fire do not focus; (Replace argon)
6. Mould and steel with water or oil, caused by welding fire is not focused.(With Nitrocellulose lacquer thinner, turpentine or toluene cleaning steel strip)
Q.What are the production of stainless steel pipe making machine and accessories needed?
A whole set of stainless steel pipe welder equipment including, pipe making machine, welder, mould(die/roller), round pipe polishing machine/square pipe polishing machine, polishing material, steel strip, etc.
