Round pipe polishing machine from china top manufacture
Good quality,high efficiency,long service life,excellent performance and stability.
The round pipe polishing machine specifications:
1) Quantity of polishing head: 8-head
2) Diameter range of polished pipe: 50.8- 114mm
3) Max. length of polished steel: 6m,
It can also produce according to your requirements
4) Charge speed of stainless steel pipe: 1 ~ 20m/min
5) Diameter of main polishing head's axis: 36mm
6) Motor power of polishing head: 5.5kW available as requested)
7) Charge motor power: stepless speed regulator, 3kw
8) Rotational speed of polishing head: 2,300r/min
9) Outside diameter of accessory rag wheel: 320mm
10) Roughness of polished surface: Ra0.8
11) Equipment dimension (LWH): 17150*1450*1230mm
The technical parameters of Round pipe polishing machine from china top manufacture
| Model | PG6 | PG8 | PG10 | DPG6 | DPG8 | DPG10 |
| Pipe diameter(mm) | Φ12- Φ76.2 | Φ50.8- Φ114 | ||||
| Polishing pipe length(m) | Normal 6m(It can be lengthened appropriately according to customers' requirements) | |||||
| Number of polishing heads | 6 | 8 | 10 | 6 | 8 | 10 |
| Polishing head spindle diameter(mm) | Φ36 | |||||
| The feeding speed(m/min) | 1-20 | |||||
| Grinding head motor power(kw) | 4kw-4 | 5.5kw-4 | ||||
| Roughness after polished(μm) | 0.8 | |||||
| The diameter of polishing wheel equipped(mm) | Φ320 | |||||
The advantages of Round pipe polishing machine from china top manufacture
1. Our this Round pipe polishing machine are manufactured from finest materials. Steady, durable and long lifetime.
2. Cost effective, high return of investment.
3. Automatic control, safe and easy to operate.
4.Low noice.

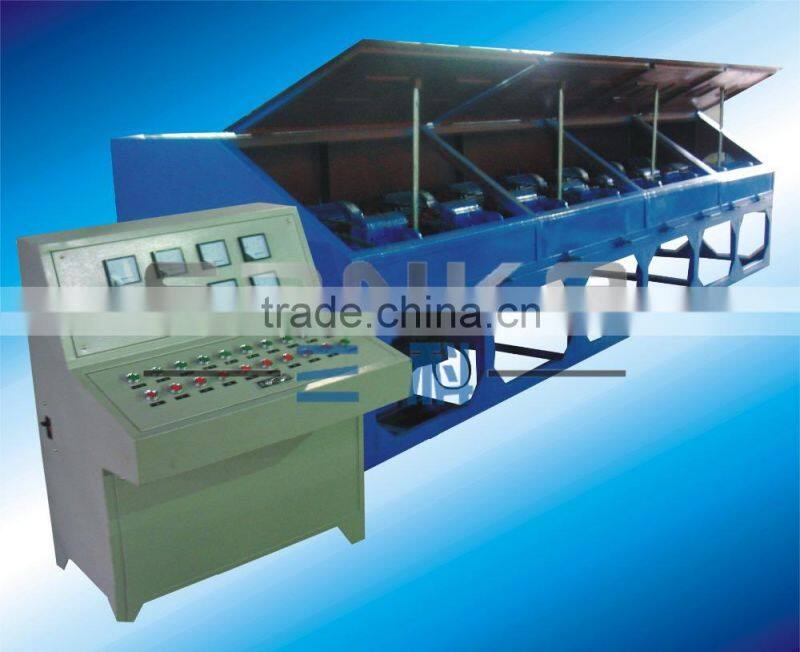

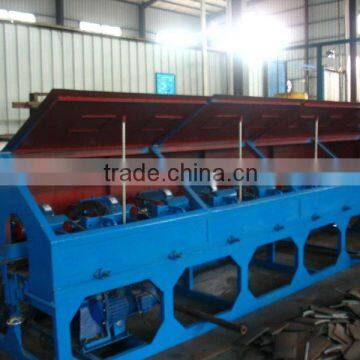

The pictures of Round pipe polishing machine from china top manufacture
After-sales Service
1.Send engineers to make the foundation and install the machine until it works out qualified pipes.
2.Provide skilled master to guide your workers to operate the machine,even work at your site if needed.
3.Provide the technical documents about machinery installation,maintenance,operation and so on.
4.Any problem during production process contact us directly.We will solve it as soon as possible.
Company Information
we have special technology on Welded pipe making machine and Round pipe polishing machine with more than 20 years design and reserch experience.
FAQ
Q:What is your company product?
A:Our company is special on Welded pipe making machine , Round pipe polishing machine from china top manufacture , embossing machine,etc.
Q:How to trust your company?
A:Because we are professional and enjoyed a good reputation both at home and abroad.
Q:How to guarantee your quality?
A:We have a strict quality management systerm to check every order carefully.
Q:How can i get more details about products?
A:We will offer you best price referring to your detail request,so please kindly inform us of the material, thickness,size (length,width) color and other requirments you prefer,special offer will be given.If you need any information,we can give you our suggestions.
