12v24v to 3.3v3.7v4.2v5v6v7.5v9v Dc-dc Step Down Converter,dc-dc Buck Module, 3.3-9v Car Power Supply

Name: 12v24v to 3.3v3.7v4.2v5v6v7.5v9v Dc-dc Step Down Converter,dc-dc Buck Module, 3.3-9v Car Power Supply
Brand: fulree
SKU: 106227687

US$ 6 - 10 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

fulree

Model Number:

240505ML

Shenzhen Fulree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/HONGKONG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name fulree

Model Number 240505ML

Output Power 1 - 50W

Output Type Single

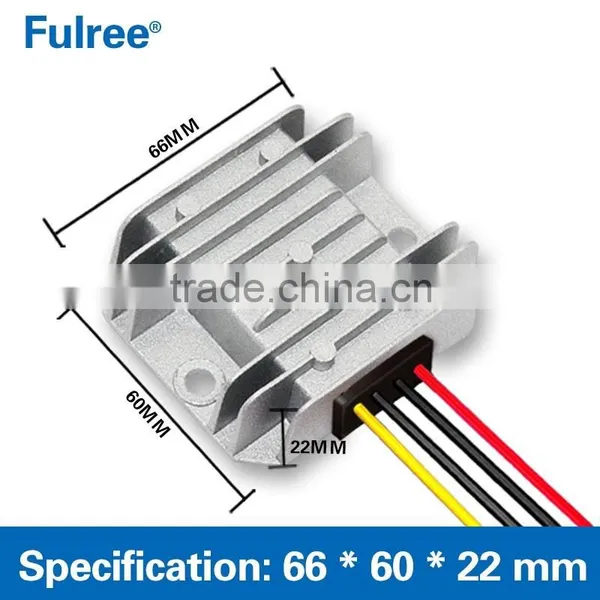

Size 66*60*22mm

Weight 100G

Input Voltage 8-35V

Output Voltage 3.3V3.7V4.2V5V6V7.5V9V OPTIONAL

Type DC/DC Converters

Output Frequency 0-400HZ

Output Current 5A MAX

12v24v to 3.3v3.7v4.2v5v6v7.5v9v dc-dc step down converter,dc-dc buck module, 3.3-9v car power supply

Model	240505ML
Input rated voltage	12V24V DC
Input voltage range	8-35V DC( (minimum pressure difference:3V)
Efficiency	93% (half load), 91% (full load)
Output voltage	5V
Output current	5A MAX
Output rated power	25W
Output peak power	40W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	280G
Product size	666022MM
Other output voltage option for 48V to 24V	3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V(Pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
