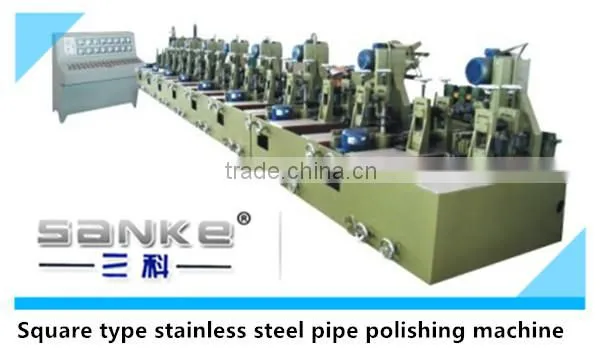

24heads square stainless steel pipe polishing machine
1.Description of square stainless steel pipe polishing machine:
The machine is not only suitable for the surface polishing of various metals with square and retangular cross sections,
but also for the polishing of metals with odd shaped cross sections.
The machine consists of four parts,namely a main machine,a feeding device,a discharging device and a controul system.
The square pipe polishing machine can be divided into common polishing machines(FPG type)and enlarged polishing machines(DFPG type)
according to the polishing range,and also can be divided into 24-head,28-head,32-head polishing machines according to the number of polishing heads.
The surface roughness of the material polished by the machine can reach Ra0.8μm.

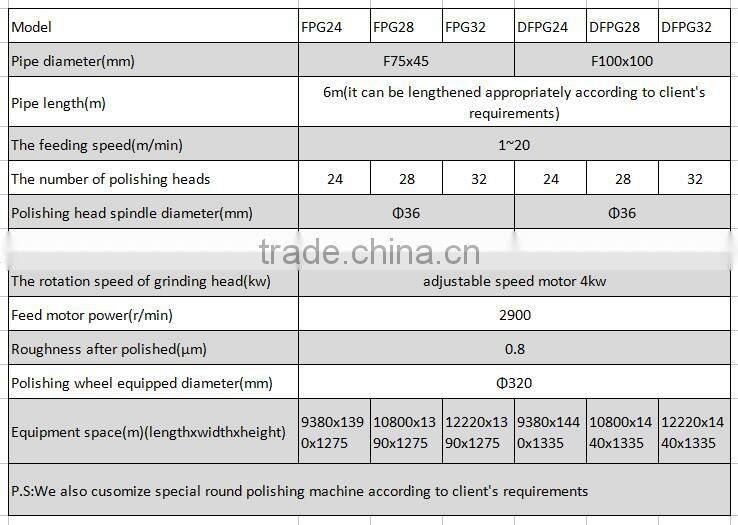

2.Parameters of square stainless steel pipe making machine
3.Components of square stainless steel pipe polishing machine
Main machine,feeding device,discharging device and a control system.
1)provide the technical paper material for installment,maintenance,operation and so on;
2)provide equipment's key element bill of materials;
3)provide technical training for the equipment operation attendants;
4)provide the installment instruction and the debugging work of the equipment;
5)provide the perpetual paid service after the quality guarantee period.
1Established in 1993.More than 20years experience in stainless steel pipe making machinery.
2)Sanke Company has established a high-tech enterprise in Hunan Province.
3)Gained many state patents and honorary certificate
4)Passed GB/TISO9001-2000 quality management certification.
5)Obtained national independent import & export right since 2004.
Q.What are the types of stianless steel pipe making machine?
Stainless steel pipe welder equipment is classified by use: Industrail stainless steel pipe making machine, Decorative stainless steel pipe making machine.
Q.What are the supporting part of stainless steel pipe making machine?
1. Decoiler: According to the specifications of the pipe to buy steel strip,put the coil up material on the shelf,introduction of forming part.
2. Forming Part: Using the scroll welded pipe dies.
3. Welder: Welding.
4. Grinding Part: Weld grinding.
5. Straightening and Sizing Part: Fine-tuning pipe diameter.
6. Cutting Part: Metal hydraulic cutting or grinding wheel cutting.
7. Length fixed: Automatic defining material.
Q.What are the features of Chenzhou Sanke stainless steel pipe making machine ?
Chenzhou Sanke stainless steel pipe welder equiment is sturdy and durable, high precision, full automation, easy operation, continuous production, high efficiency, less waste of materials, the rate of finished product is high, low production cost.
Q.Why steel pipe leakage welding?
1. Welding torch position is too high;
2. Welding torch around is not aligned;
3. Current is too high to melt;
4. Welding current is too small is not on;
5. No argon welding fire do not focus; (Replace argon)
6. Mould and steel with water or oil, caused by welding fire is not focused.(With Nitrocellulose lacquer thinner, turpentine or toluene cleaning steel strip)
Q.What are the production of stainless steel pipe making machine and accessories needed?
A whole set of stainless steel pipe welder equipment including, pipe making machine, welder, mould(die/roller), round pipe polishing machine/square pipe polishing machine, polishing material, steel strip, etc.
