Home > Electrical & Electronics > Electric Motor > AC Motor > ML 2.2kw Induction Motor 100% Copper

ML 2.2kw Induction Motor 100% Copper

Name: ML 2.2kw Induction Motor 100% Copper
Brand: UDEE/DaiTai
SKU: 106221775
Availability: InStock

ML 2.2kw Induction Motor 100% Copper thumbnail-1

ML 2.2kw Induction Motor 100% Copper thumbnail-2

ML 2.2kw Induction Motor 100% Copper photo-1

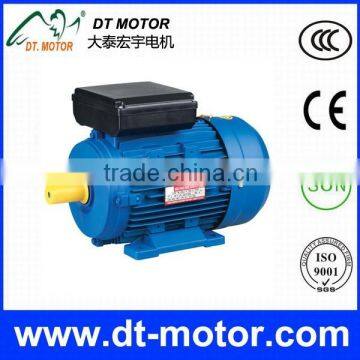

ML 2.2kw Induction Motor 100% Copper photo-2

US$ 29 - 500 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Brand Name:

UDEE/DaiTai

Model Number:

Type:

Induction Motor

Contact Supplier Request Quote Chat Now

Fujian DT Electrical Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name UDEE/DaiTai

Model Number ML

Type Induction Motor

Frequency 50HZ/60HZ

Output Power 2.2kw

Protect Feature Totally Enclosed

Phase Single-phase

Certification CCC, CE, ROHS

AC Voltage Other, 220V

Place of Origin Fujian, China

Efficiency Other, IE1 IE2

ML 2.2kw induction motor 100% copper

PHOTO OF PRODUCT:

Product Description

INTRODUCTION:

ML series water pump motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air compressors, pumps, fans, medical apparatus and instruments, and many other small machines.

These single phase induction motors are conformed to IEC standard

Be make of selected quality materials,latest design in entirety

Good performance,low noise,little vibration,and safety and reliable operation

Nice appearance,light weight

Be maintained very conveniently,simple construction

Lower starting torque,0.3-0.7times more than the rated torque

Be used in multitude of application where the higher starting torque is demanded,such as

Home electric appliances, pump,fans and recording meters,etc.

Operating Conditions:

1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141

MOTOR FEATURES

Utilise IP54 enclosures, IP55 on request

Multiple feet locations

Aluminium frame, end shields and base

High strength cable gland

Shaft key and protector supplied

Superior paint finish

Motors made to heavy duty service factors

Can be made with stainless steel shaft

Motors made for continuous S1 duty

Utilise vacuum impregnated class B or class F insulation

Others insulation in request

High performance and efficiency

OVERALL AND MOUNTING DATA:

Model	Output		Current	Power	Eff	Speed	Tstart/Tn	Ist/In	Tmax/Tn
Model	KW	HP	(A)	Factor	(%)	(r/min)	Tstart/Tn	Ist/In	Tmax/Tn
ML711-2	0.37	0.5	2.6	0.95	68	2760	2.2	6.5	1.7
ML712-2	0.55	0.75	3.71	0.95	71	2760	2.2	6.5	1.7
ML801-2	0.75	1	4.92	0.95	73	2780	2.2	6.5	1.7
ML802-2	1.1	1.5	7.02	0.95	75	2780	2.2	6.5	1.7
ML90S-2	1.5	2	9.32	0.95	77	2800	2.2	6.5	1.7
ML90L-2	2.2	3	13	0.95	78	2800	2.2	6.5	1.7
ML100L-2	3	4	18.2	0.95	79	2820	2	7	1.7
ML112M-2	3.7	5	22.1	0.95	80	2820	2	7	1.7
ML711-4	0.25	0.33	1.9	0.95	63	1360	2.2	6.5	1.7
ML712-4	0.37	0.5	2.64	0.95	67	1360	2.2	6.5	1.7
ML801-4	0.55	0.75	3.76	0.95	70	1380	2.2	6.5	1.7
ML802-4	0.75	1	4.98	0.95	72	1380	2.2	6.5	1.7
ML90S-4	1.1	1.5	7.11	0.95	74	1400	2.2	6.5	1.7
ML90L-4	1.5	2	9.44	0.95	76	1400	2.2	6.5	1.7
ML100L1-4	2.2	3	13.7	0.95	77	1410	2	7	1.7
ML100L2-4	3	4	18.4	0.95	78	1420	2	7	1.7
ML112M-4	3.7	5	22.4	0.95	79	1420	2	7	1.7

HOW TO MAKE MOTOR

1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting

2. 100% copper winding and inserting stator (manual and semi-automatically)

3. Stator Vacuum impregnation and drying

4. CNC machining motor shaft, frame, end shields, etc

5. Professional workman inspecting spare parts every processing

6. Electric motor assembly product line

7. Electric motor will 100% test before painting.

8. Electric motor spray-paint on motor painting product line

9. Electric motor will 100% check again before packing.

An electric motor from material to finished motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.
