Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light

Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light thumbnail-1
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light thumbnail-2
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light thumbnail-3
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light thumbnail-4
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light thumbnail-5
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light thumbnail-6
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light photo-1
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light photo-2
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light photo-3
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light photo-4
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light photo-5
Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light photo-6
US$ 100 - 230 MOQ: 50 Sets
Key Specifications
Get Latest Price
Light Source:
Fluorescent
Input Voltage(V):
100-277
Lamp Power(W):
100
Contact Supplier Request Quote Chat Now
Shenzhen Aroma Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source Fluorescent
Input Voltage(V) 100-277
Lamp Power(W) 100
Lamp Luminous Flux(lm) 18000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 35000
Lamp Body Material Aluminum Alloy
IP Rating IP54
Certification CCC, CE, ETL, LVD, VDE
Brand Name ARM
Base Type E17
Place of Origin Guangdong, China
Model Number ARM-HB-4411M20-200W

   Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light

Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light

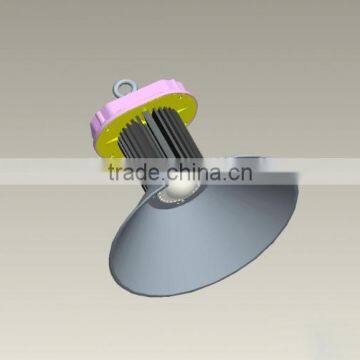

Explosive view

Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Product Description



Super smart product design, can be installed in any micro or closed equipments, not afraid of vibration, without filament or glass shell, no need to worry light source crazing.

Safe and reliable, surface temperature ≤60 °C, no UV or IR radiation, harmless to human body

Energy saving, economic, Eco-friendly.

International brand LED chip, high stable driver, life span over 50,000hrs



Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light

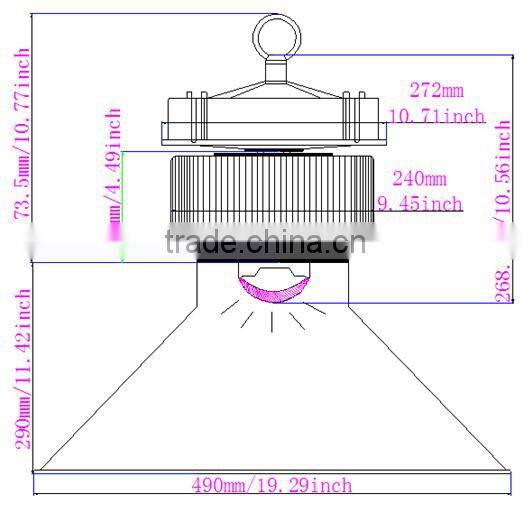

Dimension

 Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Technical Data



Item No.

 ARM-HB-4411M20-200W

Input Voltage

AC 100-277V / 50-60Hz

Working Voltage

DC30-36V

LED Type

SMD LED

Color Temperature (CCT)

2700-3500K, 4500-5500K, 6000-7000K

Beam Angle of Reflector (Optional)

45°/ 90°/120°

Color Rendering Index (CRI)

>70

Lamp Efficiency

>90%

LED Luminous Efficiency

100-105lm/w

Power Factor (PF)

>0.95

Total Harmonic Distortion (THD)

≤9%

Illuminance Uniformity

>0.7

Light Distribution

Symmetrical / Round Light Area

LED Junction Temperature

≤70℃

Waterproof Performance

IP 54

Average Lifespan

35,000hrs

Net Weight (without Reflector)

7.2kg

Certificate

CE / ROHS / SAA / UL





Optional Lamp Cover






Photometric Diagram

 Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Packing Information



Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Application



LED High Bay is more and more popular for indoor lighting, they can use widely in these places below:Shop, warehouse, GYM, School, etc.

Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Installation

Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Step 1: Connect the metal ring to the LED transformer cover, and tighten the screw, then install the LED high bay light to the right position.



Step 2: Loosen the 4 pieces screws in the Heat Sink, then fasten the screws after put the AL reflector into the right position.



Step 3: Connect LED high bay light to the power and lighten it, please distinguish the wires correctly.



             1. Brown: L (Live wire)



             2. Blue: N (Null wire)



             3. Yellow: G (Ground wire)



Warning:



Please check the components before Installation, and read the User Manual before installation.



   1. The installation must be implemented by qualified electrician.



   2. Sulphides, corrosive and dissolve chemicals will damage the Lamp fixture, even the LED will be broken.



   3. Working temperature: -20℃-45℃, the lifespan will be shorten if the working temperature beyond this range.



   4. Please ensure the power is off, and the lamp fixture is cooled down sufficiently before installation.



   5. Please ventilate the LED high bay light, and comply with local Fire Precautions Legislation.



AROMA Instruction



Aroma Technology Co.,Ltd was established in 2014, as a professional LED lighting manufacturers and LED lighting suppliers in China, we are specialized in research, development, manufacture and sales of LED panel light, LED down light, led floodlight and so on. Currently there are over 200 employees and a fabrication area of more than 6,000 square meters.



Aroma Technology Co.,Ltd is also a company focus on commercial lighting and outdoor lighting. all of our led panel light are with CE approval and ROHS compliance, part of the products gain FCC,PSE certification, and UL is pending .



As excellent quality, we provide all of our led panel light 3 years warranty.

Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light



Aluminum Die Casting Housing High Power Indusrtail IP54 Waterproof 200W LED High Bay LED Light
