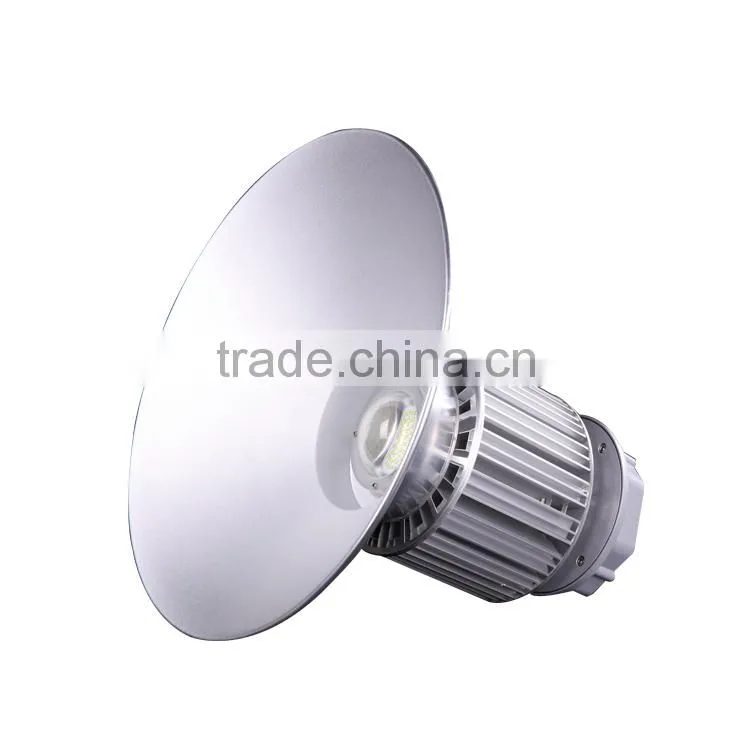

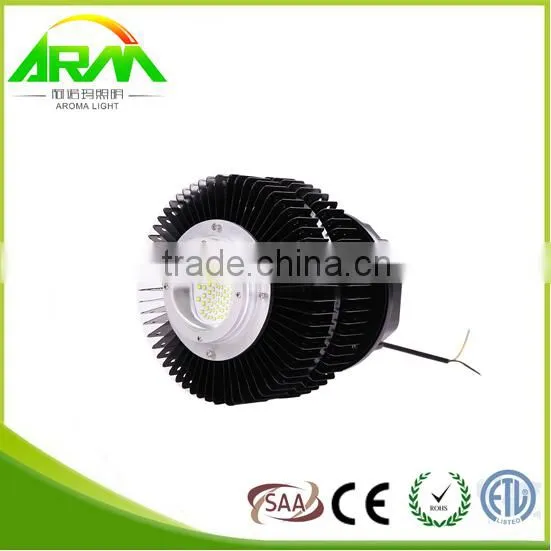

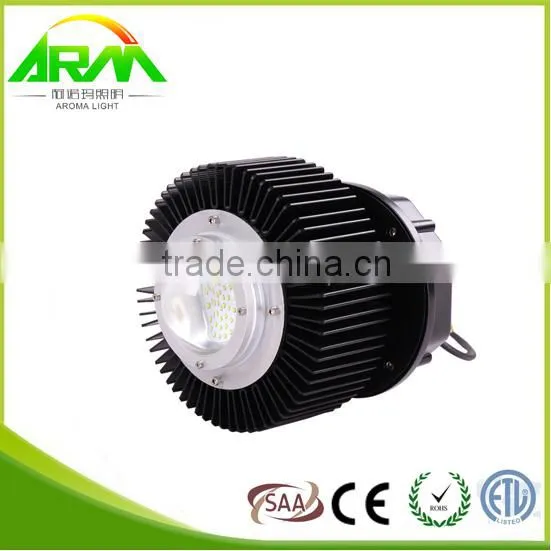

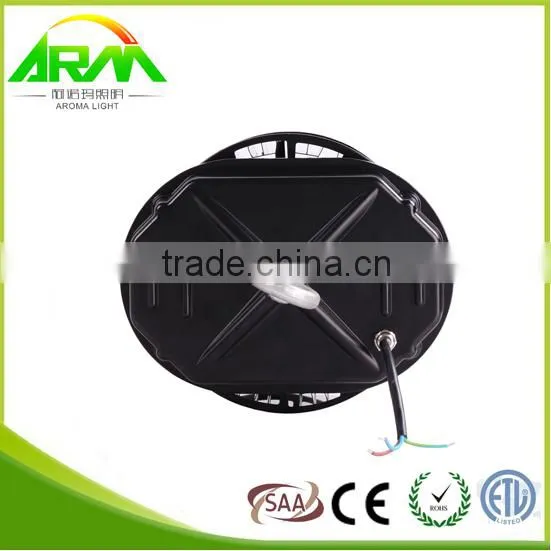

CE RoHs TUV Listed IP54 Waterproof High Lumen 100W High Bay LED Parking Garage Light

CE RoHs TUV Listed IP54 Waterproof High Lumen 100W High Bay LED Parking Garage Light

Product Description

1. High lumen efficiency up to100lm/w

2. Eco-friendly, no hazardous substance

3. CE & ROHS standard, UL version is available

4. Long lifespan 35000 hours, 7.9 years if 12hrs/day working

5. High thermal conductivity housing aluminum to assure strong dissipation

6. Stable performance external constant-current driver, failure rate lower than 2‰

Dimension

Technical Data

Optional Lamp Cover

Photometric Diagram

Packing Information

Application

LED High Bay is more and more popular for indoor lighting, they can use widely in these places below:Shop, warehouse, GYM, School, etc.

Installation

Step 1: Connect the metal ring to the LED transformer cover, and tighten the screw, then install the LED high bay light to the right position.

Step 2: Loosen the 4 pieces screws in the Heat Sink, then fasten the screws after put the AL reflector into the right position.

Step 3: Connect LED high bay light to the power and lighten it, please distinguish the wires correctly.

             1. Brown: L (Live wire)

             2. Blue: N (Null wire)

             3. Yellow: G (Ground wire)

Warning:

 Please check the components before Installation, and read the User Manual before installation.

   1. The installation must be implemented by qualified electrician.

   2. Sulphides, corrosive and dissolve chemicals will damage the Lamp fixture, even the LED will be broken.

   3. Working temperature: -20℃-45℃, the lifespan will be shorten if the working temperature beyond this range.

   4. Please ensure the power is off, and the lamp fixture is cooled down sufficiently before installation.

   5. Please ventilate the LED high bay light, and comply with local Fire Precautions Legislation.

AROMA Instruction

Aroma Technology Co.,Ltd was established in 2014, as a professional LED lighting manufacturers and LED lighting suppliers in China, we are specialized in research, development, manufacture and sales of LED panel light, LED down light, led floodlight and so on. Currently there are over 200 employees and a fabrication area of more than 6,000 square meters.

Aroma Technology Co.,Ltd is also a company focus on commercial lighting and outdoor lighting. all of our led panel light are with CE approval and ROHS compliance, part of the products gain FCC,PSE certification, and UL is pending .

As excellent quality, we provide all of our led panel light 3 years warranty.
