Home > Products > LED high bay light > Newest High Quality 150w Led High Bay Lighting ce 150w High Bay 150w Dimmable Led High Bay Light

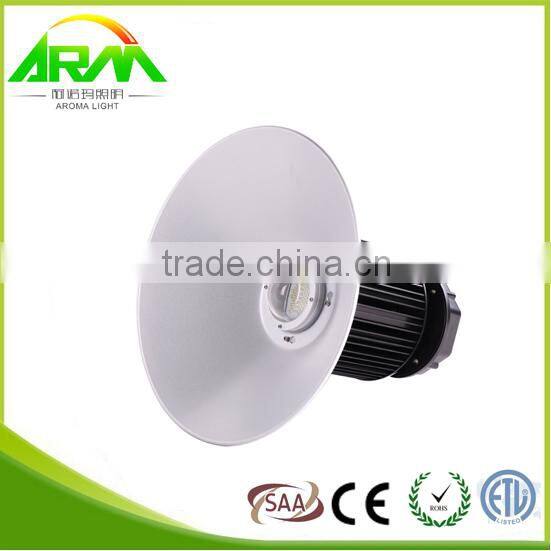

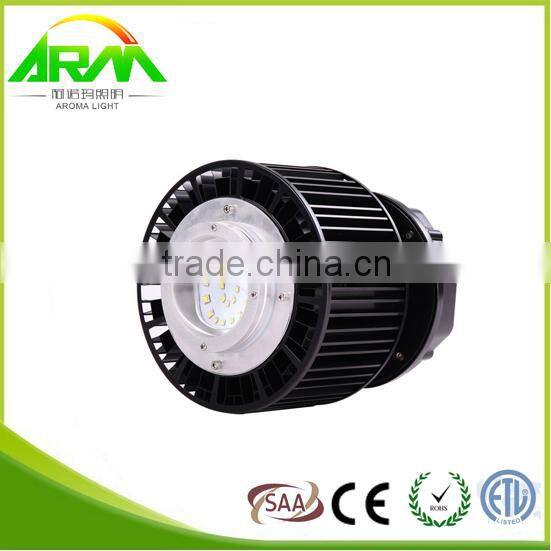

Newest High Quality 150w Led High Bay Lighting ce 150w High Bay 150w Dimmable Led High Bay Light
US$ 75 - 150
/ Piece
2 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
Fin Led High Bay Light Led Led Highbay Light Fin High Bay Light
-
Ip65 Waterproof Led High Bay Light Cob Led High Bay Light 200w Led Warehouse Lamp
-
Good Price of Ledhigh Bay Light High Bay Led Pure White Led High Bay Lights 150w
-
100 Watt Led High Bay High Power Warehouse Led High Bay Lights 100w High Luminous Led High Bay Lights
-
100w Outdoor Industrial Led High Bay Light 100w Dimmable Led High Bay Light 100w High Power High Bay
-
New Product High Power Led High Bay Light 18000 Lumen
Product Details
| LED Light Source | Philips/Cree | Warranty(Years) | 5 | |
| Input Voltage(V) | AC100-277V | Lamp Power(W) | 150 | |
| Lamp Luminous Flux(lm) | 15000 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CE, EMC, Energy Star, ETL, FCC, LVD, PSE, SAA | |
| Place of Origin | Guangdong, China | Brand Name | AROMA | |
| Model Number | ARM-HB-0411M80-150W |
Product Description
newest high quality 150w led high bay lighting ce 150w high bay 150w dimmable led high bay light
Product Features:
1.Energy saving: can reach 80% compare with traditional lamps.
2.Environment friendly: No radiation, no heavy metal pollution.
3.Wide voltage constant current, stable performance, safe and reliable.
4.Optimized heat sink design to ensure a excellent heat dissipation system.
5.Low power consumption, high intensity, low lumen attenuation.
6.High brightness, high lumen.
7.Easy to install and maintain, can directly replace incandescent/halogen lamp.
8.Cree led chip.
Advantage:
Technical Data
| Item No. | 150W |
| Input Voltage | AC 100-277V 50Hz/60Hz |
| Working Voltage | DC30-38V |

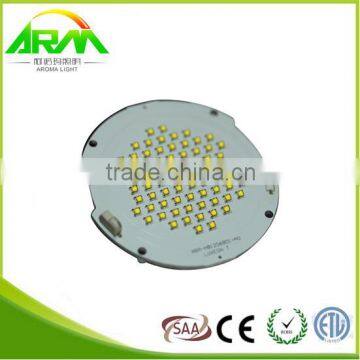

| LED Type | SMD |
| LED Power | 1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD) |
| Total Power Consumption | 150W |
| Luminous Flux (±5%) | 15000lm |
| Color Temperature (CCT) | 2700-7000K |
| Beam Angle of Reflector (Optional) | 45°/ 90°/120° |
| Color Rendering Index (CRI) | CRI>80 |
| Lamp Efficiency | >90% |
| LED Luminous Efficiency | 100lm/W |
| Power Factor (PF) | >0.95 |
| Total Harmonic Distortion (THD) | ≤10% |
| Illuminance Uniformity | >0.7 |
| Light Distribution | Symmetrical / Round Light Area |
| LED Junction Temperature | 150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535) |
| Waterproof Performance | IP 54 |
| Average Lifespan | 50,000hrs |
| Net Weight (without Reflector) | 6.60kgs |
| Certificate | CE / RoHS / SAA / ETL/DLC |
Mechanical Specifications
| Lamp Housing | Design | High-power SMD, External Aluminum Reflector |
| Material | Die-cast Aluminum / Anodized Aluminum | |
| Housing Processing | Lamp | (Black, Silver color optional) |
| Reflector | Organic Oxidation Processing, Sandblasting Processed | |

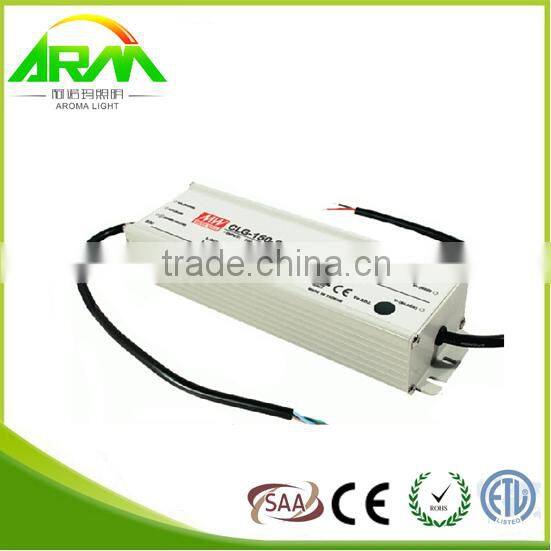

| LED Power Supply | Type | Constant Current LED Driver with Aluminum Shell, IP65 |
| Power cable | Waterproof Rubber CableLength: 0.3m | |
| Heat Dissipation | LED | Thermal Conductive Adhesive, Hollow Aluminum Lamp Body |
| Heat Sink | Phase-chage Tech | |
| LED Driver | Aluminum Shell | |
| PSU Connection | Brown | L (Live Line) |
| Blue | N (Null Line) | |
| Yellow (Green) | G (Ground Line) |
Environmental
| Working | Working Temperature | -20ºC to 45ºC |
| Humidity Range Operating | 10 % to 80 % | |
| Storage | Temperature Range of Storage | -40ºC to 85ºC |
| Humidity Range of Storage | 10 % to 80 % |
Optional Reflector
Explosive View
Installation
Packing
Application
Company Show
Contact Us
- Shenzhen Aroma Lighting Technology Co., Ltd.
- Contact nameCandy Ho Chat Now
- Phone0086-0755-27094769
- Address2nd Floor, Bldg. A5, Shuiku Road, Huangpu Baimeigang Industrial Zone, Shajing Street, Bao'an District, Shenzhen, Guangdong
