Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > 100w Outdoor Industrial Led High Bay Light 100w Dimmable Led High Bay Light 100w High Power High Bay

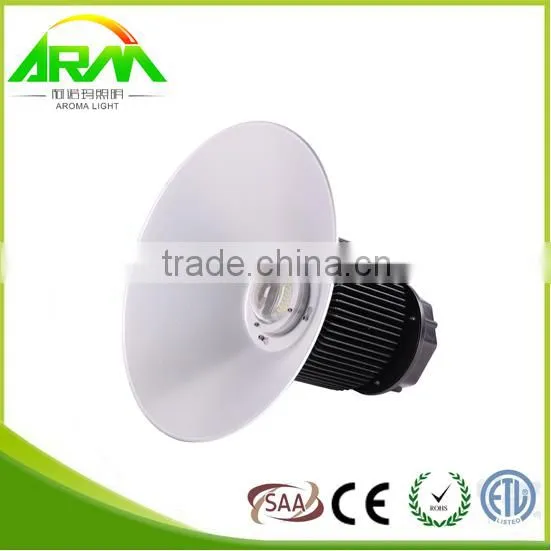

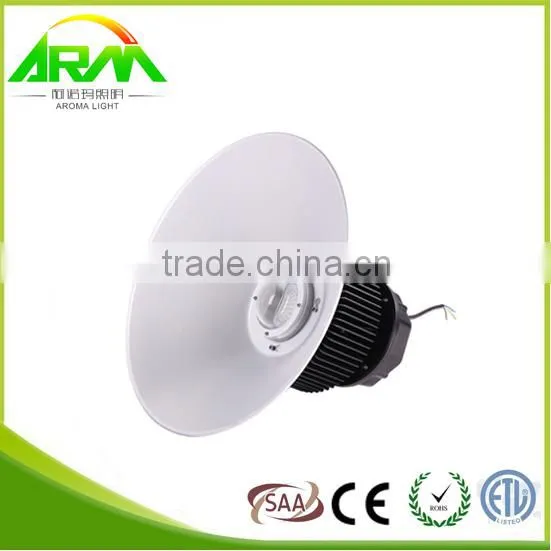

100w Outdoor Industrial Led High Bay Light 100w Dimmable Led High Bay Light 100w High Power High Bay
US$ 75 - 150
MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Philips/Cree
Warranty(Years):
5
Input Voltage(V):
AC100-277V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Product High Power Led High Bay Light 18000 LumenUS$ 65 - 150MOQ: 2 Pieces -
Most Pupluar Gas Station Factory 100w Led High Bay LightUS$ 62.00 - 69.00MOQ: 1 Piece
-
Fast Delivery Led High Bay Light 100w ul Led High Bay LightUS$ 62.00 - 69.00MOQ: 1 Piece
-
2200lm 200w LED High Bay Light 5 Years WarrantyUS$ 150.00 - 150.00MOQ: 100 Pieces
-
Energy Saving 200w LED High Bay Light 5 Years WarrantyUS$ 150.00 - 150.00MOQ: 100 Pieces
LED Light Source
Philips/Cree
Warranty(Years)
5
Input Voltage(V)
AC100-277V
Lamp Power(W)
100
Lamp Luminous Flux(lm)
10000
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-20, 45
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum
IP Rating
IP54
Certification
CE, EMC, Energy Star, ETL, FCC, LVD, PSE, SAA
Place of Origin
Guangdong, China
Brand Name
AROMA
Model Number
ARM-HB- 4411M00-100W
100w outdoor industrial led high bay light 100w dimmable led high bay light 100w high power high bay
Product Features:
1.Energy saving: can reach 80% compare with traditional lamps.
2.Environment friendly: No radiation, no heavy metal pollution.
3.Wide voltage constant current, stable performance, safe and reliable.
4.Optimized heat sink design to ensure a excellent heat dissipation system.
5.Low power consumption, high intensity, low lumen attenuation.
6.High brightness, high lumen.
7.Easy to install and maintain, can directly replace incandescent/halogen lamp.
8.Cree led chip.
Advantage:
Technical Data
| Item No. | 100W |
| Input Voltage | AC 100-277V 50Hz/60Hz |
| Working Voltage | DC30-38V |
| LED Type | SMD |
| LED Power | 1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD) |
| Total Power Consumption | 100W |
| Luminous Flux (±5%) | 10000lm |
| Color Temperature (CCT) | 2700-7000K |
| Beam Angle of Reflector (Optional) | 45°/ 90°/120° |
| Color Rendering Index (CRI) | CRI>80 |
| Lamp Efficiency | >90% |
| LED Luminous Efficiency | 100lm/W |
| Power Factor (PF) | >0.95 |
| Total Harmonic Distortion (THD) | ≤10% |
| Illuminance Uniformity | >0.7 |
| Light Distribution | Symmetrical / Round Light Area |
| LED Junction Temperature | 150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535) |
| Waterproof Performance | IP 54 |
| Average Lifespan | 50,000hrs |
| Net Weight (without Reflector) | 7.00kgs |
| Certificate | CE / RoHS / SAA / ETL/DLC |
Mechanical Specifications
| Lamp Housing | Design | High-power SMD, External Aluminum Reflector |
| Material | Die-cast Aluminum / Anodized Aluminum | |
| Housing Processing | Lamp | (Black, Silver color optional) |
| Reflector | Organic Oxidation Processing, Sandblasting Processed | |
| LED Power Supply | Type | Constant Current LED Driver with Aluminum Shell, IP65 |
| Power cable | Waterproof Rubber CableLength: 0.3m | |
| Heat Dissipation | LED | Thermal Conductive Adhesive, Hollow Aluminum Lamp Body |
| Heat Sink | Phase-chage Tech | |
| LED Driver | Aluminum Shell | |
| PSU Connection | Brown | L (Live Line) |
| Blue | N (Null Line) | |
| Yellow (Green) | G (Ground Line) |
Environmental
| Working | Working Temperature | -20ºC to 45ºC |
| Humidity Range Operating | 10 % to 80 % | |
| Storage | Temperature Range of Storage | -40ºC to 85ºC |
| Humidity Range of Storage | 10 % to 80 % |
Optional Reflector
Explosive View
Installation
Packing
Application
