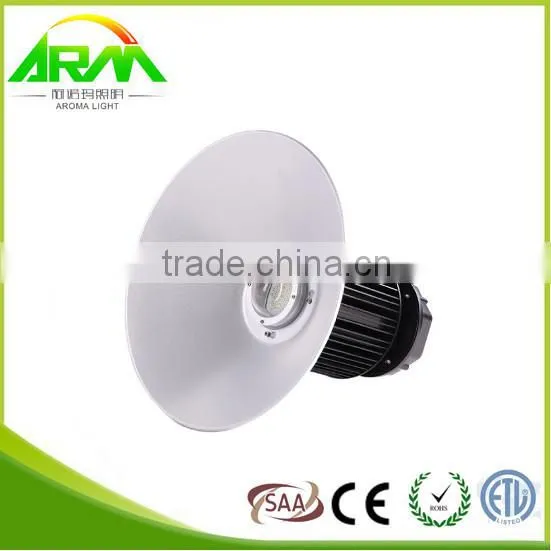

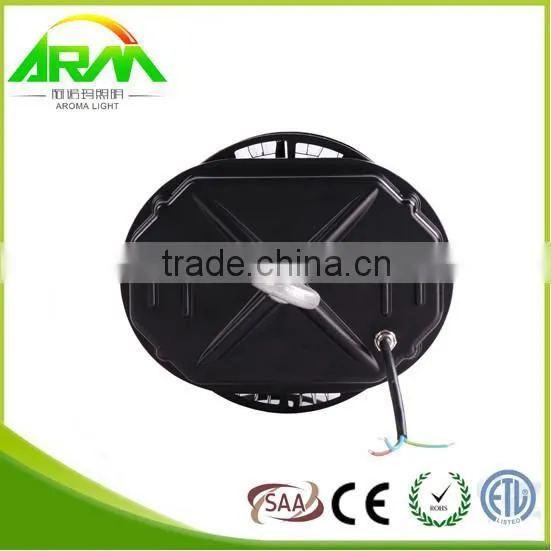

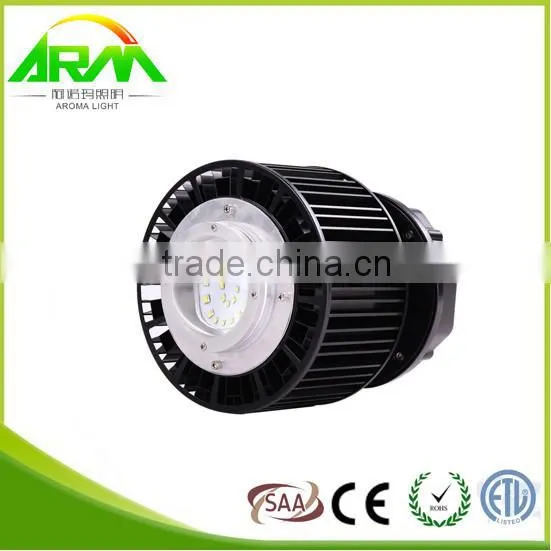

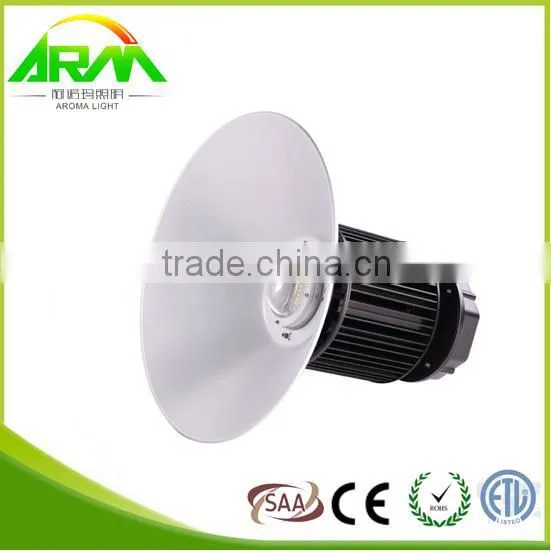

150w China Manufacturer Outdoor Dimmable Led High Bay

FOB Price

US$ 75 - 150 / Piece

2 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Philips/Cree	Warranty(Years)	5
Input Voltage(V)	AC100-277V	Lamp Power(W)	150
Lamp Luminous Flux(lm)	15000	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Cool White	Working Temperature(℃)	-20, 45
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
IP Rating	IP54	Certification	CE, EMC, Energy Star, ETL, FCC, LVD, PSE, SAA
Place of Origin	Guangdong, China	Brand Name	AROMA
Model Number	ARM-HB-0411M80-150W

Product Description

150w china manufacturer outdoor dimmable led high bay

Product Features:

1.Energy saving: can reach 80% compare with traditional lamps.

2.Environment friendly: No radiation, no heavy metal pollution.

3.Wide voltage constant current, stable performance, safe and reliable.

4.Optimized heat sink design to ensure a excellent heat dissipation system.

5.Low power consumption, high intensity, low lumen attenuation.

6.High brightness, high lumen.

7.Easy to install and maintain, can directly replace incandescent/halogen lamp.

8.Cree led chip.

Advantage:

Technical Data

Item No.	150W
Input Voltage	AC 100-277V 50Hz/60Hz
Working Voltage	DC30-38V

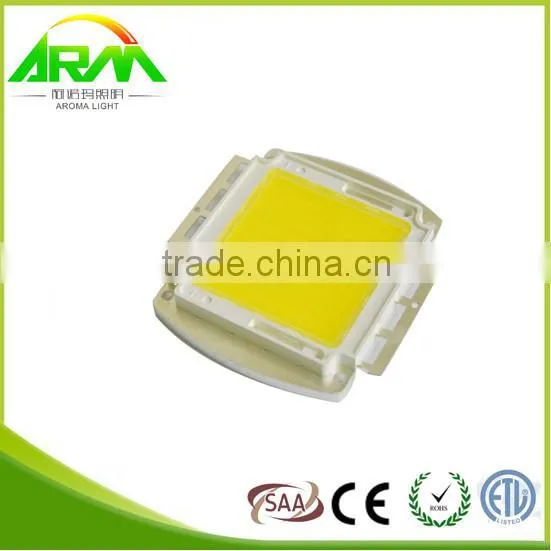

LED Type	SMD
LED Power	1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD)
Total Power Consumption	150W
Luminous Flux (±5%)	15000lm
Color Temperature (CCT)	2700-7000K
Beam Angle of Reflector (Optional)	45°/ 90°/120°
Color Rendering Index (CRI)	CRI>80
Lamp Efficiency	>90%
LED Luminous Efficiency	100lm/W
Power Factor (PF)	>0.95
Total Harmonic Distortion (THD)	≤10%
Illuminance Uniformity	>0.7
Light Distribution	Symmetrical / Round Light Area
LED Junction Temperature	150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535)
Waterproof Performance	IP 54
Average Lifespan	50,000hrs
Net Weight (without Reflector)	6.60kgs
Certificate	CE / RoHS / SAA / ETL/DLC

Mechanical Specifications

Lamp Housing	Design	High-power SMD, External Aluminum Reflector
Lamp Housing	Material	Die-cast Aluminum / Anodized Aluminum
Housing Processing	Lamp	(Black, Silver color optional)
Housing Processing	Reflector	Organic Oxidation Processing, Sandblasting Processed

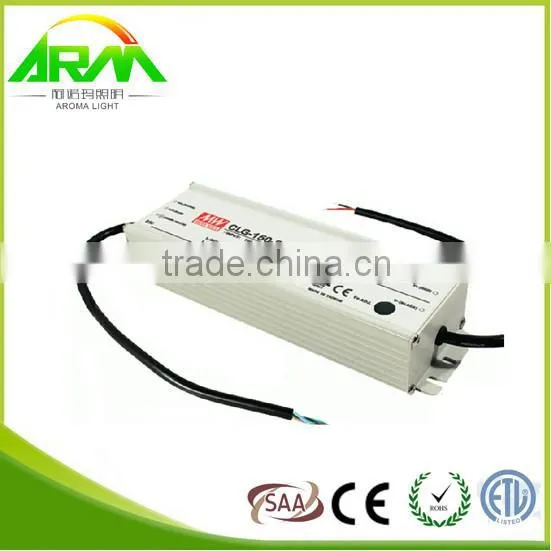

LED Power Supply	Type	Constant Current LED Driver with Aluminum Shell, IP65
LED Power Supply	Power cable	Waterproof Rubber CableLength: 0.3m
Heat Dissipation	LED	Thermal Conductive Adhesive, Hollow Aluminum Lamp Body
	Heat Sink	Phase-chage Tech
	LED Driver	Aluminum Shell
PSU Connection	Brown	L (Live Line)
	Blue	N (Null Line)
	Yellow (Green)	G (Ground Line)

Environmental

Working	Working Temperature	-20ºC to 45ºC
Working	Humidity Range Operating	10 % to 80 %
Storage	Temperature Range of Storage	-40ºC to 85ºC
Storage	Humidity Range of Storage	10 % to 80 %

Optional Reflector

Explosive View

Installation

Packing

Application
