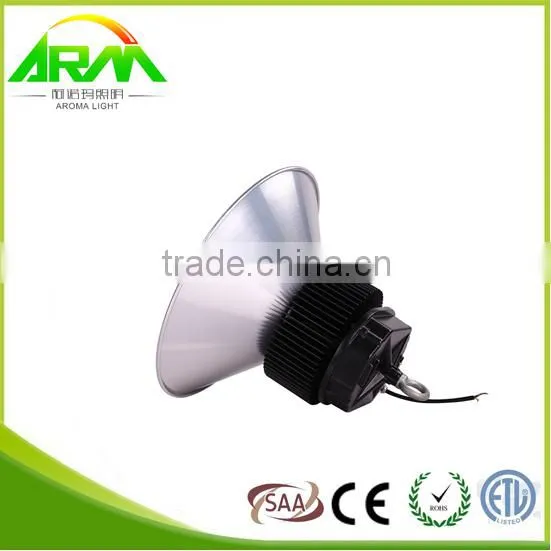

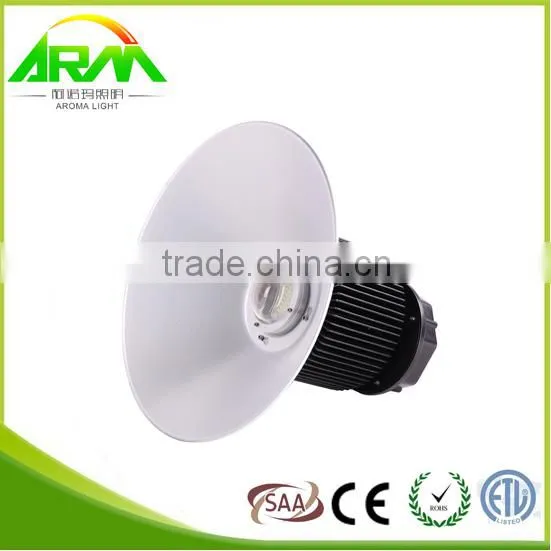

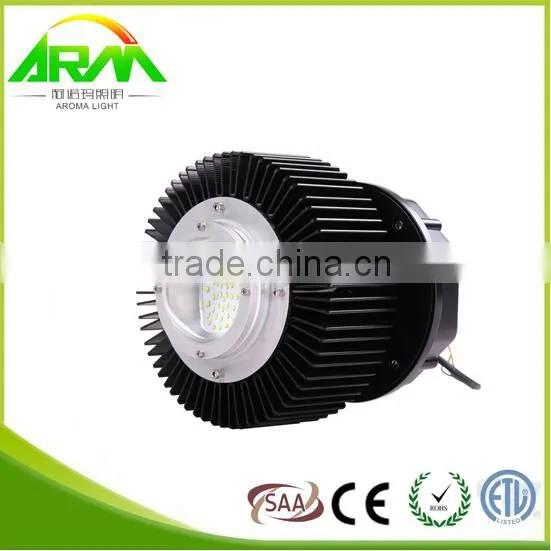

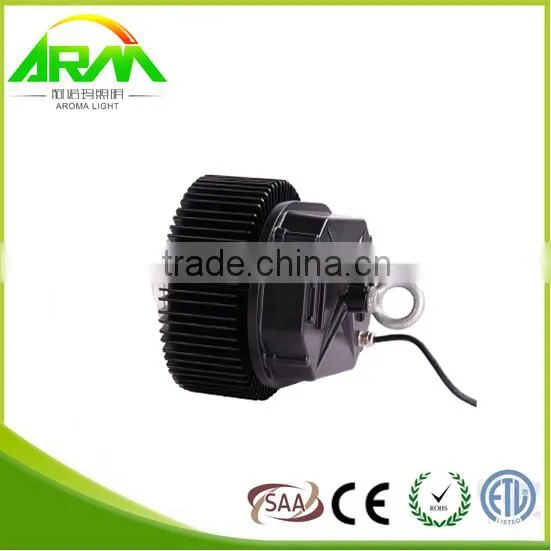

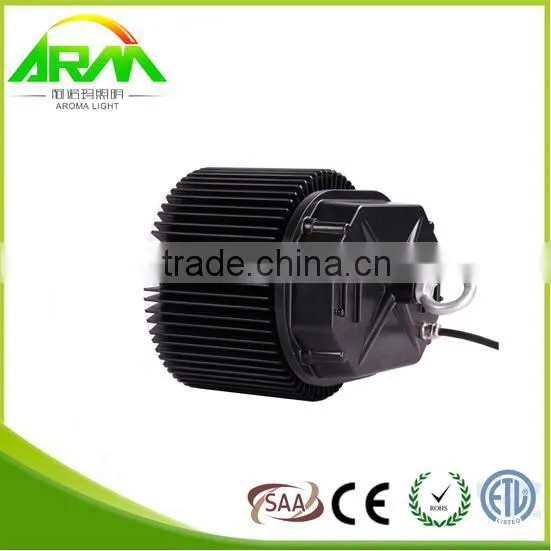

High Power Led on Sales Led High Bay Light 100w Led Industrial Lighting
US$ 75 - 150
MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Philips/Cree
Warranty(Years):
5
Input Voltage(V):
AC100-277V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fashionable Explosion Proof Led High Bay Light Oem Explosion Proof Led High Bay Light Waterproof Led LightsUS$ 75 - 150MOQ: 2 Pieces -
New Style Led High Bay Light High Bay Led Light Bulb Led High Bay/warehouse LightingUS$ 75 - 150MOQ: 2 Pieces
-
Led Indoor High Baying Lighting Indoor Led High Baying Lighting Led High Bay Lighting for Gas StationUS$ 75 - 150MOQ: 2 Pieces
-
Good Quality Led Light High Bay 150w With Fast DeliveryUS$ 75 - 150MOQ: 2 Pieces
-
High Lumen High Bay Lighting 200w Led High Bay Light Waterproof Ip65 High Bay Led Light DecorativeUS$ 75 - 150MOQ: 2 Pieces
LED Light Source
Philips/Cree
Warranty(Years)
5
Input Voltage(V)
AC100-277V
Lamp Power(W)
100
Lamp Luminous Flux(lm)
10000
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Warm White
Working Temperature(℃)
-20, 45
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum
IP Rating
IP54
Certification
CE, EMC, Energy Star, ETL, FCC, LVD, PSE, SAA
Place of Origin
Guangdong, China
Brand Name
AROMA
Model Number
ARM-HB- 4411M00-100W
high power led on sales led high bay light 100w led industrial lighting

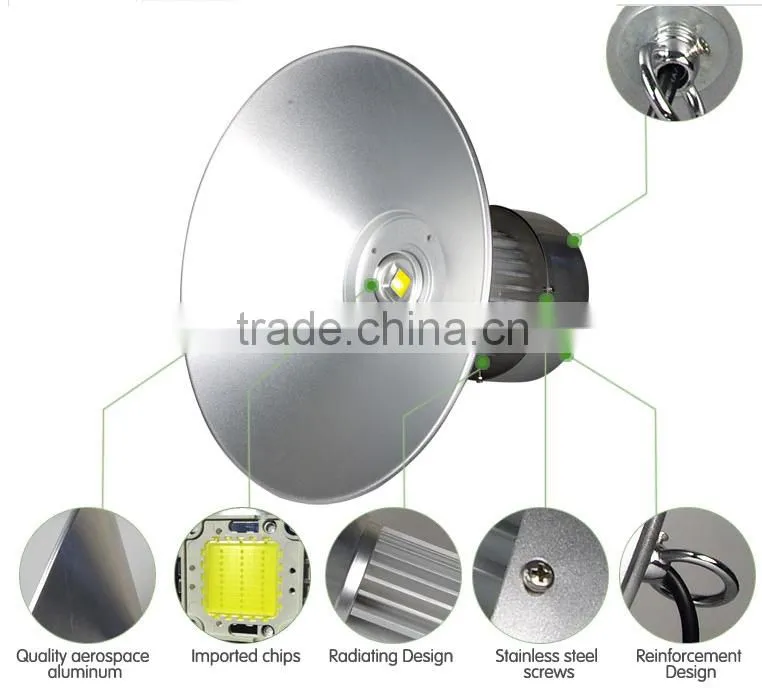

Product Features:
1.Energy saving: can reach 80% compare with traditional lamps.
2.Environment friendly: No radiation, no heavy metal pollution.
3.Wide voltage constant current, stable performance, safe and reliable.
4.Optimized heat sink design to ensure a excellent heat dissipation system.
5.Low power consumption, high intensity, low lumen attenuation.
6.High brightness, high lumen.
7.Easy to install and maintain, can directly replace incandescent/halogen lamp.
8.Cree led chip.
Advantage:
Technical Data
| Item No. | 100W |
| Input Voltage | AC 100-277V 50Hz/60Hz |
| Working Voltage | DC30-38V |

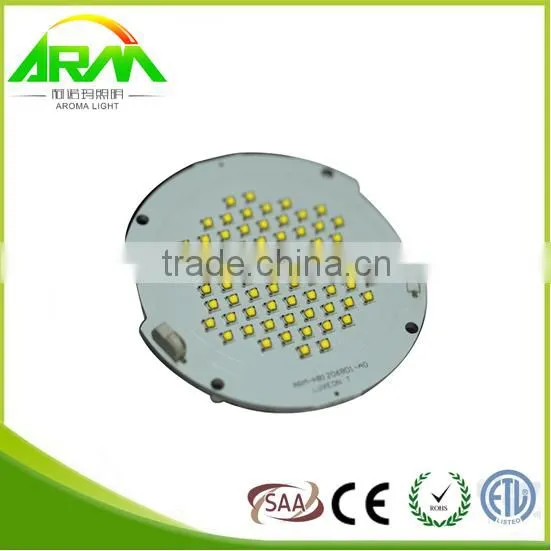

| LED Type | SMD |
| LED Power | 1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD) |
| Total Power Consumption | 100W |
| Luminous Flux (±5%) | 10000lm |
| Color Temperature (CCT) | 2700-7000K |
| Beam Angle of Reflector (Optional) | 45°/ 90°/120° |
| Color Rendering Index (CRI) | CRI>80 |
| Lamp Efficiency | >90% |
| LED Luminous Efficiency | 100lm/W |
| Power Factor (PF) | >0.95 |
| Total Harmonic Distortion (THD) | ≤10% |
| Illuminance Uniformity | >0.7 |
| Light Distribution | Symmetrical / Round Light Area |
| LED Junction Temperature | 150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535) |
| Waterproof Performance | IP 54 |
| Average Lifespan | 50,000hrs |
| Net Weight (without Reflector) | 7.00kgs |
| Certificate | CE / RoHS / SAA / ETL/DLC |
Mechanical Specifications
| Lamp Housing | Design | High-power SMD, External Aluminum Reflector |
| Material | Die-cast Aluminum / Anodized Aluminum | |
| Housing Processing | Lamp | (Black, Silver color optional) |
| Reflector | Organic Oxidation Processing, Sandblasting Processed | |

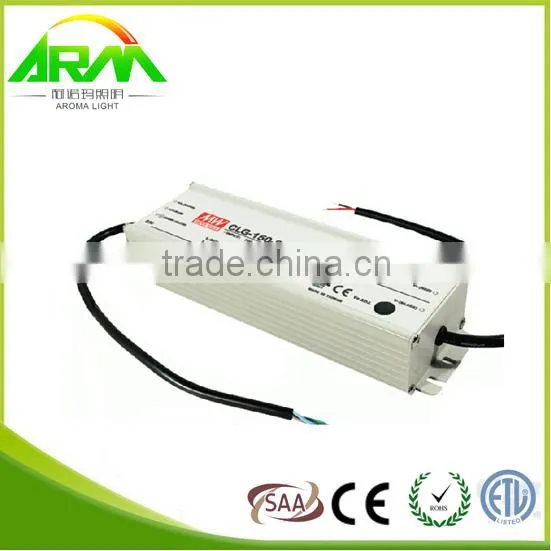

| LED Power Supply | Type | Constant Current LED Driver with Aluminum Shell, IP65 |
| Power cable | Waterproof Rubber CableLength: 0.3m | |
| Heat Dissipation | LED | Thermal Conductive Adhesive, Hollow Aluminum Lamp Body |
| Heat Sink | Phase-chage Tech | |
| LED Driver | Aluminum Shell | |
| PSU Connection | Brown | L (Live Line) |
| Blue | N (Null Line) | |
| Yellow (Green) | G (Ground Line) |
Environmental
| Working | Working Temperature | -20ºC to 45ºC |
| Humidity Range Operating | 10 % to 80 % | |
| Storage | Temperature Range of Storage | -40ºC to 85ºC |
| Humidity Range of Storage | 10 % to 80 % |

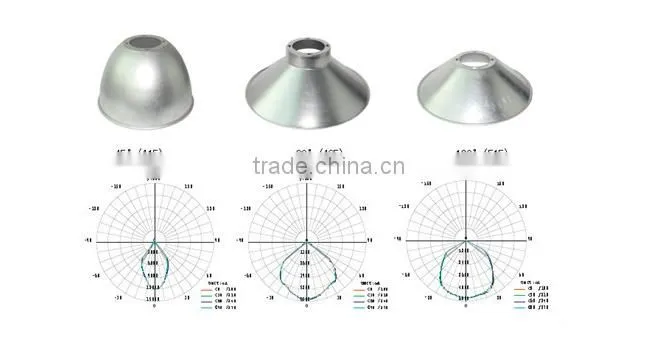

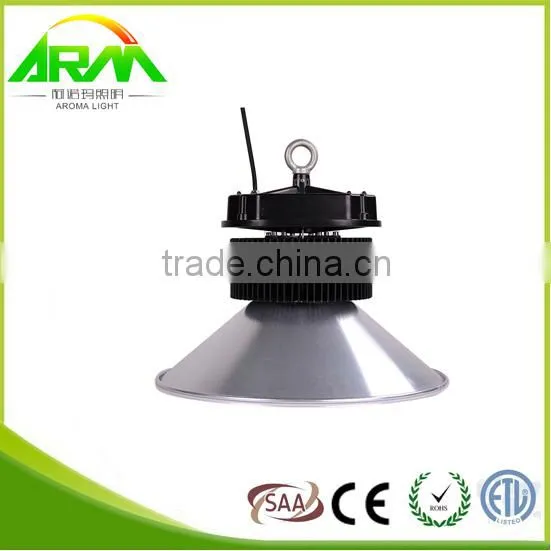

Optional Reflector

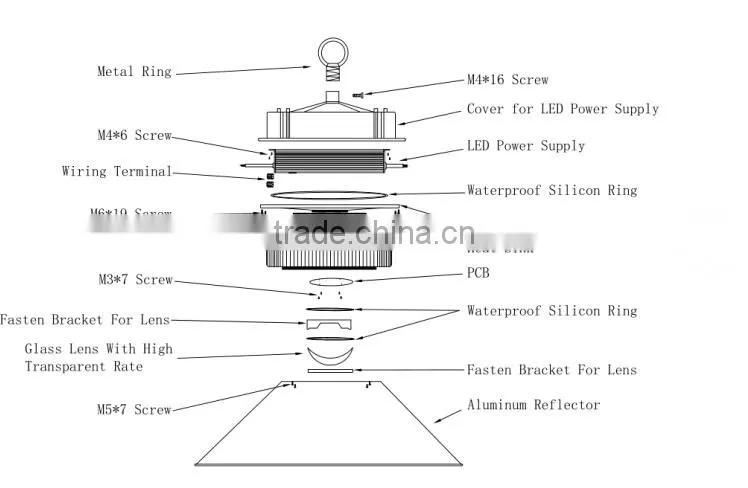

Explosive View

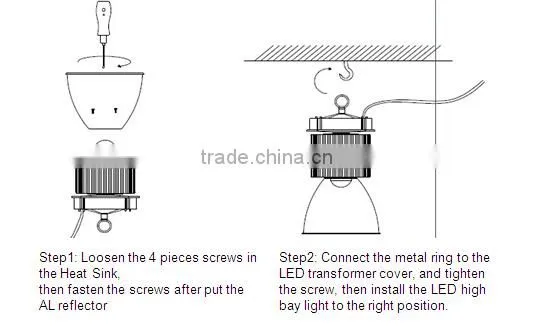

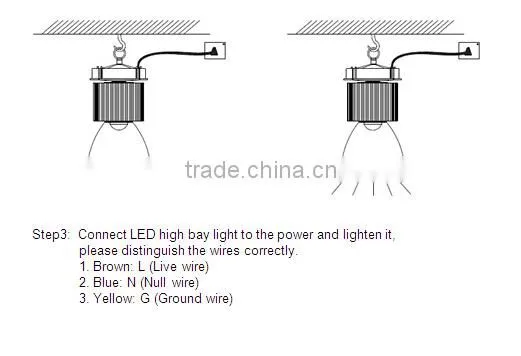

Installation
Packing

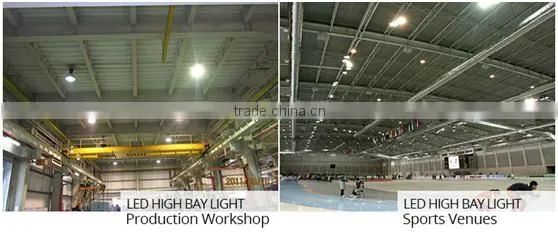

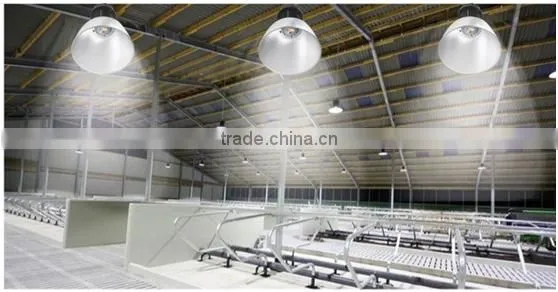

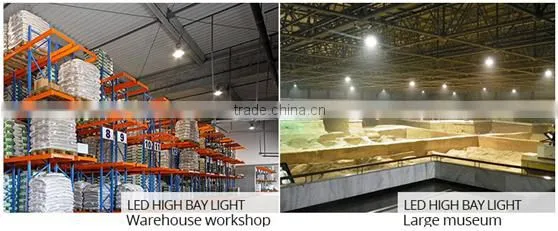

Application

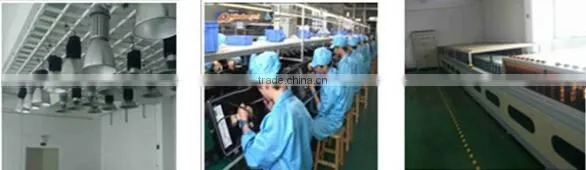

Company Show
