7.5kva generator price
- 2000 Set / Sets per Month
- Fuzhou
- T/T Credit Card PayPal
Product Details
Place of Origin: | Fujian, China | Brand Name: | JINLONG | Model Number: | STC-7.5kw |
Output Type: | AC Three Phase | Speed: | 1500RPM | Frequency: | 50HZ |
Rated Power: | 7.5kw | Rated Voltage: | 220V 230v | Rated Current: | 5.4A~135A |
Product Description

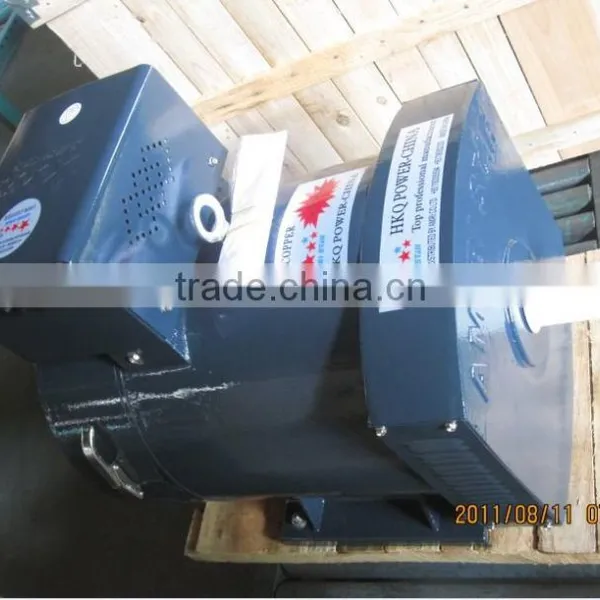

7.5kva generator price
1)OEM,Factory Price
2)12 Months Warranty
3)Short Delivery Time
4)Best Service
DESCRIPTION:
1.ST series single phase ac electric generators are mainly designed to service as power generating unit of small capacity,which supply electricity for lighting purpose in ships,for house-hold electric devices used in towns or villages.
2.The construction of the ac electric generators is of disproof,salient pole rotating field self excitation and constant voltage type.The alternator interior is used with high quality electric magnetic and electrical material.Stator insulation is class B.
OPERATING CONDITIONS:
Under the following environment conditions, the generator could run normally and continuously:
1. Altitude: Not exceed 1000m.
2. Cooling air temperature: 258~313K (-15 ~40 ).
3. Relative air humidity: Not exceed 90%.
FEATURES:
1.Generator ,ST series single phase
2.Excellent in appearance ,consolidated in construction
3.Dimensions are adopted IEC standard
4.Overall salient rotor ,strong winding ,unique ventilation structure
5.Small size ,light weight
6.Compound phase compound excitation device ,excellent performance especially used under power load
CUSTOMER BENEFITS:
1)Water dust and vermin resistant
2)Quiet operation and Electricity saving
3)Corrosion resistant and Dependable
4)Superior life and Reliable in country, city or factory environments
TECHNICAL DATAS:
Model | Power (KW) | Current (A) | Voltage (V) | Power Factor (cos) | Number of poles | Speed(r.p.m) | ||
In series | And the United | In series | And the United | |||||
ST-1 | 1 | 4.35 | 8.7 | 230 | 115 | 1.0 | 4 | 1500 |
ST-2 | 2 | 8.7 | 17.4 | 230 | 115 | 1.0 | 4 | 1500 |
ST-3 | 3 | 13 | 26 | 230 | 115 | 1.0 | 4 | 1500 |
ST-5 | 5 | 21.8 | 43.5 | 230 | 115 | 1.0 | 4 | 1500 |
ST-7.5 | 7.5 | 32.6 | 65.2 | 230 | 115 | 1.0 | 4 | 1500 |
ST-10 | 10 | 43.5 | 87 | 230 | 115 | 1.0 | 4 | 1500 |
ST-12 | 12 | 52.2 | 104 | 230 | 115 | 1.0 | 4 | 1500 |
ST-15 | 15 | 65.3 | 130 | 230 | 115 | 1.0 | 4 | 1500 |
ST-20 | 20 | 87 | 174 | 230 | 115 | 1.0 | 4 | 1500 |
ST-24 | 24 | 104 | 208 | 230 | 115 | 1.0 | 4 | 1500 |
Payment;
30% deposit(T/T),balance (70%) to be paid before shipment.(for bulk cargo)
30% deposit(T/T),balance (70%) to be paid after receipt of the B/L copy.(For container order)
L/C at sight. (For container order)
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
Fujian Jinlong Electrical Machinery Group Co., Ltd (JINLONG GROUP for short) was established in 1994 JINLONG Group regards electromechanical industry as the core, and involves International Trade, Finance, Investment E.T.C. After years of unremitting efforts, our company has developed into a certain scale of comprehensive, international group co., LTD.
Have passed ISO 9001:2008, CE, GS Certificate e.t.c.. Brand “Jinlong” is “FUJIAN PROVINCE FAMOUS TRADEMARK” & “FUJIAN PROVINCE FAMOUS BRAND PRODUCTS” that is recognised by international customers. Products are sold in European, South America,South-East Asia, Middle East, Africa e.c.t over 80 countries and areas. Favored by the majority of customers.
