Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Deutz 110KVA Open Type Diesel Generator

Deutz 110KVA Open Type Diesel Generator

Name: Deutz 110KVA Open Type Diesel Generator
Brand: Jinlong/OEM
SKU: 106196177
Availability: InStock

Deutz 110KVA Open Type Diesel Generator thumbnail-1

Deutz 110KVA Open Type Diesel Generator photo-1

US$ 1,001 - 9,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

Jinlong/OEM

Model Number:

GF-DD105

Contact Supplier Request Quote Chat Now

Fujian Jinlong Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name Jinlong/OEM

Model Number GF-DD105

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60hz

Rated Power 100KVA

Rated Voltage 220/380V,230/400V,110/208V,127/220

Rated Current depend on power

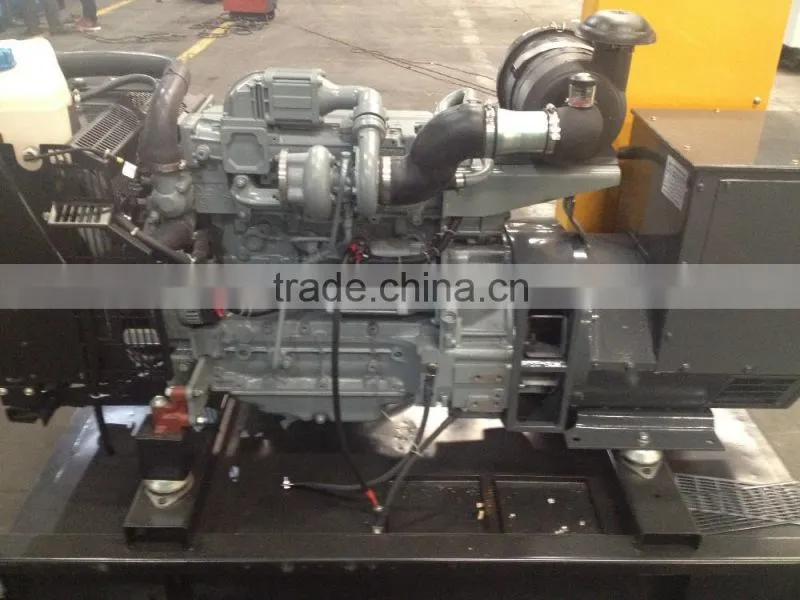

Deutz 110KVA open type diesel generator

1.Design Patent Product
2.100% copper wire
3.Top zinc-plate fuel tank
4. No losing power

Product Description

3-PH, 50Hz@1500RPM, 220/380V (Also Can Be Made According To Customers’ Special Requirements)

Composed of DEUTZ (water cooled) diesel engine and Stamford Alternator

24V DC start motor and storage battery

Brushless, Self-excited, IP23, insulation class F alternator

40°C radiator as standard, 50°C is optional

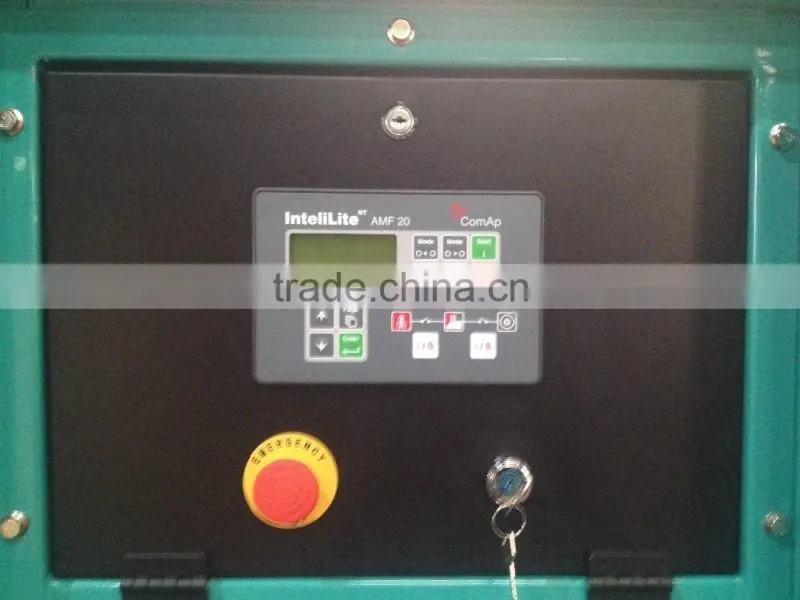

Key start panel control system as standard, digital auto-start panel is optional

Optional open type or silent type

All generator sets are gone through rigorous testing before being released to the market place.

Prime Power	80KW/100KVA	Standby Power	88KW/110KVA
Rated Speed	1500RPM	Output Frequency	50HZ
Phase	3	Rated Voltage	400V
Engine Model	TD226B-6D	Alternator Model	UCI274C
Noise(7m)dB(A)	70	Fuel Consumption (g/kw.h)	208
Voltage Regulation Rate	≤±1%	Random Voltage Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%
Dimension (Silent type)	2600X1060X1700 (mm)	Weight (silent type)	1540kg

Engine Specifications

DEUTZ Diesel Engine

Engine Model	TD226B-6D
Number of Cylinder	6
Cylinder arrangement	Vertical in-line
Cycle	Four Stroke
Aspiration	Turbocharged
Bore×Stroke (mm×mm)	105×120
Displacement (L)	6.23
Compression Ratio	18:1
Prime Power/Speed(KW/rpm)	60/1500
Standby Power/Speed(KW/rpm)	66/1500
Speed Governor	Mechanical
Cooling System	Water-cooled
Speed Stability(%)	≤5%
Fuel Consumption at 100% Load(g/kwh)	208(at 1500RPM)
Starter Motor	24V
Alternator	24V

Alternator Specifications

Alternator Model	UCI 274C
Alternator Brand	Stamford
Exciter Type	Brushless, Self-excited
Rated Output	80KW
Rated Speed	1500RPM
Rated Frequency	50HZ
Phase	Three
Rated Voltage	400V (Available with customer requirements)
Power Factor	0.8
Voltage Adjust Range	≥5%
Voltage Regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Features:

Low consumption and low noise

Powerful load capacity.

AMF/ATS

1 year warranty

Base fuel tank

Open typr or Silent type

Our work shop

Certificate

Packaging & Shipping

Payment;

30% deposit(T/T),balance (70%) to be paid before shipment.(for bulk cargo)

30% deposit(T/T),balance (70%) to be paid after receipt of the B/L copy.(For container order)

L/C at sight. (For container order)

Our Services

Warranty

A guarantee of 1200 hours or 12 months from date of commissioning or 18 months from shipping, whichever occurs first, is provided. Warranty will be invalid if customer disobey the requirements of the operation and maintance in Generator Set Technical Manual.This is supported by the added operation and maintenance backing of the principal component manufacture, global service networks.
