Hot sale GF2 water-cooled diesel generator set for deutz engine

 For deutz engine

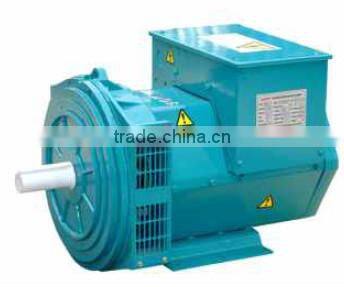

Alternator Data   Connection type:3 phase 4 wires Rated voltage:230/400V(adjustable) Frequency: 50HZ Power factor: 0.8(lagging); Excitation mode:Brushless self-excitation Voltage control:AVR Insulation grade:"H" Protection grade:IP23

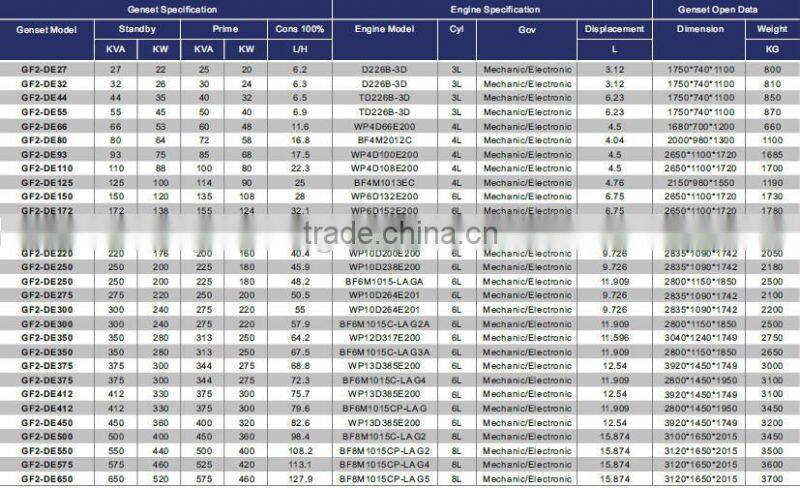

Technical data

Feature

1.Full control panel with power indicator light and oil light.

2.Emergency shutdown for low oil pressure and high water temperature.

3.Large fuel tank ensure continuous running.

4.Low noice & vibration level.

5.Compact structure.

6.Reliable performance.

7.Easy for installation and maintenance.

8.50Hz and 60Hz are both avaliable for choice.

About products

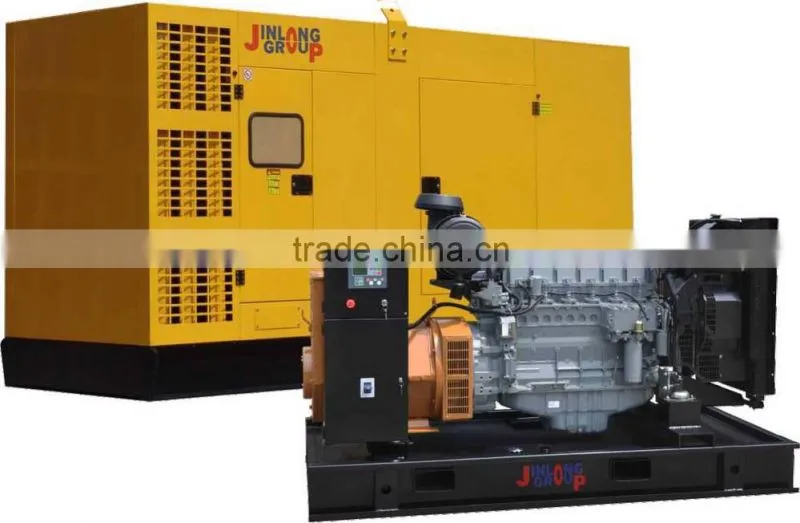

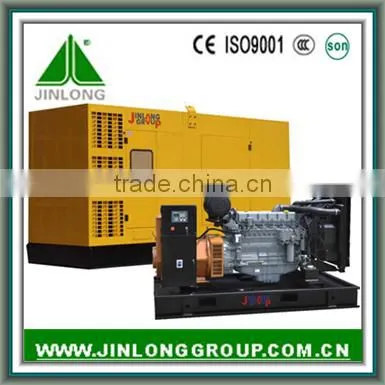

We offers a comprehensive range of soundproof/weatherproof and open skid diesel powered generators to provide continuous, prime or standby duties. All are based upon components from leading manufactures with established track records of reliable performance and service throughout the word.

Powered by world famous engines, such as Cummins, Perkins, MTU, Yanmar, and so on. The fully covered load centre houses all the outlets, compression terminals, and circuit breakers.

Automatic shutdown when fault condition occurs.

These brand engines are with low emission, low noise and fuel consumption, long lasting, global warranty and service.

Base frame

The complete generating set is mounted as a whole, on a heavy duty fabricated, welded steel base frame. The base frame incorporates built in fuel tank ans specially designed lifting points.

Factory tests

Each generator undergoes a 2-hours factory load test at 0%, 25%, 50%, 75%, 100% and 110% duty and all protection devices and contrl functions are simulated and checked as part of the factoy testing regime. A test certificate can be provided upon request.

Warranty

A guarantee of 1000 hours or 12 months from date of commissioning or 18 months from shipping, whichever occurs first, is provided. Warranty will be invalid if customer disobey the requirements of the operation and maintance in Generator Set Technical Manual.This is supported by the added operation and maintenance backing of the principal component manufacture, global service networks.
