Help Center200W Moving Sharpy Beam Head Light 5R 16Ch for Party Disco Dj Club
Related Products
-
25x30w 3 in 1 RGB LED Matrix Blinder Pixel Panel Beam Light Magic Effect Light DMX512 Disco DJ Stage Lighting Party for Stage LiUS$ 1 - 250MOQ: 1 Piece -
4Pcs/Lot 16 Heads 30W COB RGB LED Wall Washer Stage Lights Pixel Panel Matrix Blinder Light 4x4 Slim LED 3 in 1 Matrix Night CluUS$ 1 - 200MOQ: 1 Piece
-
Stage Lighting LED Light 5 Lens 10W RGB 3in1 DMX512 Matrix for Xmas Christmas Birthday Home Garden Party Club Disco EffectUS$ 1 - 100MOQ: 1 Piece
-
36PCS 3W LED Mini Disco Moving Head Beam Stage WasH LightUS$ 1 - 100MOQ: 1 Piece
-
4 PCS 10W LED Mini Moving Head RGBW 4 IN 1sharpy Beam LightUS$ 1 - 200MOQ: 1 Piece

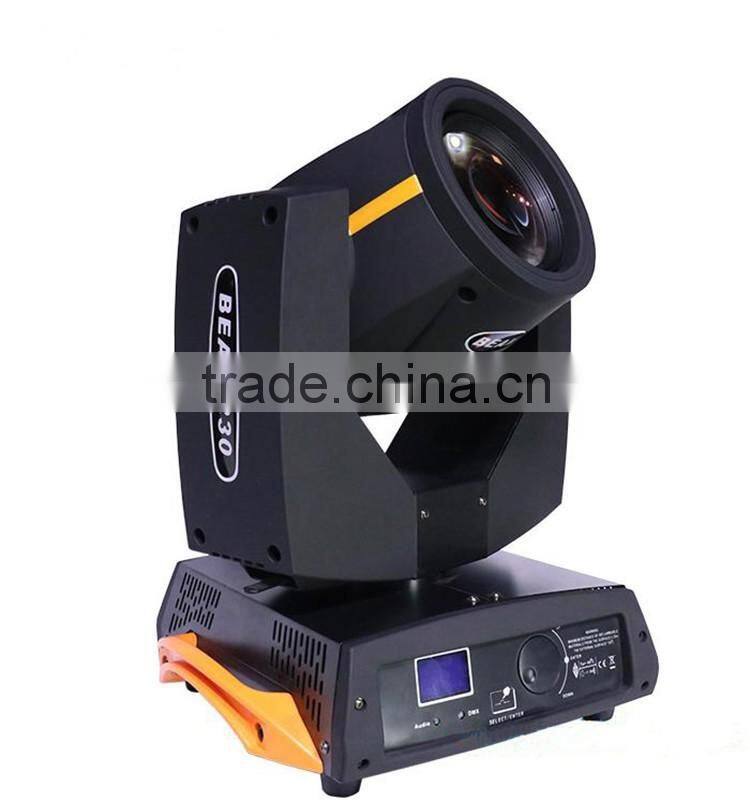

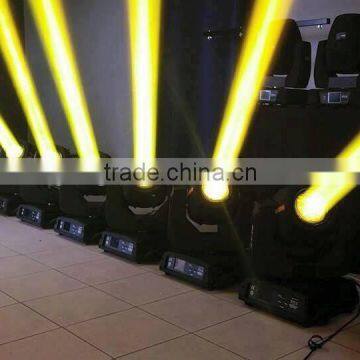

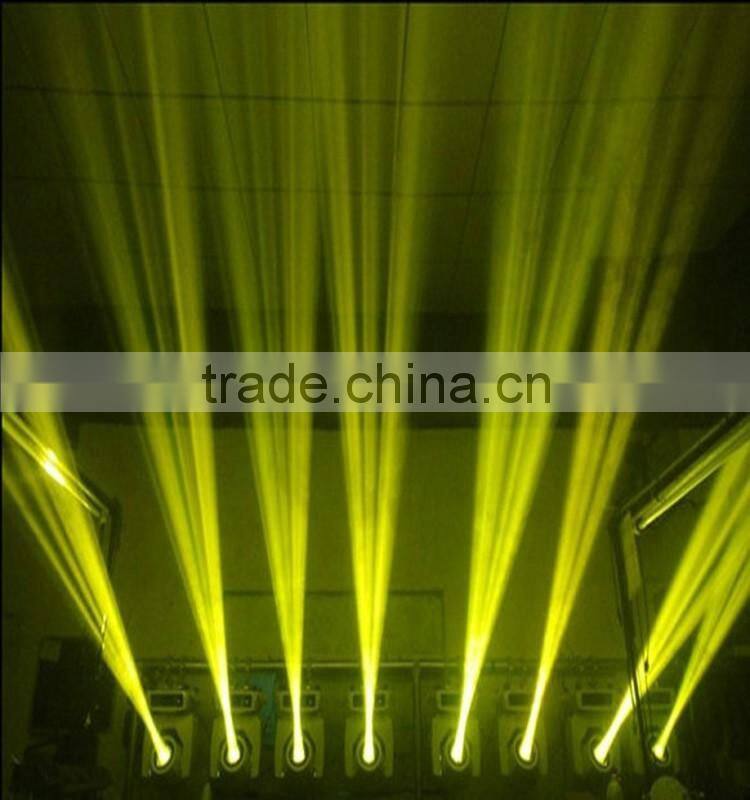

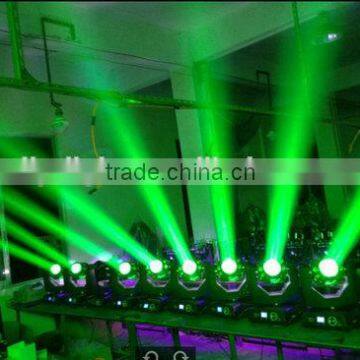

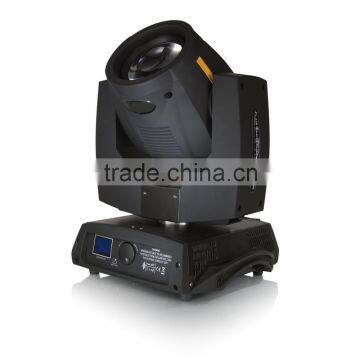

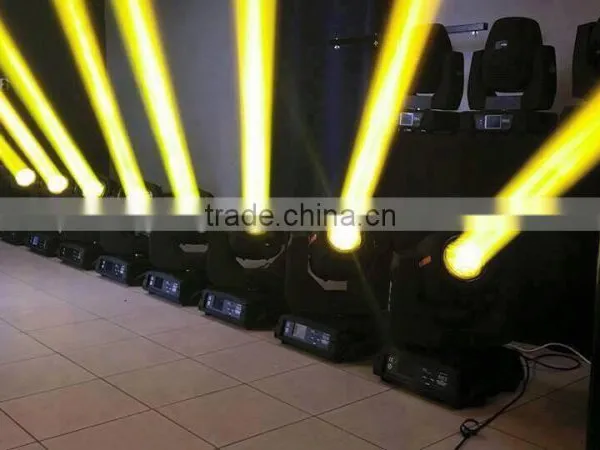

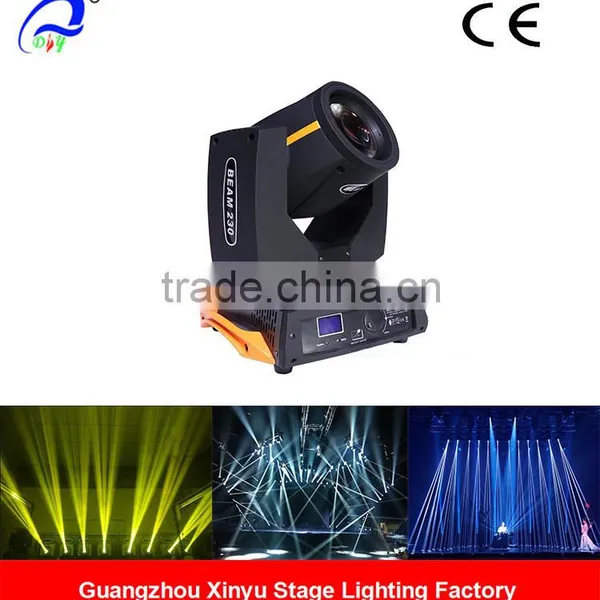

moving head beam light equipped with 200w lamp. It owns 2 groups optics lens, bringing in strong and highly focused beam light which likes the laser effects. When illuminate towards the sky, the penetration of the beam light will bring you very impressive visual effects. The average life time reaches 2000-3000 hours for the lamp. This fixture has 14 colors, 17 gobos, 1 rotating 8-facet prism with moving effect,1 frost effect and beam angle 0-4°. The Pan/tilt is driven by 3-phase motor, moving fast and noiselessly. The rated power is280w which will decrease 50w when the shutter is closed.
200W lamp
14 colors
17 gobos
8 facet prism with rotating and moving effect
Beam angle 0-4°
Mechanical + electronic dimmer
High speed strobe 1-13/sec.
Pan 540°, 8 or 16Bit resolution
Pan 270°, 8 or 16Bit resolution
Pan/tilt is driven by 2-phase motor and fast inspected and located through encoder, moving quickly and steady.
High-powered electronic hardware application, anti-interference performance enhanced, steady and reliable.
|
LAMP SOURCE Lamp power: 200W Type: Philips UHP 189W Lamp Luminous flux: 11200lm Average life: 2500h
OPTICS Beam angle 0-4° 2 group optics lens
COLOR SYSTEM 14 color filters + white
GOBO SYSTEM 1 gobo wheel with 17 gobos
EFFECT EQUIPMENT 1 rotating 8-facet prism with moving effect, 1 frost effect, dimmer and strobe function, 0-100% linear dimmer, strobe speed 1-13/sec.

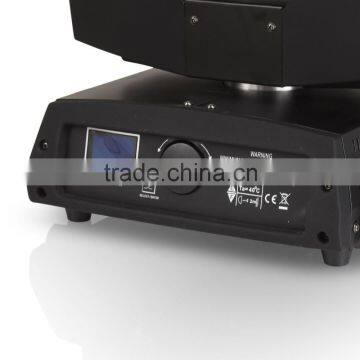

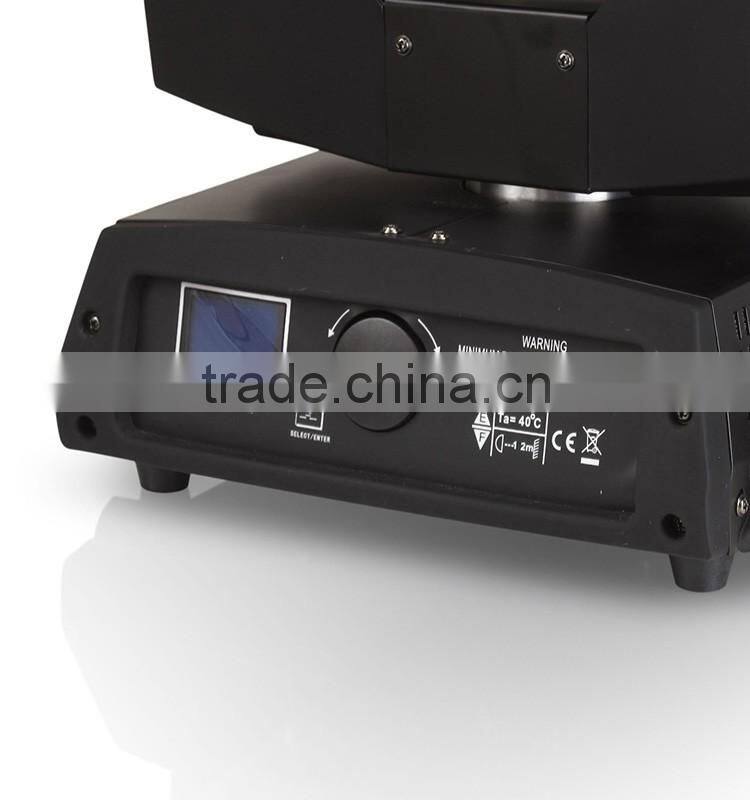

CONTROL AND PROGRAMMING Control channel: 16 (standard)/20 (16bit)control channel model Protocol: Standard DMX512 protocol Resolution control: Pan, tilt, gobo DMX signal connection: 3 or 5-pin XLR input/output

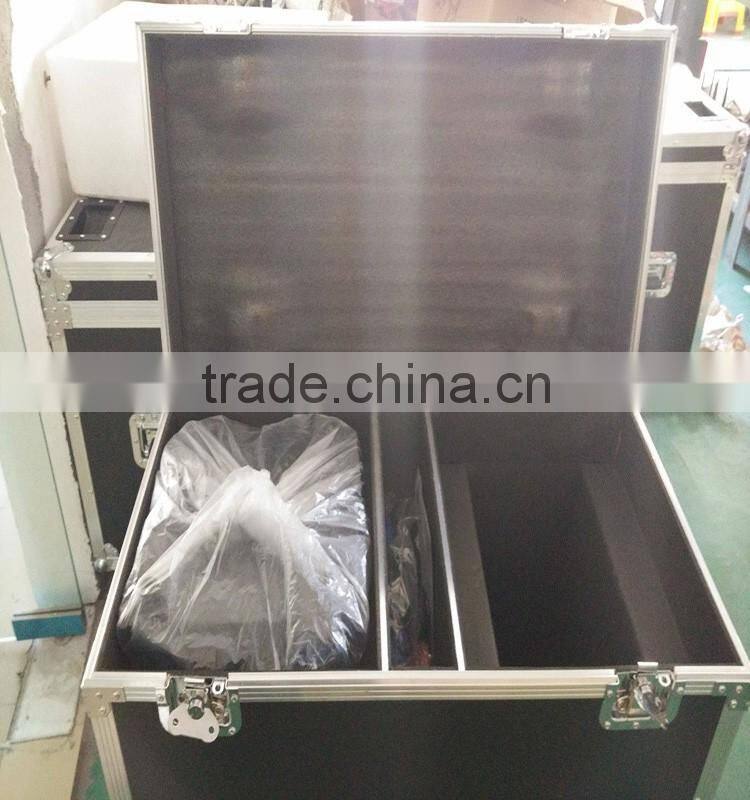

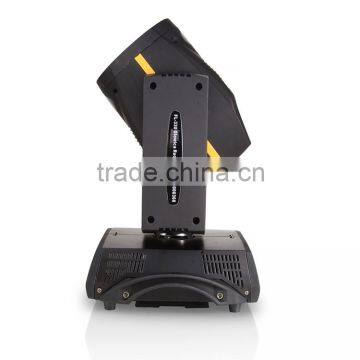

BODY Aluminum structure with die-cast plastic cover Two handles for transportation Pan and tilt lock for transportation and maintenance
MOVING PARAMETER Angle: PAN=540°, TILT=270° Max speeds: PAN=1.72 sec.(360°),TILT=1.35 sec.(270°) Resolution: PAN=2.11°,TILT FINE=0.008°, TILT=1.05°,TILT FINE=0.004° PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident stagelighting
|
ELECTRIC CONTROL TECHNOLOGY Automatically energy saving model POWER SUPPLY AC100-240V 50/60Hz Switching power supply Electronic ballast
INPUT POWER 280W,PFC≥0.96
SAFETY PROTECTION Overcurrent , overvoltage and overheating protection
WORKING POSITION Any safety position to install
STANDARD CERTIFICATE In conformity with GB7000.1-2007,GB7000.217-2008 and GB17625.1-2003 directives.
FIXTURE DIMENSION 330×390×490mm.
WEIGHT 20.5kg |
This Mini LED Moving head beam light is great for small concerts, TV studios, mobile DJ and nightclubs.
Guangzhou Xinyu Stage Lighting Factory,established in 2008, is a professional high-tech manufacturer, engaged in stage lighting equipment research, production , sale and service of beam moving head light, led par light, led light effect series, laser and fog machines. We have 3,000 m³ area of factory, located in baiyun, guangzhou, very close to baiyun airport. With reliable quality and long-term after-sales service, our excellent team have exported products to North America, Europe, South America, more than 100 countries successfully, especially in recently years, our products with its unique design and reached standard C E and ROHS Certificates, most of them are hot sell and praised by customers. Moreover, we have enough experiences in producing O E M orders, whether choosing our recent products in catalog or make improvement according to customer's requirements, we have but one aim, to satisfy clients for long-term cooperation. In the future, we will try our best to update the customers with any new concepts and new information in lighting industry. Meanwhile, We will listen to the customers' needs and keep it as a principle that our greatest success is the feedback of satisfaction from our customers. We believe that, with great effort and many years of development and experience, continously striving for innovation and exploration, we will become the leading supplier in stage lighting area in next years.
All our products are qualified to CE, ROHS, FCC, also can specially made other certificates according to customer's import needs.
We welcome all customer come to visit our booth in every fair, Frankfurt, Guangzhou and Shanghai prolight+sound Exhibition.
