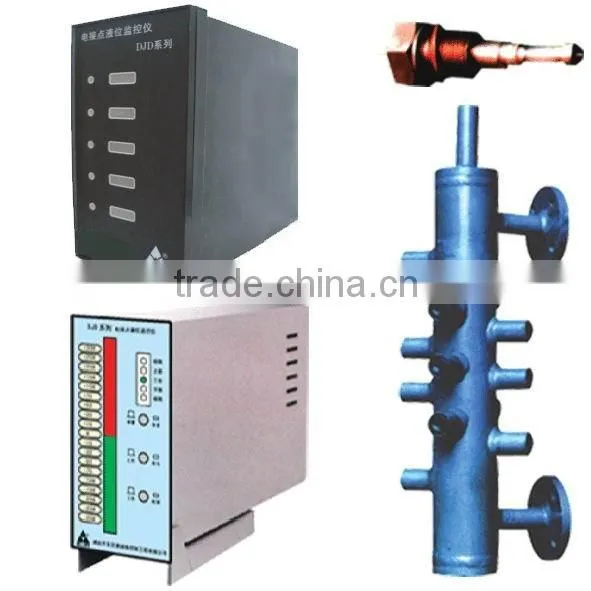

SXY Series boiler liquid monitoring system combined by liquid level transmitter and display indicating meter, this monitor system is widely used to monitor and control the liquid tank’s level automatically. This system can be used on boiler drum, high and low pressure heater, deaerator, condenser, evaporator, boiler startup separator and water tank liquid level measurement and control. Can also be used for other conductive liquid level measurement and control, but it is not suitable for flammable and explosive and corrosive liquid measurement and control. Can also be used for other conductive liquid level measurement and control, but it is not suitable for flammable and explosive and corrosive liquid measurement and control.
Main features
1.) Display instrument with double color light-emitting diode and a nixie tube display liquid level, green represents a level, red said steam or space, visual and conspicuous.
2.) The instrument is set up and down two groups of limit alarm, meet the need of control alarm or interlocking.
3.) Using alarm logic control to judge the function, effectively prevent false water level alarm.
4.) In order to adapt to the water treatment technology to improve the quality of the water after the request, the instrument provides the user with ten stalls of water resistance adjustment greatly increased the scope of application of water resistance: 0 ~ 500K.
5.) When the sewage is required, the instrument will cut off all relay outputs.
Specification:
Voltage: 220V.AC /50Hz
Ambient temperature: -10~45℃
Ambient humidity: ≤85%RH;
Application of liquid resistance:0~500kΩ;
Liquid level display points:5~19
Maximum length of wire of electrode sensor: 200m
Maximum relay output capacity:220V.AC/3A
Total Power consumption:≤5W
Monitor Meter Size: 80×160×350mm
Mounting Size: 76×152mm
