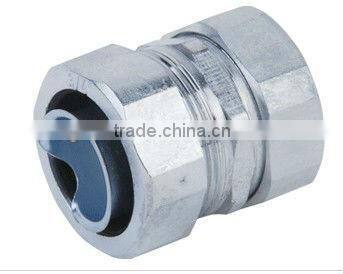

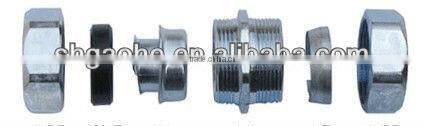

Ferrule Tube/Pipe End Compression Fitting,Union Joints
Ferrule Tube/Pipe End Compression Fitting,Union Joints
Ferrule Tube/Pipe End Compression Fitting,Union Joints :
1.With sigle ferrule inside,compact structure
2,Compression,self sleeve type parts
3,Material :alumnium alloy
4,Stainless steel ,zinc alloy also available .
Chromic and nickel plated just according to your request.
5,One end connected with flexible conduit ,the other end connected with metal pipe.
6,Size are from 1/4" to 6"
| Specification form note | Thick steel tube B (water gas pipe) | Thin steel tube A (electric wire is managed) | |||||
| The metric system | British system | Nominal | Great Britain claims | walls of external diameter are thick (mm) | Nominal | Great Britain claims | walls of external diameter are thick (mm) |
| φ10 | 1/4″ | #10 | 1/4″ | #12 | 1/2″ | 12.76 × 1.60 | |
| φ12(13) | 3/8″ | #12 | 3/8″ | 17 × 2.25 | #15 | 5/8″ | 15.87 × 1.60 |
| φ15(16) | 1/2″ | #15 | 1/2″ | 21.25 × 2.75 | #20 | 3/4″ | 19.05 × 1.80 |
| φ20(19) | 3/4″ | #20 | 3/4″ | 26.75 × 2.75 | #25 | 1″ | 25.40 × 1.80 |
| φ25 | 1″ | #25 | 1″ | 33.5 × 3.25 | #32 | 1/1/4″ | 31.75 × 1.80 |
| φ32 | 1/1/4″ | #32 | 1/1/4″ | 42.25 × 3.25 | #40 | 1/1/2″ | 38.10 × 1.80 |
| φ38(40) | 1/1/2″ | #40 | 1/1/2″ | 48 × 3.5 | #50 | 2″ | 50.80 × 2.0 |
| φ51(50) | 2″ | #50 | 2″ | 60 × 3.5 | #70 | 2/1/2″ | 63.50 × 2.5 |
| φ64(70) | 2/1/2″ | #70 | 2/1/2″ | 75.5 × 3.75 | #80 | 3″ | 76.2 × 3.20 |
| φ75(80) | 3″ | #80 | 3″ | 88.5 × 4 | |||
| φ100 | 4″ | #100 | 4″ | 114 × 4 | |||
| φ125 | 5″ | #125 | 5″ | 140 × 4.5 | |||
| φ150 | 6″ | #150 | 6″ | 165 × 4.5 | |||
