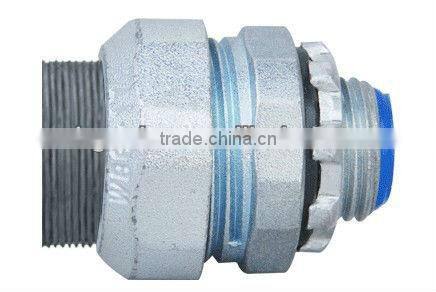

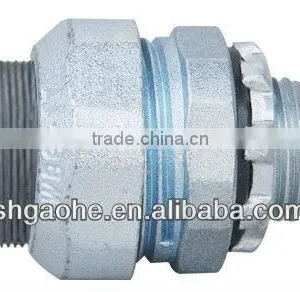

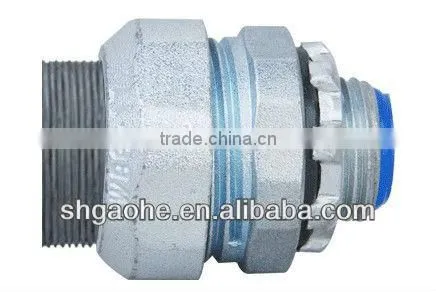

Metal Plica Hose Connector
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Material | Alloy | Technics | Casting | |
| Type | Bushing | Place of Origin | Shanghai, China | |
| Model Number | WBG | Brand Name | GAOHE | |
| Connection | Female | Shape | Equal | |
| Head Code | Square |
Product Description
Specifications
Metal Plica Hose ConnectorProduct material:Galvanized Alloy
Metal Plica Hose Connector
Product material:Galvanized Alloy
Property:
1.Special design fited for the connection of PIK metal and BG, VKC, KS and KG fitting.
2.Water resistant, dust resistant, inactive with salts, acids, alkalis, alcohols, oils and greases as well as general dissolvent.
How to use:
This union can be connected with no-screw thread pipe, PIK metal connector or steel pipe with screw thread, making assembly easy and time-saving, promising strong pull resistance.
Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
| Specification | PIK Type Metal Pipe | BG,VKC,KS and KG Connector | ||||
| Internal diameter (mm) | External Diameter (mm) | Length of Each Coil(m) | Pitch of Thread(mm) | Screw Thread | Steel | |
| 12# | 11.4 | 16.1 | 50 | 1.6 | G1/2″ | 1/2″ |
| 15# | 14.1 | 19.0 | 50 | 1.6 | G1/2″ | 1/2″ |
| 17# | 16.6 | 21.5 | 50 | 1.6 | G1/2″ | 1/2″ |
| 24# | 23.8 | 28.8 | 25 | 1.6 | G3/4″ | 3/4″ |
| 30# | 29.3 | 34.9 | 25 | 1.8 | G1″ | 1″ |
| 38# | 37.1 | 42.9 | 25 | 1.8 | G1/1/4″ | 1/1/4″ |
| 50# | 49.1 | 54.9 | 25 | 1.8 | G1/1/2″ | 1/1/2″ |
| 63# | 62.6 | 69.1 | 10 | 2.0 | G2″ | 2″ |
| 76# | 76.0 | 82.9 | 10 | 2.0 | G2/1/2″ | 2/1/2″ |
| 83# | 81.0 | 88.1 | 10 | 2.0 | G3″ | 3″ |
| 101# | 100.2 | 107.3 | 5 | 2.0 | G3/1/2″ | 3/1/2″ |
