CE Approved soya oil extraction equipment
The introduction of the soya oil extraction equipment
Screw sunflower oil press machine is a popular type of oil press machine, mainly composed of feeder, gearbox, pressing chamber and oil receiver. Some screw oil press machines are equipped with electric motors as required.
Pressing chamber is the key part which contains a pressing cage and a screw shaft rotating in the cage.
An electric cabinet is also necessary to control the whole working procedure.
The Features of the soya oil extraction equipment
Different from the automatic screw oil press, this screw oil press has its own features and markets.
1.Made of high quality steel, wear-resistant and easy to clean.
2.With the properly designed pressing chamber, the increased pressure in the chamber highly improves working efficiency.
Why Choose AMS soya oil extraction equipment ?
1.Wide application: ideal machine for pressing various oil seeds, such as peanut, soybean, sesame, flax seed, etc;
2.High oil yield : the oil output is 35% - 50% higher than common oil press.
3.Low residual: the oil residual in cake is only about 5%.
4.Little land occupancy: only 10-20 square meter is enough.
Tips
Make full use of your abundant oil seeds and start a low investment business, don't miss our screw oil press.
The raw Materials for the soya oil extraction equipment :
The equipment can be used to extract vegetable oil by continuously pressing
peanuts, rapeseeds, soybeans,castor oil plant, sesame seeds, benne seeds, palm seeds, sunflower seeds, cotton seeds, tea seeds, tung seeds and etc.
2) Cold pressing (lower oil output), hot pressing
3) The oil processed by this machine is high quality, good smell, and high yield rate.
4) It uses high carbon steel, which through high frequency quenching and heat-resisting, it is high hardness and strength, good abrasion resistance that suit for high temperature and high pressure continous working, all this had improved the service life of the oil press for decades.
* The technology of the soya oil extraction equipment :
Model |
Capacity (T/D 24 hours) |
Power (KW) |
Outside Size(MM) |
Weight(KG) |
AMS-68 |
1-1.5 |
5.5 |
880*440*765 |
140 |
AMS-80 |
2-3 |
5.5 |
1320*440*1040 |
330 |
AMS-95 |
3-5 |
7.5 |
1610*615*1260 |
420 |
AMS-120 |
5-6 |
11 |
1770*610*1300 |
680 |
AMS-120C |
7-8 |
15 |
1870*750*1300 |
750 |
AMS-130 |
9-12 |
18.5 |
1980*700*1460 |
820 |
AMS-160 |
13-18 |
22 |
2020*700* 780 |
980 |
The spare parts of the soya oil extraction equipment
The complete processing of the soya oil extraction equipment
The production room of the soya oil extraction equipment
The packing and delivery of the soya oil extraction equipment

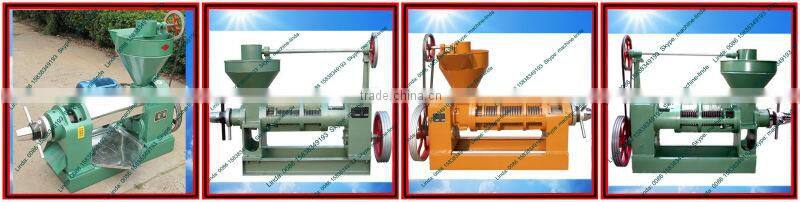

Screw oil press machine with different models as follows,

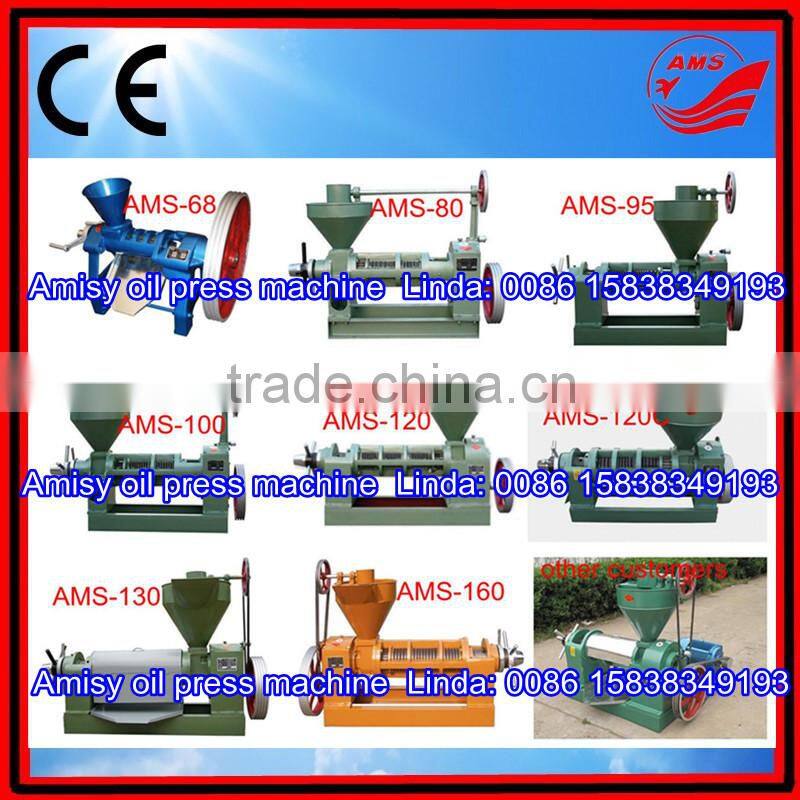

Different types of the oil press machine:
1. Home use of the oil press machine
2.Screw oil press machine
3.Automatic oil press machine
4. Oil refining plant oil press machine
