China jinan Luojia cnc
plasma/flame cnc cutting machine
Machine Description
CNC flame & plasma cutting machine is a high efficiency, energy saving cutting equipment for
various thickness of carbon steel, stainless steel and nonferrous metal precision sheet metal
cutting stock. With automatic ignition and electric height control
Machine Specification
1. Cutting shape: arbitrary planar shapes steel parts Programmable cutting lines and arcs formed
2, cutting accuracy: ± 0.4mm;
4, cutting width: Effective cutting width 0 ~ 1500mm;
5, Track length: effective cutting length 0 ~ 3000mm;
6, the torch configurations: two torch systems;
7. Cutting thickness: Maximum flame cutting 150mm, plasma cutting depends plasma power;
8. Ignition raised: Automatic ignition, automatic increase;
9, numerical control systems: SH-2012, easy to use, stable and reliable;
10. NC Programming: Based on AutoCAD automatic graphical programming software;
11, cutting gas: oxygen + acetylene or propane;
12, speed range: 0 ~ 10000mm / min (mm / min).
Machine Parameter
Model |
1325 |
1330 |
1340 |
1530 |
1840 |
2060 |
Cutting width |
1300mm |
1300mm |
1300mm |
1500mm |
1800mm |
2000mm |
Cutting length |
2500mm |
3000mm |
4000mm |
3000mm |
4000mm |
6000mm |
Control system |
SJTU CNC / FL / START / STARFIRE / HYPERTHERM/ or other |
|||||
Torch |
Plasma torch + flame torch |
|||||
Cutting thickness |
flame maxiumu cutting 150mm, plasma depens on plasma source |
|||||
Travelling speed |
20000 mm/min |
|||||
Cutting speed |
0-10000mm/min |
|||||
Accuracy |
0.04mm |
|||||
cutting gas |
Oxygen acetylene or propane |
|||||

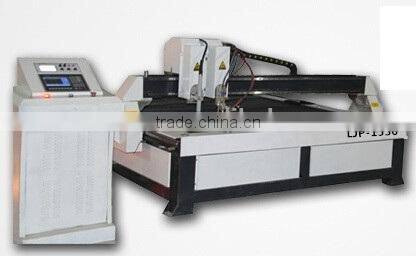

Machine photo
Some Accessories

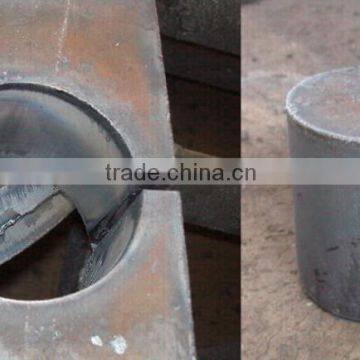

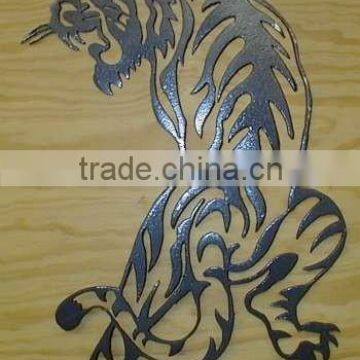

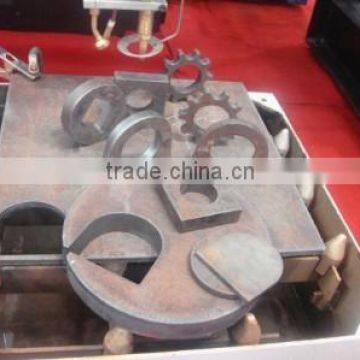

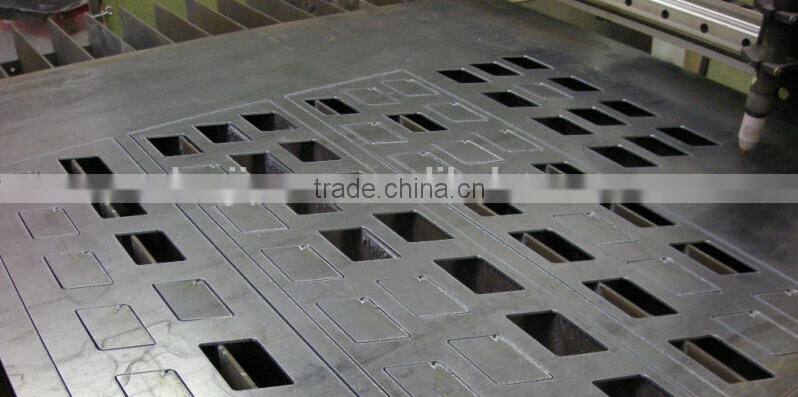

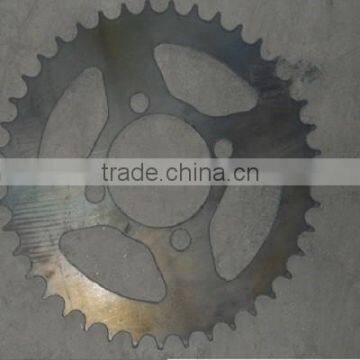

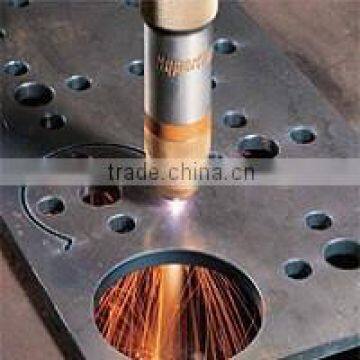

Sample photo
Welcome to send inquiry!
