Specifications
laser cutting machine for sale(1)Affordable price
(2)High speed and accuracy
(3)CE;ISO9001

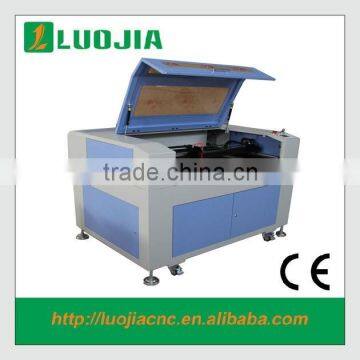

Jinan Luojia cnc equitment co;ltd laser metal cutting machine for sale
Specifications:
Mini desktop laser engraving machine is newly developed craft engraving machine.It is of high speed and accuracy,stable performance,and can be placed conveniently on the desk.Smoke purifier can be specially installed.
1.it is applied to small craft processing and a variety of engraving graphics and text on double-color board,wood,bamboo,and acrylic,cloth,leather and other nonmetal material.
2.It can carve the names,models,logos,design,date on the electronic components.
3.It can do cutting, and max cutting thickness of acrylic is 10 mm.
4.It can engrave all kinds of seal,such as on the material of horn,wood,red plastic,acrylic,ink pad,and so on.
Parameters:
Engraving area |
600mmx900mm |
Laser Power |
40W/ 60W |
Laser Type |
CO2 sealed glass |
Max Engraving Speed |
1200mm/s |
Max Cutting speed |
500mm/s |
Cutting thickness |
<40mm |
Orient precision |
< 0.01mm |
Graphic Format Supported |
CDR, AI, BMP, PLT, DXF, DWG, DST, LAS (Can transmit files directly from CorelDraw) |
Min Character |
English 1x1mm |
Operation System |
DSP or DSP offline with USB Interface |
Machinery Resolution |
0.025mm (1000DPI) |
Power |
AC220v+-10%/50Hz( 110v can be selected) |
Total Power |
<1500W |
Warranty |
12 Months (3 months for laser tube)
|
Samples :
Our factory in fair:
After-sale service:
1. One year free warranty under normal using.
2. 24hours service on Internet and Telephone, free instructions and problem solving
3. Free training to make sure you know how to operate this CNC router
Note: If you are not sure which machine is suitable, please tell me the followingquestions, i will recommend the most suitable machine to you.
1) what materials do you want to engrave or cut?
2) what's the thickness of materials you want to engrave or cut?
3) what's the max. size of the materials? (Length*Width*Thickness)
What optional parts can you choose?
1)Japan servo motor and driver(high quality)
2) ball screw transmission
3) directly motorized honey comb up-down table or electric up-down table.
4)water cooling CW3000 or CW5200
5)automatic feeding system
6)automatic focus
7)rotary clamps:diameter 80mm or 100mm
Thank you visit our products!
