(Skype/Wechat: hnlily07) Organic Fertilizer Pellet Plant / NPK Fertilizer Disk Machine
Attn: Lily Wang
Mobile/ What's App: 86-136 3382 8547
Skype/Wechat: hnlily07
Mail: hnlily07(@)

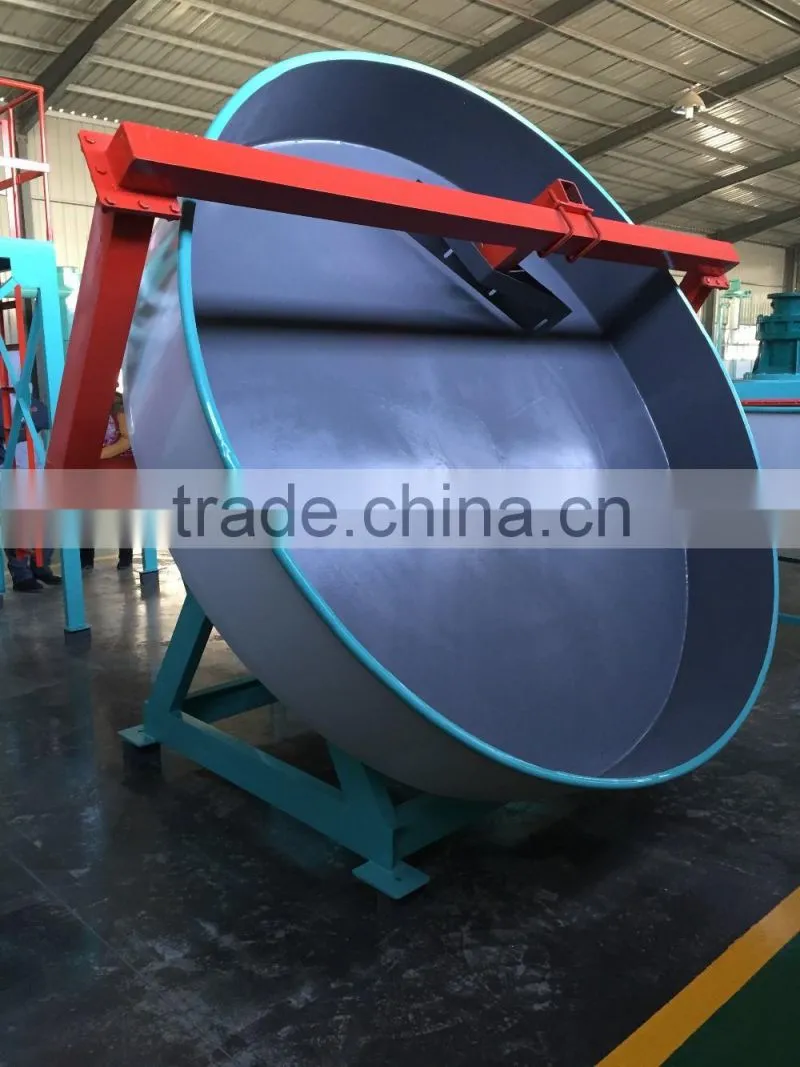

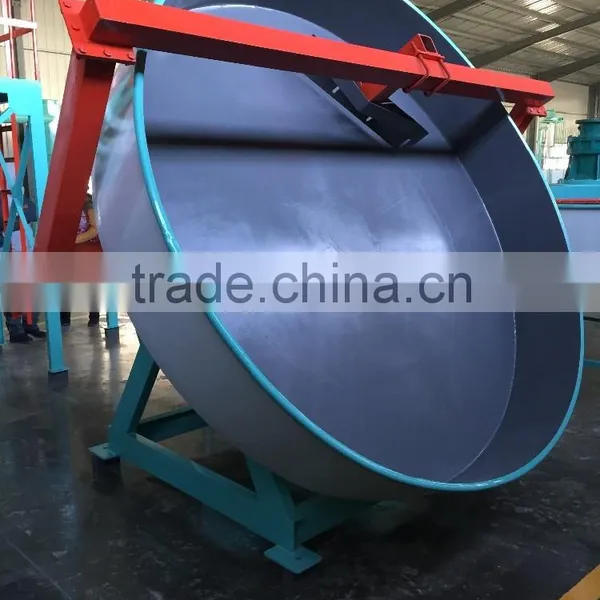

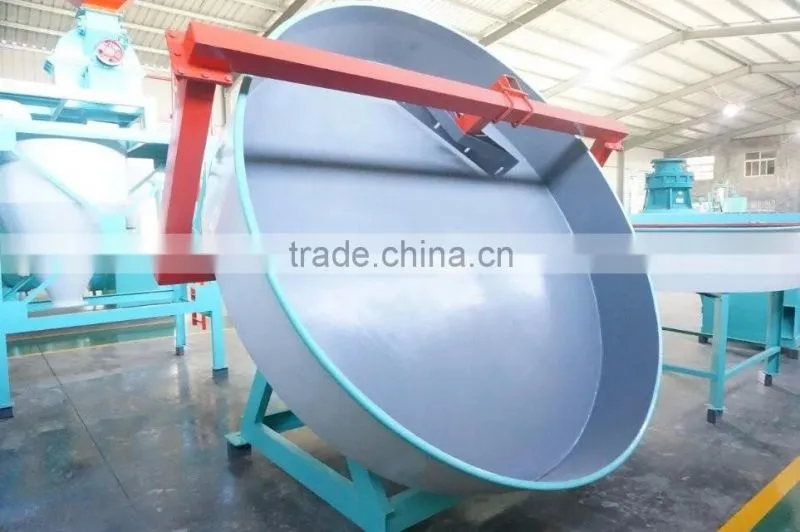

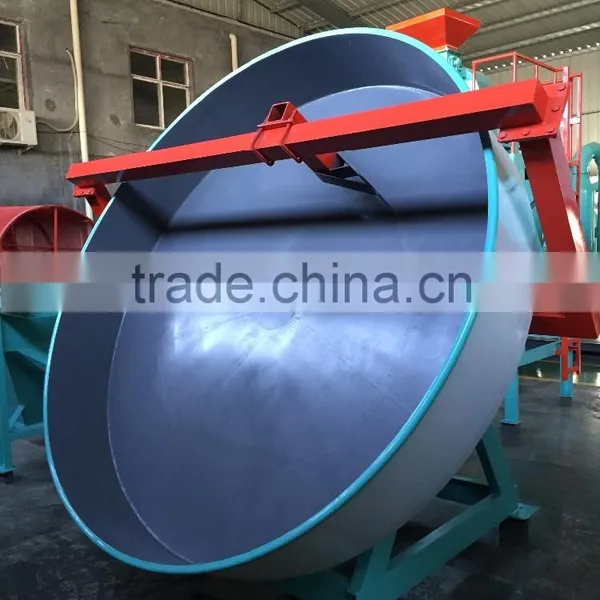

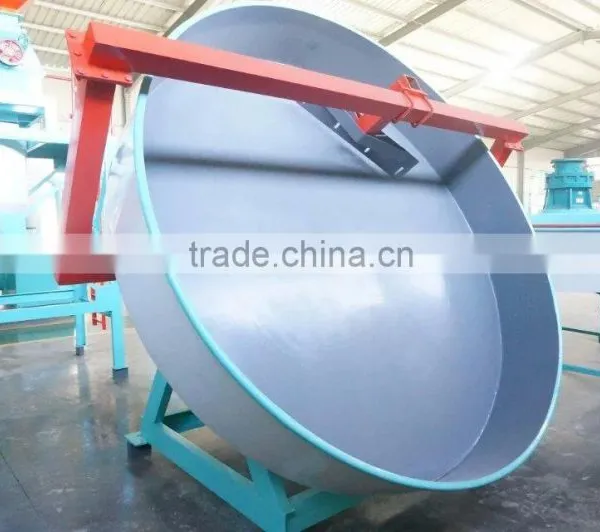

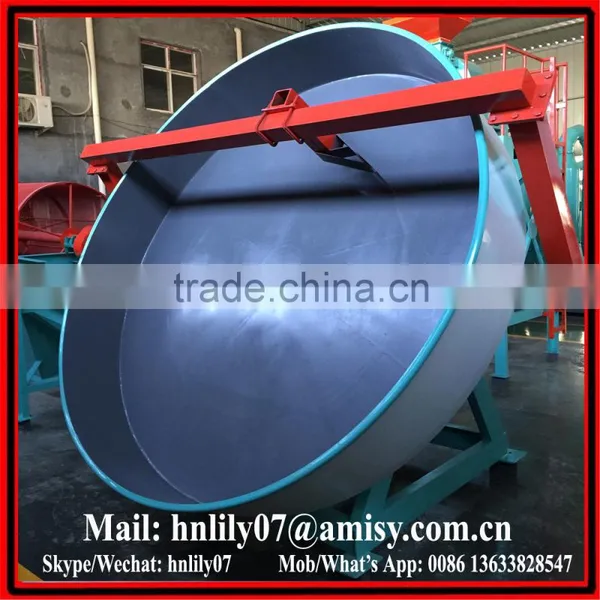

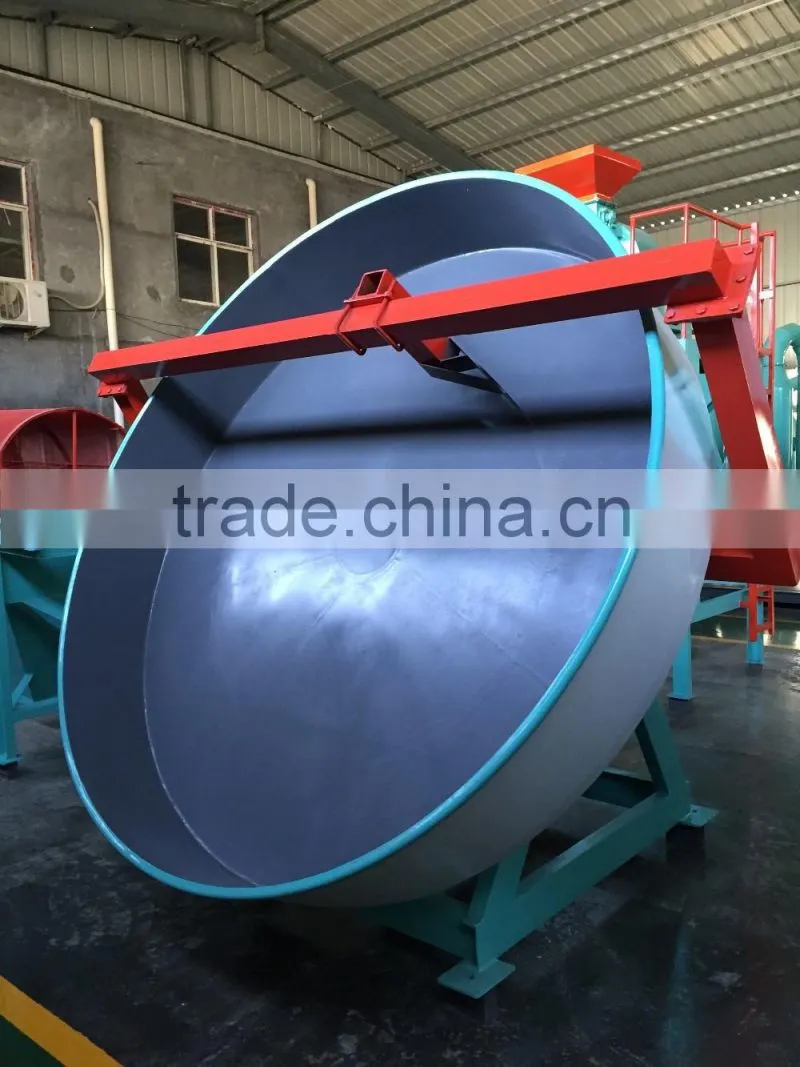

1>. Description of Fertilizer Disk Machine:
The Fertilizer Disk Machine is mainly used for fertilizer production line and other industries where need to transfer power into granules.
The Fertilizer Disk Machine adopts whole arc structure, granulating rate can reach more than 93%, greatly improve labor efficiency.
2>. Features of Fertilizer Disk Machine:
1. The Fertilizer Disk Machine reducer and motor using the flexible belt drive, stable starting,slow down the impact, improve the service life of the equipment.
2. The Fertilizer Disk Machine adopts multiple radiation steel plate stengthened, strong and
durable, never deformation.
3. Thickening, increase the chassis design, strong, do not need the anchor bolt, smooth operation .
4. Granulating uniform, high granulating rate, smooth operation, equipment, strong and durable, long service life, etc.
Model |
Disk diameter |
Disk Side Height |
Disk Volume |
Rotate speed |
Motor power |
Production capacity |
AMS-ZL2500 |
2500mm |
500mm |
2.5m3 |
13.6r/min |
7.5kw |
1-1.5T/h |
AMS-ZL2800 |
2800mm |
600mm |
3.7m3 |
13.6r/min |
11kw |
1-2.5T/h |
AMS-ZL3000 |
3000mm |
600mm |
4.2m3 |
13.6r/min |
11kw |
2-3T/h |
AMS-ZL3200 |
3200mm |
600mm |
4.8m3 |
13.6r/min |
11kw |
2-3.5T/h |
AMS-ZL3600 |
3600mm |
600mm |
6.1m3 |
11.3r/min |
11kw |
2-3.5T/h |

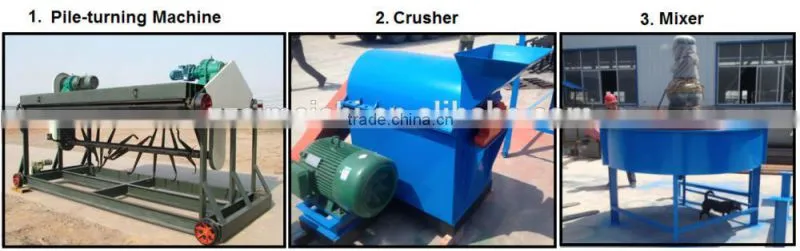

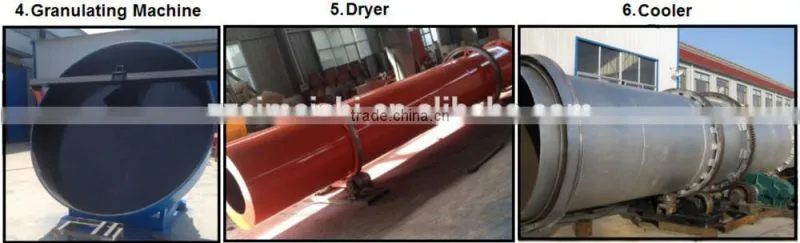

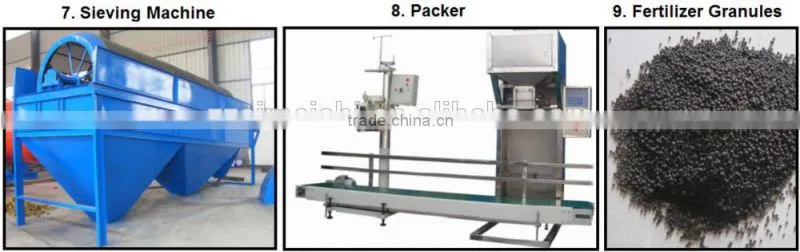

Whole Line of Fertilizer Disk Machine:

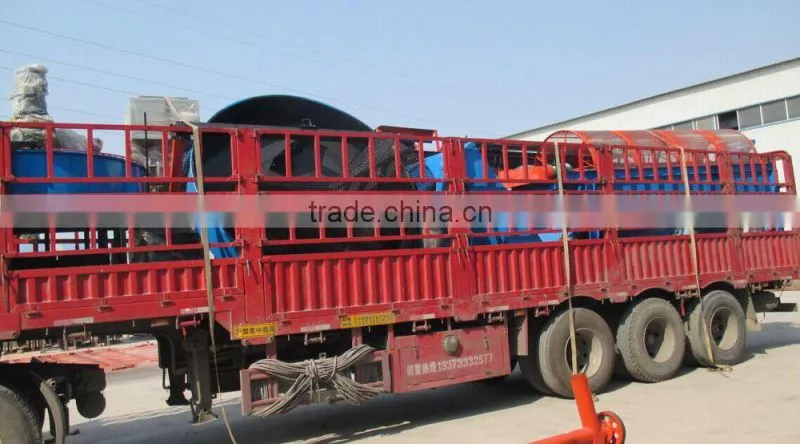

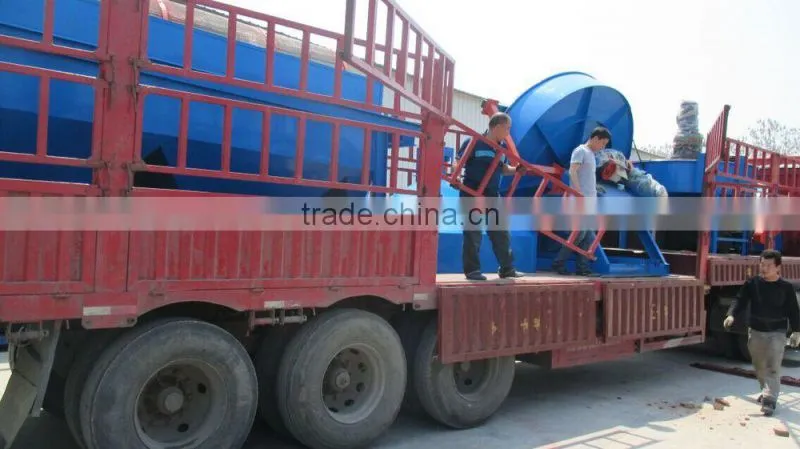

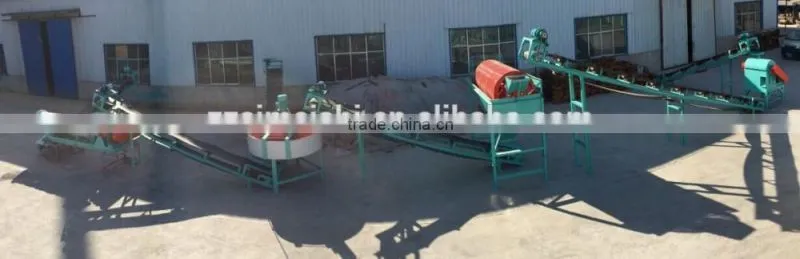

Export Whole Line to Mongolia in Apr,2015
Attn: Lily Wang
Mobile/ What's App: 86-136 3382 8547
Skype/Wechat: hnlily07
Mail: hnlily07(@)
