feed machinery
* Introduction of the feed machinery
The feed machinery is widely used in the granulation of corn, wheat, beans etc. The output pellets are used as animal and poultry feedstuff in livestock farm,
poultry farm, feed processing industry and aquaculture. Now, based on the outstanding features of its high throughput, low consumption and mature technology,
ring die feed machinery has become more and more popular and possess broad market share at home and aboard.
The working principle of the animal feed machinery.
Firstly, the material is transferred into the conditioner by the movable screw feeder. Then the conditioner can make different materials fully mixed. What’s more,
it can adjust the raw material moisture to ensure goodquality pellets. Then the suitable raw material is sent to pelletizing chamber. When the roller is moving in the
pelletizing chamber, it makes the raw material inletting the holes of ring die and form the pellets.
Several paring knives cut the pellets to size as they are extruded from the drum, after which they fall through the bottom discharge chute into a container ready for use.
Advantages of the feed machinery.
The feed machinery is designed more advanced and complex than flat die pellet mill.There are also two main advantages of ring die pellet mills.
1. Ring die feed machinery generate less wear and tear when pelletizing.
2. The feed machinery are more energy efficient than the flat die pellet mill.
3. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines.
4. The feed machinery will be much easier to produce high quality pellets and high efficiency output.
5. Ring die pellet mill for feed pellets does not need any external force to feed the material.As the grain material like wheat, corns, etc. is heavy enough to enter the
pelletizing chamber automatically and smoothly.
6. The advanced conditioner ensures the conditioning time>150 seconds, making the material cooked sufficiently so as to be helpful for the quality of pellets.
7. Double or three layers jacketed conditioners can be installed to meet special needs of aquatic feed.
Technical Parameters of the feed machinery
Model |
Power(kw) |
Capacity(t/h) |
Dimension(mm) |
|
SZLH250 |
22 |
0.5~1.5 |
2100*800*1300 |
|
SZLH300 |
30 |
1~3.5 |
2200*900*1500 |
|
SZLH320 |
37 |
2~7 |
2300*1000*2100 |
|
SZLH350 |
55 |
3~9 |
3200*1100*1700 |
|
SZLH400 |
90 |
3~12 |
3200*1300*1900 |
|
SZLH420 |
110 |
3~14 |
3500*1500*2800 |
|
SZLH508 |
132 |
5~22 |
2100*800*1300 |
|
SZLH558 |
185 |
5~24 |
2200*900*1500 |
|
The different models of the feed machinery :

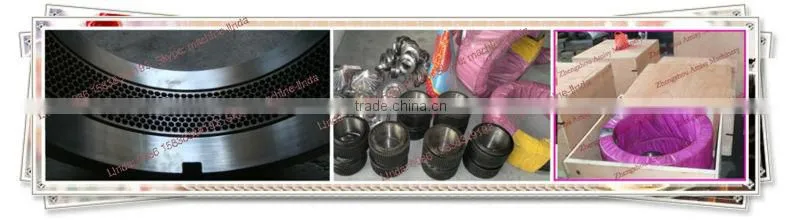

The roller and ring die of the feed machinery :
The loading and delivery of the feed machinery :
The production site of the feed machinery:
