High Efficiency Concrete Mixer Mixing Machine 0086 13903817193

High Efficiency Concrete Mixer Mixing Machine 0086 13903817193 photo-1
US$ 900 - 2,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
AMISY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name AMISY
Model Number JZC series
Motor Power 9.5/11.5/17kw
Mixing Power 4/5.5/11kw
Charging Capacity 350/500/750l
Reclaiming capacity 250/350/500
Speed of Mixing Drum 17r/min
Water Supply Mode automatic
Working Cycle Period 60s
Discharge Way automatic

Specifications

Concrete mixer mixing machine
Easy Operation and high efficiency and quality
Low power and price
ISO, CE certifica

 JZC series Concrete Mixer

I: Introduction of jzc series concrete mixer

JZC series concrete mixer are self-loading which can mix plastic and half dry hard concrete. The machine mixes when the double-cone mixer drum rotates clockwise and discharges when it rotates reversally. The mixer drum is driven by the ring gear. It has strong points such as reliable rotation, low noise and energy consumption, compact structure, smooth running. Moreover easy operation, high quality mix and production efficiency are also its advantages. it is the ideal machines for construction sits, road, bridge project, hydroelectric power and small and medium concrete components factory.

II.Main Parameter of  jzc series concrete mixer

ModelJZC250JZC350JZC500
Discharging capacity250L350L500L
Charging capacity350L500L 750L
Production capacity6-8m3/h10-14m3/h18-20m3/h
Mixer canister rev speed17r/min14r/min13r/min
Max aggregate diamter60mm60mm60-80mm
stiring motor4kw5.5kw11kw
lifting motor4kw5.5kw5.5kw
pump power0.55kw0.55kw0.75kw
max towing velocity20km/h20km/h20kg/h
size2260*1990*2750mm2766*2140*3000mm5226*2200*5460mm
weight1300kg1950kg3100kg

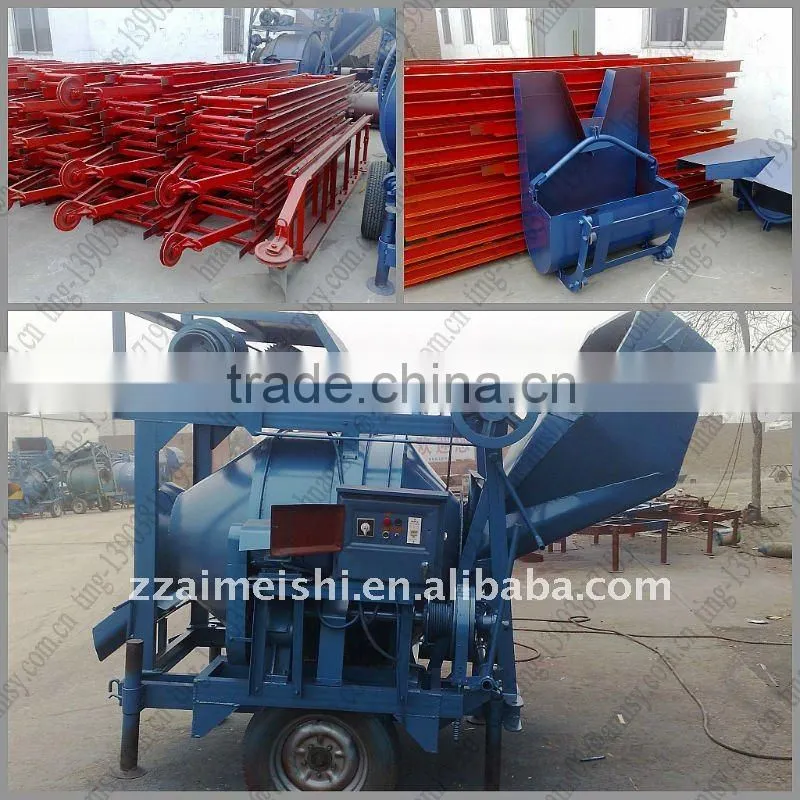

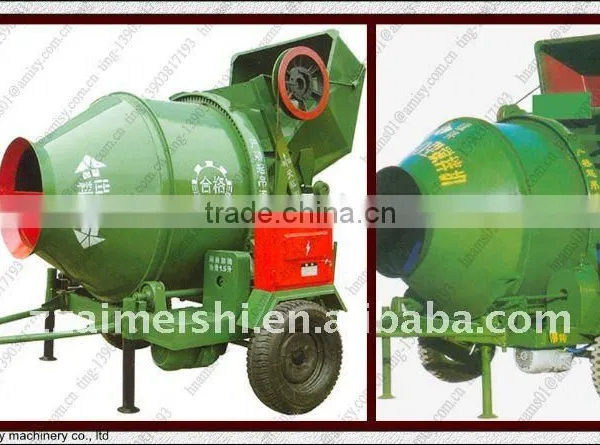

III. Image of diesel jzc series concrete mixer



high efficiency concrete mixer mixing machine 0086 13903817193



high efficiency concrete mixer mixing machine 0086 13903817193



high efficiency concrete mixer mixing machine 0086 13903817193

IV: Service of  jzc series  concrete mixer

 Befor-sale services: we guide clients to choose the best and suitable mchine, provide the advance, energy-saving and practical technological process. At the same time, we are responsible for the planing and design the machine

Sale service: Products must be inspected strictly before being sold,clients are invited to simulate and test machine on the spot; in accordance with the agreements stipulated in the contract, and then we are arrange delivery the machine

After-sale service: Our company will free offer the professional engineer to guide installation,training how to operation this machine. We are confrim that our clients can use the machine well and bring more and more befit to them.

We are design and product machines according to the speciall requirement by clients.

Guarantee period: 1 year

V. Contact Information for  jzc series concrete mixer

Name: Ting Song

Cell: 86 13903817193

Tel: 86 371 65903478

Fax: 86 371 65903401
