Biomass wood pellet making machine price
Brief introduction of the biomass wood pellet making machine price:
1. Making fuel pellets(wood pellets) using renewable materials like biomass and wood.
2. The fuel pellets are widely used for home and industrial heating and electricity-generating in large power plants.
3. Ring die biomass wood pellet making machine price for making wood pellets applies for raw material like wood waste or agricultural waste, such as corn/wheat/rice straw,
coffee/peanut shell, etc.The output pellets are used as fuels in electricity-generating and water –heating in power plant etc. When there is need for mixture of different materials, the conditioner can mix them thoroughly.
Ring die pellet mill working principle of the biomass wood pellet making machine price .
1. The material is transferred into the conditioner by the movable screw feeder.
2. Then the conditioner can make different materials fully mixed. What’s more, it can adjust the raw material moisture to ensure good-quality pellets.
3. Then the suitable raw material is sent to pelletizing chamber. When the roller is moving in the pelletizing chamber, it makes the raw material inletting
the holes of ring die and form the pellets. Several paring knives cut the pellets to size as they are extruded from the drum, after which they fall through
the bottom discharge chute into a container ready for use.
Advantages of the biomass wood pellet making machine price.
Ring die pellet mill is designed more advanced and complex than flat die pellet mill.There are also two main advantages of ring die pellet mills.
1. Ring die pellet mill generate less wear and tear when pelletizing.
2. Ring die pellet mill are more energy efficient than the flat die pellet mill.
3. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines.
4. The ring die pellet mill will be much easier to produce high quality pellets and high efficiency output.
The Technical Parameter of the biomass wood pellet making machine price
Model |
Capacity T/H |
Main Power |
feeder power |
Conditioner power |
Ring die Diameter |
pellets size(mm) |
Dimension (mm) |
MZLH320 |
0.2--0.4 |
37 KW |
0.55kw |
2.2kw |
φ320mm |
φ6.0,φ8.0,φ10.0,φ12.0 |
2100*800*1300 |
MZLH350 |
0.4--0.6 |
55 KW |
0.55kw |
2.2kw |
φ350mm |
2200*900*1500 |
|
MZLH420 |
1-1.2 |
90 KW |
1.5kw |
5.5kw |
φ420mm |
3200*1100*1700 |
|
MZLH508 |
1.5--2.0 |
132 KW |
1.5kw |
5.5kw |
φ508mm |
3200*1300*1900 |
|
MZLH558 |
2.5-3.5 |
185KW |
1.5kw |
5.5kw |
φ558mm |
3500*1500*2800 |

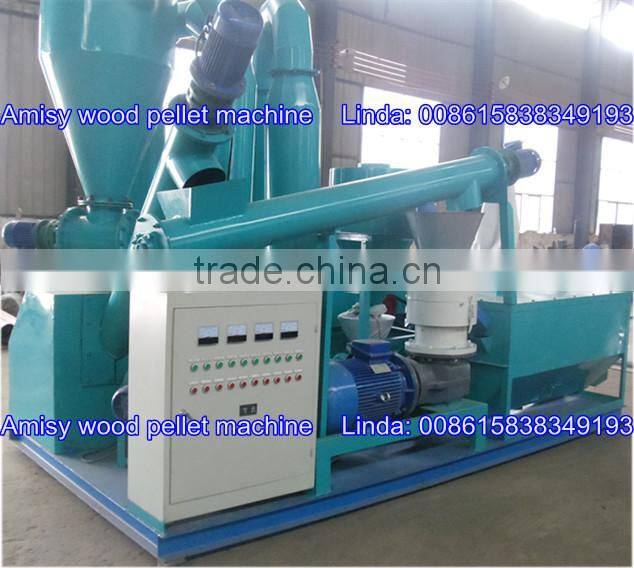

The picture of the biomass wood pellet making machine price:

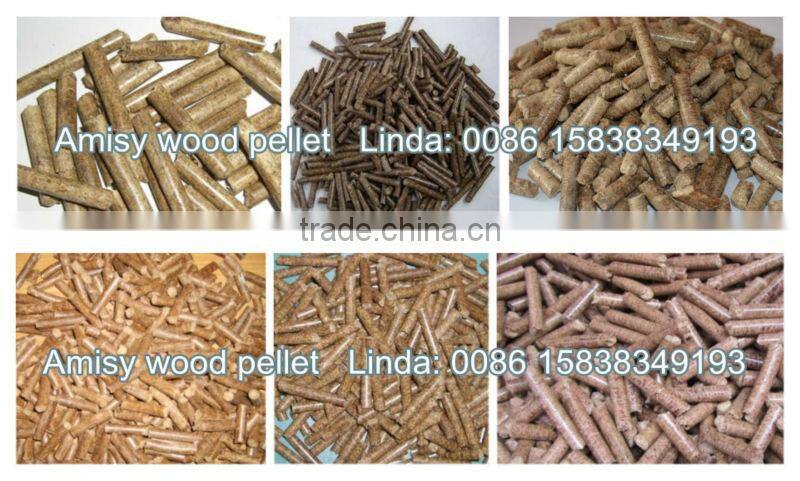

Finished pellets of the biomass wood pellet making machine price
Size range of making wood pellets:6mm, 8mm,9mm,10mm ,12mm

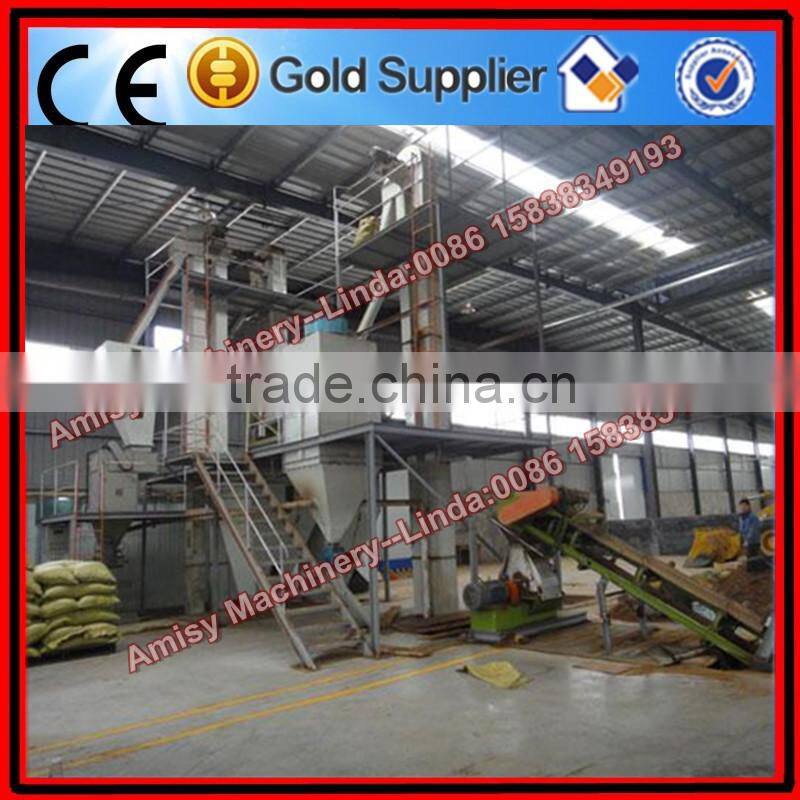

The production site of the biomass wood pellet making machine price:
