pellet making machine 0015838349193
1. Brief Introduction of the pellet making machine
1. Ring die pellet making machine is specially designed for mass industrial production of sawdust wood pellets.
2. The raw materials of the pellet making machine are easy to obtain, like groundnut shell, sawdust, paddy straw, wheat straw, palm husk, rice husks, etc and many other agro and forestry wastes.
3.The final pellets of the Pellet production line can be used for industrial boilers and large power plants as well as home heating.
2. Remarkable Features of the pellet making machine
1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive.
2. The drive part of the pellet making machine including motor optimize, the high quality bearings and oil seals ensure high efficient and steady driving with low noise.
3. The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, corn, wheat, and rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.
4. Special design of feed conditioner adopts the frequency-conversion speed regulating control to guarantee wood pellets quality.
5. The ring die of the wood pellet production line is made by international advanced technology, has long service life and ensure smoothly pelletizing and high quality.
6. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
7. Permanent magnet device can remove impurities in the pelletizing process.
3. Operating Instructions of the pellet making machin
1. Have a better understanding of the wood pellet making machine structure and performance, and strictly follow the operation instructions and professional technical personnels’ guidance.
2. Pay attention to regular maintenance and repair so as to extend the machine service life.
3. The operator should stay at the working area while wood pellet production line is under running condition.
4. It’s wise to choose appropriate wood pellet production line according to different raw materials and capacity requirements.
4. The Technical Parameter of the pellet making machine
Model |
Capacity T/H |
Main Power |
feeder power |
Conditioner power |
Ring die Diameter |
pellets size(mm) |
Dimension (mm) |
MZLH320 |
0.2--0.4 |
37 KW |
0.55kw |
2.2kw |
φ320mm |
φ6.0,φ8.0,φ10.0,φ12.0 |
2100*800*1300 |
MZLH350 |
0.4--0.6 |
55 KW |
0.55kw |
2.2kw |
φ350mm |
2200*900*1500 |
|
MZLH420 |
1-1.2 |
90 KW |
1.5kw |
5.5kw |
φ420mm |
3200*1100*1700 |
|
MZLH508 |
1.5--2.0 |
132 KW |
1.5kw |
5.5kw |
φ508mm |
3200*1300*1900 |
|
MZLH558 |
2.5-3.5 |
185KW |
1.5kw |
5.5kw |
φ558mm |
3500*1500*2800 |
5. The finishes pellets of the pellet making machine
Size range of making wood pellets - 6mm, 8mm, 10mm,12mm
Quality guarantee - 2 years guarantee for main body.
6. The Process of complete pellet making machine
Our complete pellet making machine/ wood pellet production line has a compact structure, low energy consumption and is highly efficient. Every machine in the wood
pellet plant can be designed and manufactured according to customers’ requirements. Professional technical guidance of installing the machinery is also available.The whole process of wood pellet line can be highly automatically controlled. It includes the below processes.
Wood crusher-sawdust dryer-pellet making machine-pellet packing.
Crushing process-Drying process-Pelletizing process-Cooling process-Packing process
7. The pictures of the Pellet making Machine
8. The Production Spot of the Pellet Making Machine line

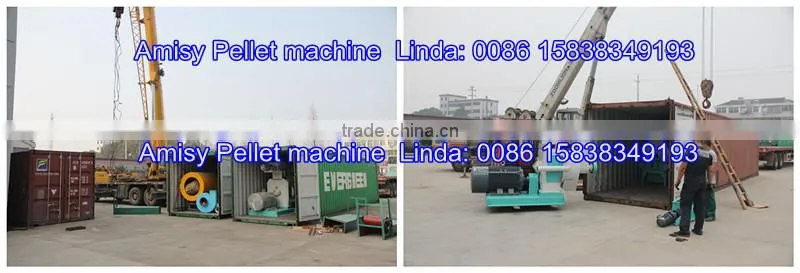

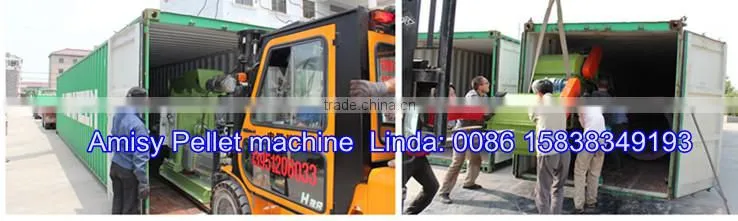

9. The delivery of the Wood Pellet Making Machine line
Small wood pellet making machine/wood pellet production line
this small complete wood pellet production line normally include the crusher, dryer, pellet making, pellet cooling, pellet packing parts,
include many different machines, here i give you the brief introduction for the main machine, if you need the details,
pls contact me, i will send you the quotation sheet with details:
