geomembrane pond liner

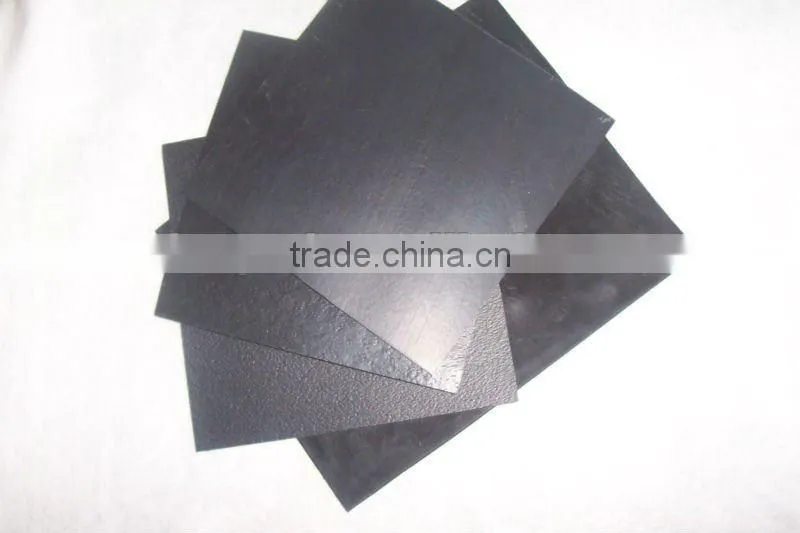

Smooth High Density Polyethylene Geomembrane
Specifications:
Width:2000-7000mm Thickness:0.3-3.0mm implementation of the standards: GM-13 (CJ/T 234-2006)
Main items and indicators:

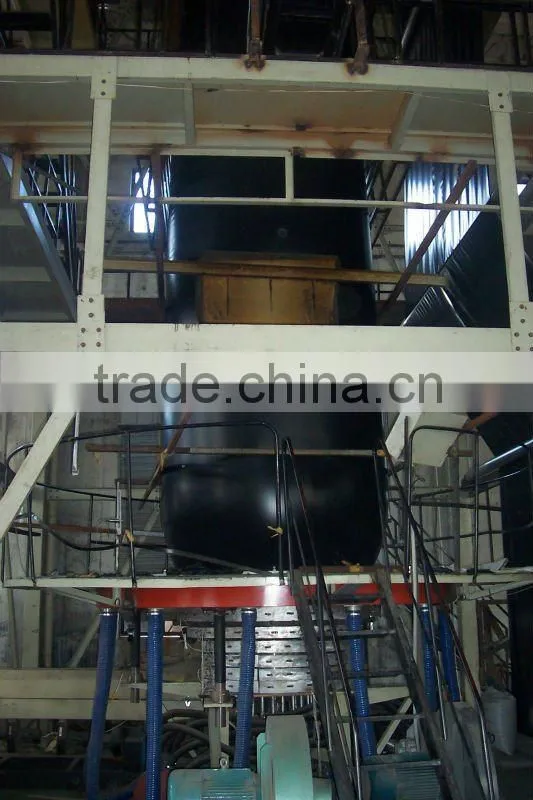

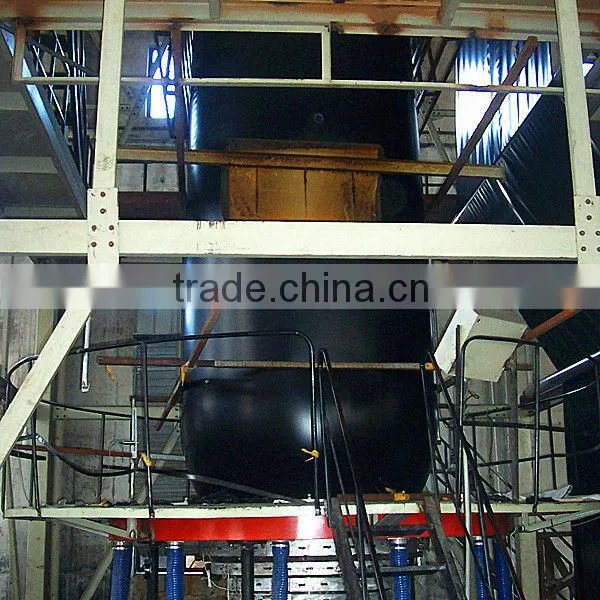

Use and description:Pretty Lion brand of high quality polyethylene HDPE Geomembrane resins, is made by the three co-extrusion technology.
Features: Good physical and mechanical properties, high tear strength, good deformation adaptability, resistance to puncture, anti-aging, anti-UV, anti-oil, anti-salt, anti-acid and alkali, corrosion resistance, high and low tempreture resistance, non-toxic, long service life. Good effects of waterproof, drainage, anti-seepage and moistureproof. Complete specifications, width and thickness. Low cost and simple construction.
Application:
- 1. Environmental protection, sanitation (such as solid waste landfills, sewage treatment plants, power plants regulate pools, industrial, hospital solid waste, etc.)
- 2. Conservancy (such as rivers, lakes and reservoirs dam seepage, lost circulation, strengthening, drainage of seepage, vertical heart wall, slope protection, etc.)
- 3. Municipal works (subway, underground engineering building, green roof, roof garden seepage, sewage pipe lining, etc.)
- 4. Garden (artificial lake, river, reservoir, golf course ponds substrate, slope protection, green lawn water moisture, etc.)
- 5. Petrochemical (chemical plants, oil refineries, gas station storage tanks impervious, chemical reactor, settling tank lining, etc.)
- 6. Mining (washing, the heap leaching pool, the ash-field, dissolution, the precipitation, the yard, the substrates of tailings seepage, etc.)
- 7. Transport facilities (road base reinforcement, Subway, Culvert seepage)
- 8. Agriculture (channel, diversion canal, reservoir, reference pool, water storage pond, irrigation systerm seepage)
- 9. Aquaculture (intensive, factory farming pond, fish ponds, shrimp ponds lining, sea cucumber circle slope protection, etc.)
- 10. Salt (salt crystal pool, brine pool thatch cover, salt membrane, plastic thatch film of salt pond)
Ordinary High Density Polyethylene Geomembrane (GH-1 Type)
Item |
Index |
||||||||
Thickness, mm |
0.30 |
0.50 |
0.75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
Density, g/cm3 |
0.940 |
||||||||
Yield strength (MD/CD),≥N/mm |
3 |
5 |
8 |
11 |
13 |
16 |
22 |
26 |
33 |
|
Break strength (MD/CD),≥N/mm |
5 |
8 |
12 |
17 |
20 |
24 |
34 |
40 |
51 |
|
Yield elongation (MD/CD), ≥% |
/ |
/ |
/ |
11 |
|||||
|
Break elongation (MD/CD), ≥% |
450 |
||||||||
Right angle tear strength (MD/CD),≥N |
24 |
40 |
60 |
80 |
100 |
120 |
160 |
200 |
240 |
Puncture-resistant strength, ≥N |
51 |
85 |
125 |
170 |
200 |
250 |
340 |
400 |
500 |
Carbon black content, % |
2.0-3.0 |
||||||||
Environmental Smooth High Density Polyethylene Geomembrane (GH-2S Type)
Item |
Index |
||||||
Thickness, mm |
0.75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
Density, g/cm3 |
0.940 |
||||||
Yield strength (MD/CD),≥N/mm |
11 |
15 |
18 |
22 |
29 |
37 |
44 |
Break strength (MD/CD),≥N/mm |
20 |
27 |
33 |
40 |
53 |
67 |
80 |
Yield elongation (MD/CD), ≥% |
12 |
||||||
Break elongation (MD/CD), ≥% |
700 |
||||||
Right angle tear strength (MD/CD),≥N |
93 |
125 |
160 |
190 |
250 |
315 |
375 |
Puncture-resistant strength, ≥N |
240 |
320 |
400 |
480 |
640 |
800 |
960 |
|
Environmental stress cracking time (single point of incision constant load stretching), ≥h |
/ |
300 |
|||||
Carbon black content, % |
2.0-3.0 |
||||||
Oxidation induction time (OIT), min |
Standard OIT≥100 High pressure OIT≥400 |
||||||
|
Oven aging at 85℃ Standard OIT retained after 90 days,≥% |
55 |
||||||
|
UV resistance OIT retained after 1600hrs, ≥% |
50 |
||||||
