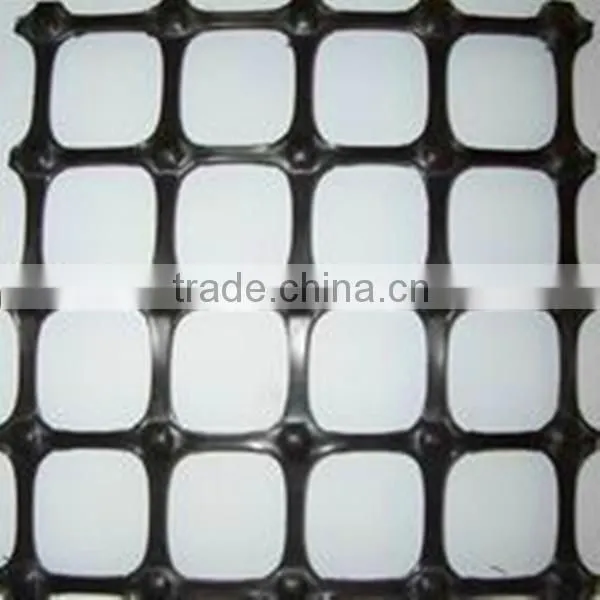

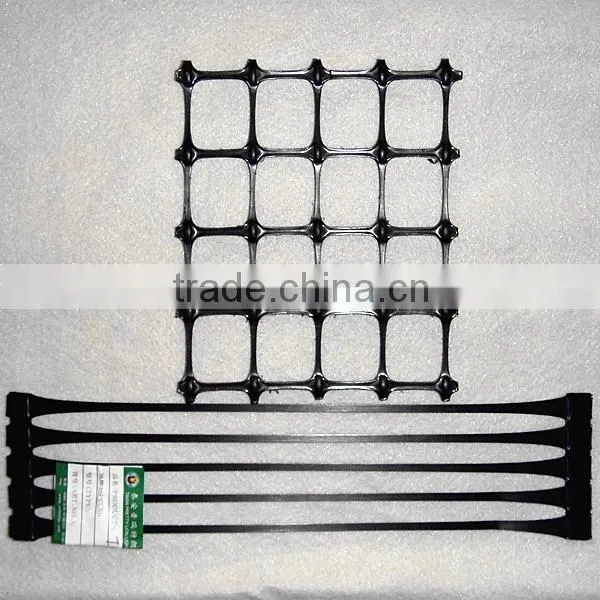

plastic soil stabilization geogrid
material:PP or PE
tensile strength:35KN/m-160KN/m
width:1m 2.5m 4m
length:30m-100m
type: plastic soil stabilization geogrid

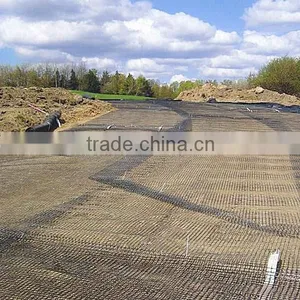

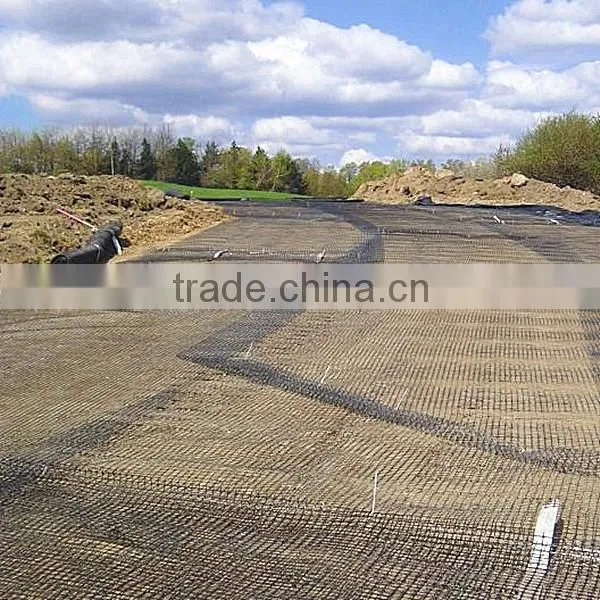

It is mainly used in highway and railroad to reduce the subsiding difference ofthe roadbed and bridgehead, lower the vibration of the vehicles and theroadbed, slower the roadbed structure distortion to guarantee the security and comfort.
To lay the geogrid in the backfill soil can increase the shearing strength and the whole character in middle terms, reduce the mid-term filling quantity, make the soft base more convenient, lower the construction cost.
When used in the dam design, it can be as the muscle structure to improve the bearing distortion performance of the dam to avoid breaking.
PP Uniaxial Geogrid Technical Data
Specs |
Tensile strength (kN/m) |
Tensile strength at 2% strain (kN/m) |
Tensile strength at 5% strain (kN/m) |
Elongation % |
TGDG35 |
≥35.0 |
≥10.0 |
≥22.0 |
≤10.0 |
TGDG50 |
≥50.0 |
≥12.0 |
≥28.0 |
|
TGDG80 |
≥80.0 |
≥26.0 |
≥48.0 |
|
TGDG120 |
≥120.0 |
≥36.0 |
≥72.0 |
|
TGDG160 |
≥160.0 |
≥45.0 |
≥90.0 |
|
TGDG200 |
≥200.0 |
≥56.0 |
≥112.0 |
HDPE Uniaxial Geogrid Technical Data
Specs |
Tensile strength (kN/m) |
Tensile strength at 2% strain (kN/m) |
Tensile strength at 5% strain (kN/m) |
Elongation % |
TGDG35 |
≥35.0 |
≥7.5 |
≥21.5 |
≤11.5 |
TGDG50 |
≥50.0 |
≥12.0 |
≥23.0 |
|
TGDG80 |
≥80.0 |
≥21.0 |
≥40.0 |
|
TGDG120 |
≥120.0 |
≥33.0 |
≥65.0 |
|
TGDG160 |
≥160.0 |
≥47.0 |
≥93.0 |
PP Biaxial Geogrid Technical Data
Specs |
Tensile strength (MD/CD)(kN/m) |
Tensile strength at 2% strain (MD/CD)(kN/m) |
Tensile strength at 5% strain (MD/CD)(kN/m) |
Elongation (MD/CD)% |
TGSG1515 |
≥15.0 |
≥5.0 |
≥7.0 |
≤15.0/13.0 |
TGSG2020 |
≥20.0 |
≥7.0 |
≥14.0 |
|
TGSG2525 |
≥25.0 |
≥9.0 |
≥17.0 |
|
TGSG3030 |
≥30.0 |
≥10.5 |
≥21.00 |
|
TGSG3535 |
≥35.0 |
≥12.0 |
≥24.0 |
|
TGSG4040 |
≥40.0 |
≥14.0 |
≥28.0 |
|
TGSG4545 |
≥45.0 |
≥16.0 |
≥32.0 |
|
TGSG5050 |
≥50.0 |
≥17.5 |
≥35.0 |
