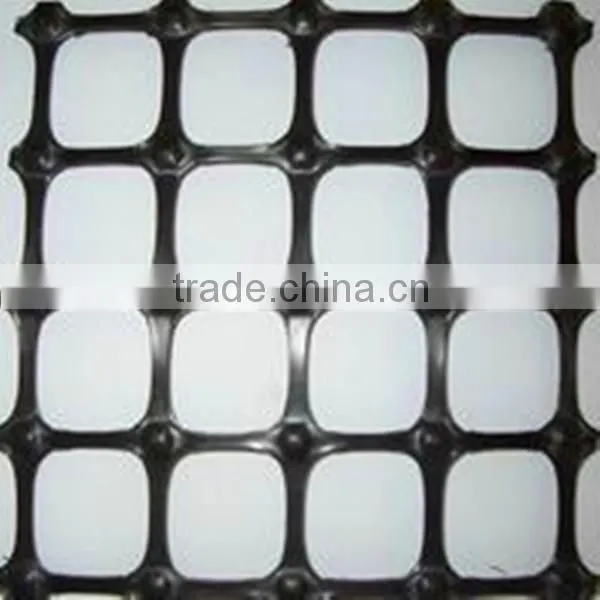

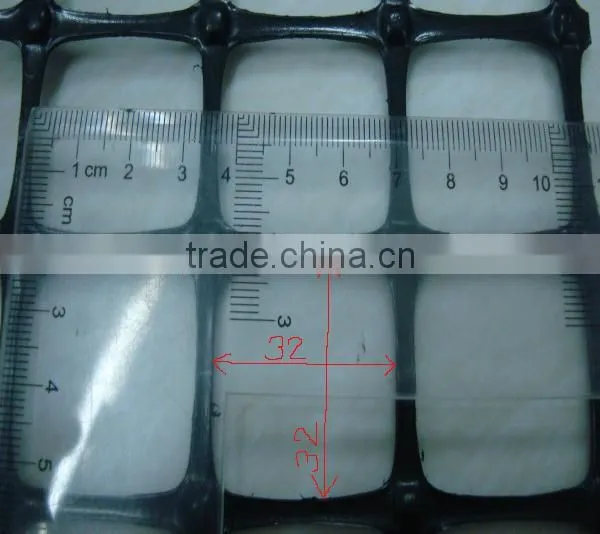

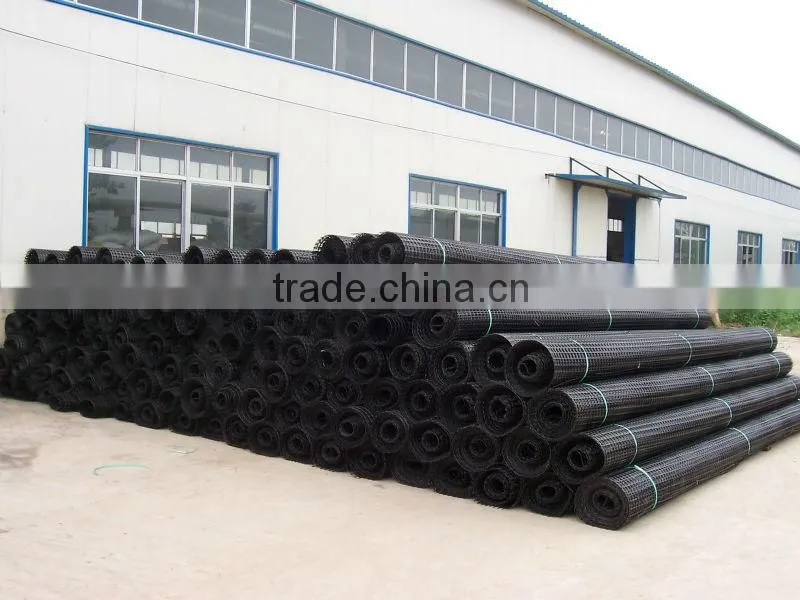

PP Biaxial Geogrid
- 400000 Square Meter / Square Meters per Month
- QINGDAO
- T/T
- Polymer honeycomb restraint system for road honeycomb cell slope protection
- Polymer honeycomb confinement system ecological slope protection plastic geocell
- Ultrasonic welding of HDPE gravel grid geocell with a height of 50-200mm for soil stability
- Government large-scale reservoir flood control reinforcement honeycomb geogrid chamber
- Polymer honeycomb geocell for road slope greening TGLG-PE-75-600-1.5
- High strength honeycomb geogrid chamber for grassing and slope protection TGLG-PE-75-500-1.5
Product Details
Place of Origin: | Shandong, China | Brand Name: | pretty lion | Model Number: | PLB010301 |
Material: | Plastic |
Product Description
APPLICATIONS OF GEOGRID PP biaxial geogrid
It is mainly used in highway and railroad to reduce the subsiding difference ofthe roadbed and bridgehead, lower the vibration of the vehicles and theroadbed, slower the roadbed structure distortion to guarantee the security and comfort.
To lay the geogrid in the backfill soil can increase the shearing strength and the whole character in middle terms, reduce the mid-term filling quantity, make the soft base more convenient, lower the construction cost.
When used in the dam design, it can be as the muscle structure to improve the bearing distortion performance of the dam to avoid breaking.
Technical data
Item | Art. No. | PLB010301 | PLB010302 | PLB010303 | PLB010304 | PLB010305 |
Specs | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | |
Unit weight,g/m2 | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | |
Width,m | 4.0+0.2/-0 | |||||
Tensile strength(MD), kN/m≥ | 15 | 20 | 30 | 40 | 45 | |
Tensile strength (CD),kN/m≥ | 15 | 20 | 30 | 40 | 45 | |
Elongation(MD),%≤ | 13 | |||||
Elongation(CD),%≤ | 16 | |||||
Tensile strength at 2% strain(MD),kN/m≥ | 5 | 8 | 11 | 13 | 16 | |
Tensile strength at 2% strain(CD),kN/m≥ | 7 | 10 | 13 | 15 | 20 | |
Tensile strength at 5% strain(MD),kN/m≥ | 8 | 10 | 15 | 16 | 25 | |
Tensile strength at 5% strain(CD),kN/m≥ | 10 | 13 | 15 | 20 | 22 |
