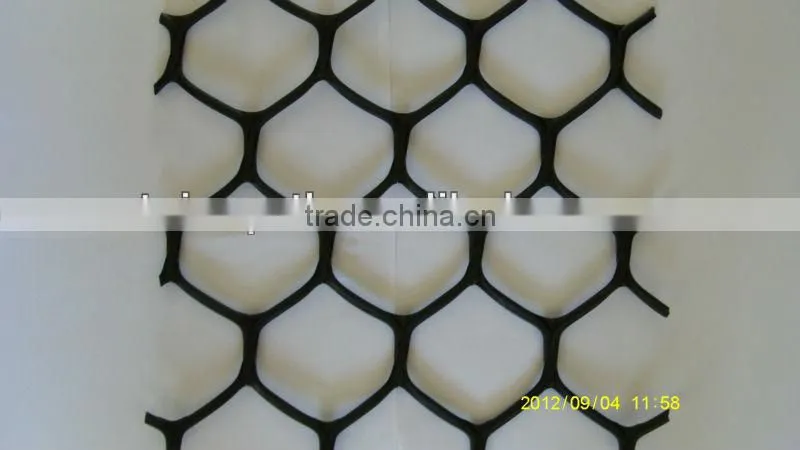

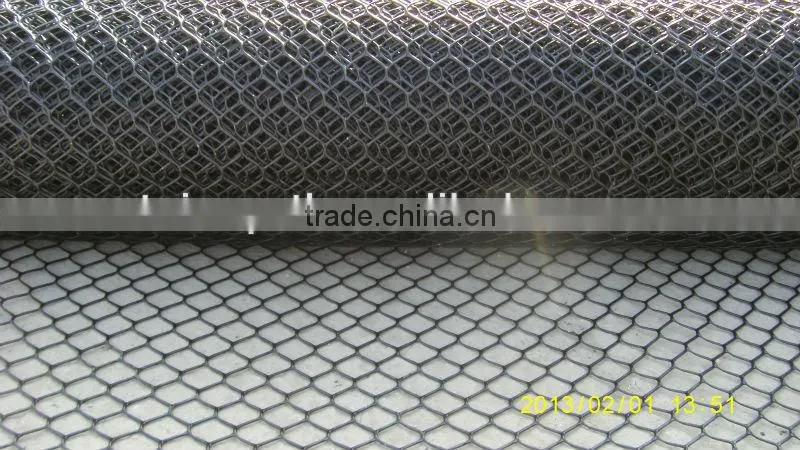

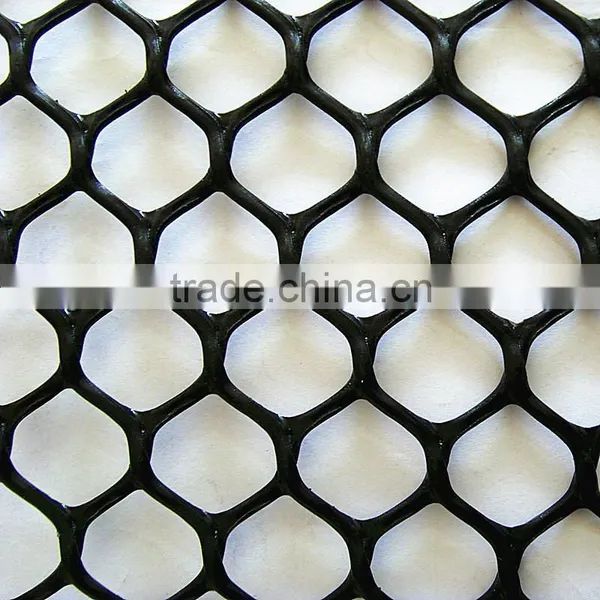

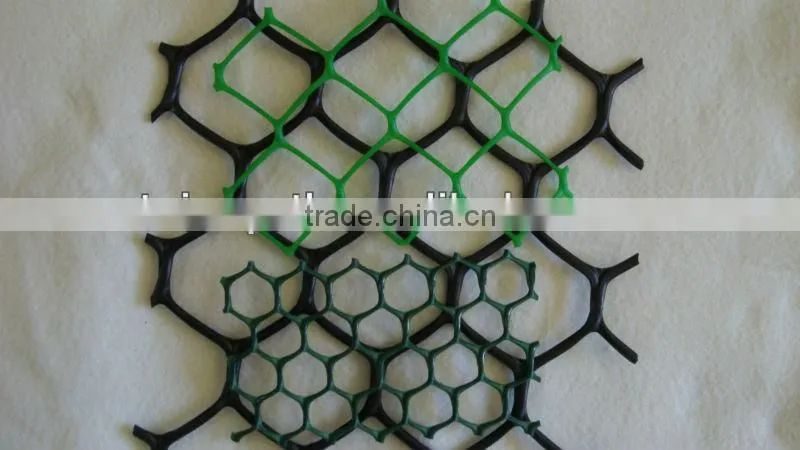

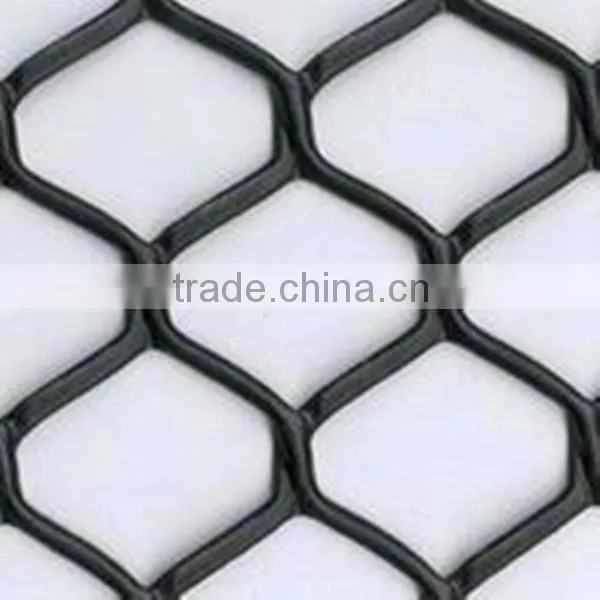

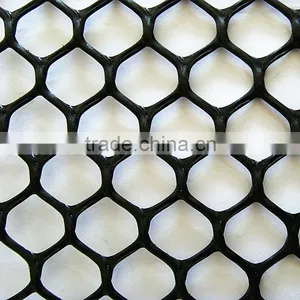

plastic Geonet
1.material:HDPE+carbon black
2.type:CE121,131,151,153
3.wheight:450-730g/m2

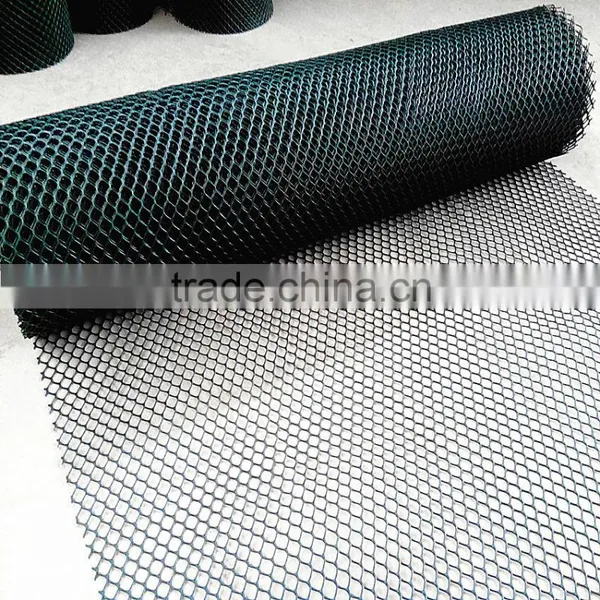

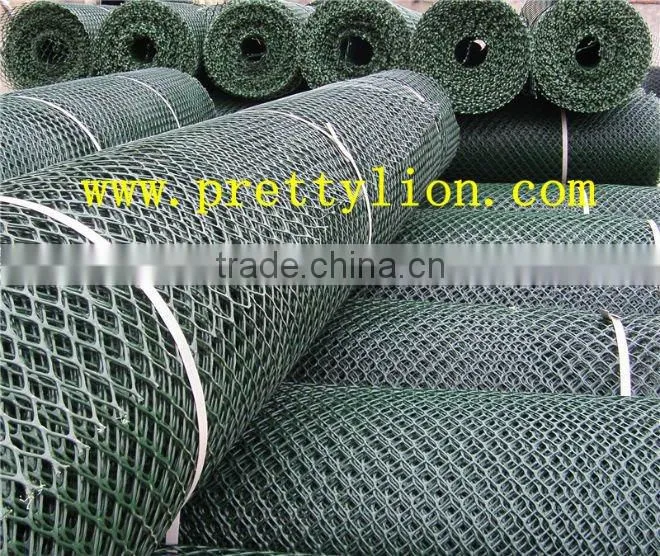

4.roll size:2m or 2.5m*40-50m

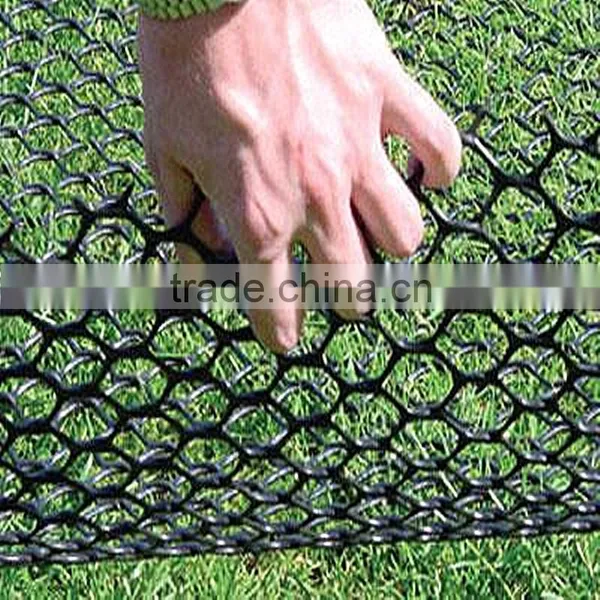

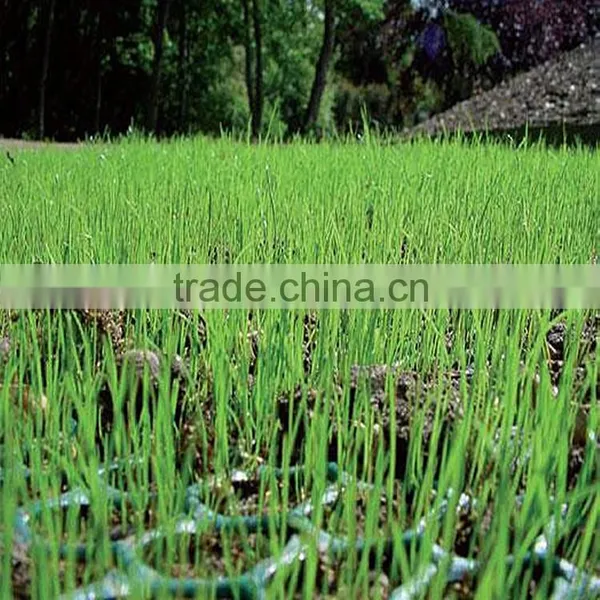

APPLICATIONS OF plastic Geonet Geonet can be used in the soft soil stabilization, base reinforcement, embankments over soft soils, seacoast slope protection and reservoir bottom reinforcement, etc
It prevents the slope rock from falling down ,which avoids the hurt to the human beings and the vehicle on the road; It prevents the road dregs packed by geonet from being washed away ,avoids the roadbed distortion and improves the stability of the roadbed; laying the geonet reinforces the road surface ,avoids development of the reflection crack. As reinforcing material of filling soil in retaining walls, it disperses the earth body stress and restricts the side-displacement. The stone cage, made of geonet, can prevent erosion ,collapsing and lost of water and soil when being used in dyke and rock slope protection.
Technical datas
Item |
Art.No. |
PLB0201 |
PLB0202 |
PLB0203 |
PLB0204 |
PLB0205 |
PLB0206 |
PLB0207 |
Type |
CE111 |
CE121 |
CE131 |
CE131B |
CE151 |
CE152 |
CE153 |
|
Width,m |
2.5 |
2.5 |
2.5 |
2.0 |
2.5 |
1. 25 (double layers) |
1.0 |
|
Mesh size,mm |

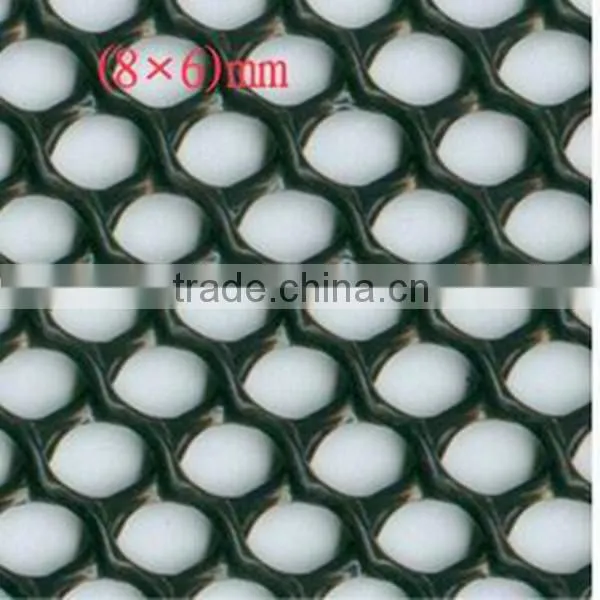

(8x6)±1 |
(8x6)±1 |
(27x27)±2 |
(27x27)±2 |
(74x74)±5 |
(74x74)±5 |
(50x50)±5 |
|
Thickness,mm |
2.9 |
3.3 |
5.2 |
4.8 |
5.9 |
5.9 |
5.9 |
|
Roll length,m |
40 or as the clients requirement |
|||||||
Unit weight,g/m2 |
445±35 |
730±35 |
630±30 |
630±35 |
550±25 |
550±30 |
550±30 |
|
Tensile strength,kN/m |
≥2.0 |
≥6.0 |
≥5.6 |
≥5.6 |
≥4.8 |
≥4.8 |
≥4.2 |
|
