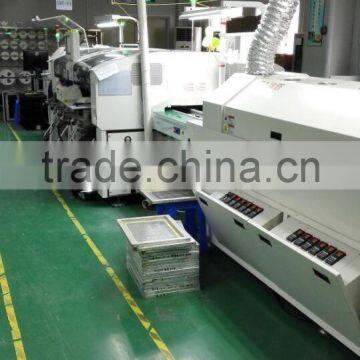

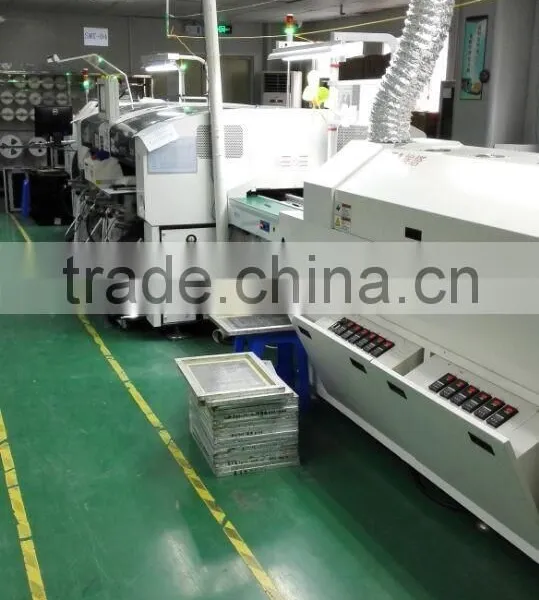

SMT solutions OEM/ODM
Specifications
Printed circuit board
1:Quick leadtime
2:Reliable quality
3.Low cost with high quality
- PCB and PCBA capacity:
- Active and passive components source directly from original manufacturer
- High-precision 0201 size components SMT, through hole assembly technology and lead-free
- IC pre-programming/burning online
- Function testing as requested
- Complete unit assembly (which including plastics, metal box, coil, cable inside)
- PCB and PCBA capability and services:
- Single-/double-side and multilayer PCB
- Materials: CEM-1, FR-4, FR-4 high TG and aluminum base
- Surface treatment: HAL, HAL lead-free, immersion gold/silver/tin and OSP
- Standards: 94V0 compliant, adhere to IPC 610 class 2 International PCB
- Quantities range from prototype to medium batch production
- High-precision E-resting includes: AOI, x-ray inspection, ICT, BGA repair device and function test
-
Leadsintec offers pcb, printed ciruit, circuit board, Printed Circuit Board fabrication, providing consistent high quality and affordable price of Printed Circuit Boards. Whether it is a single board for a prototype or large volume production runs, leadsintec can come to meet your PCB fabrication needs in a variety of materials and technologies. We make single, double and multi-layer printed circuit boards in varying complexities
Circuit Board Specifications
Maximum Panel size: 19.7” x 31.5”
Maximum Number of Layers: 1-30
Copper Thickness: 0.5 oz to 5.0 oz
Minimum Line Width: 3 mil
Minimum Line spacing: 3 mil
Smallest Hole: 0.006”
Blind, Buried and plugged Vias
Controlled impedanceMaterial
Thickness: 0.008” to 0.240”
FR-4
High TG FR-4
PTFE
Aluminum Base
Rogers
Specialized material per your requestSolder Mask
LPI–Green, Yellow, Black, Red, Blue etc.
Peelable Mask
Inspection Methods
100% Visual inspection
Electrical testing – Flying probe or Nails Bed
Sample lot inspection
Cross sectioningFinal Finishes
SMOBC (HASL)
Carbon
Selective Gold Plating
Hard and Soft Gold
Immersion Gold
Immersion Silver
Immersion Tin
OSP
