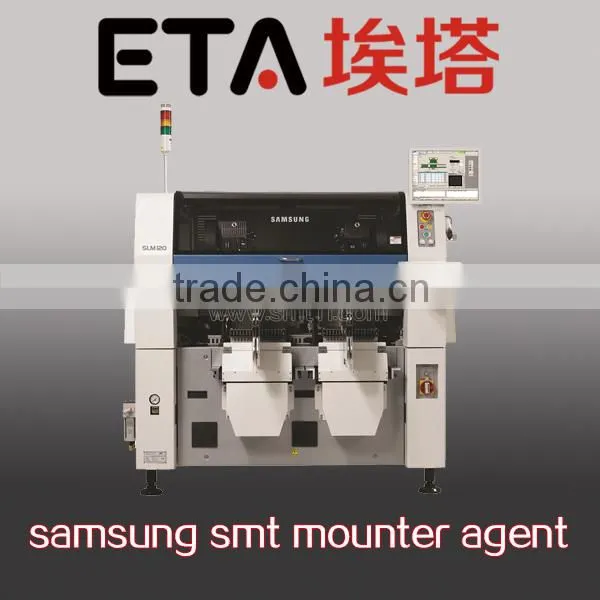

SAMSUNG SLM120 LED MOUNTER
Main product: SMT mounter, SMT machine, SMT shooter, chip mounter, SMT equipment, BGA assembly machine, pick and place machine, SMT placement machine, SMT mounting machine, electronic equipment, PCB machine and place machine, SMT assembly, SMT/SMD equipment, SMD equipment
Pick & Place Machine -SM481 Flexible Chipshooter
Highly reliable SM481 is a new generation of chipshooter from Samsung Techwin. Single Gantry with 10 Placement Heads
Cost of ownership is extremely low due to the simple yet reliable X/Y/Z structure.
Easy to use software allows users to quckly learn the machine and get the most from it. Standard component library has more than 1800 shapes and the polygonic algorithm automatically detects component outlines on difficult components.
Features:
Built in vacuum pump making air consumption just 50Nl/min! ! ! !
Easily Identifieable Feeders
Adaptive Pick Up
Front and back operation as standard
Large PCB Size of 460mm X 400mm
01005 component recognition as standard
120 X 8mm Feeder Capacity
High Accuracy ± 50µ @3σ /Chip
Small Footprint of just 1650mm X 1680mm X 1530mm
4.7kVA Max Power
Placement Rate: 39'000cph optimum
Placement Accuracy: ± 50µ @3σ /Chip
± 30µ @3σ /QFP
Component Range: 01005~16mm² By flying vision
Optional Camera available for devices up to 42mm²
Max Height = 10mm, (15mm Optional)
PCB Size: 460mm X 400mm
PCB Thickness: 0.38 ~ 4.2mm
Feeder Capacity: 120 X 8mm
Options:
Fixed Cameras for larger devices
15mm Component height optional (Factory order only)
Board Size 510mm X 460mm
Board Size 610mm X 510mm
Board Size 740mm X 460mm
Intelligent Feeder and Parts system
Feeder Docking Carts
Flux Dipping Feeder
