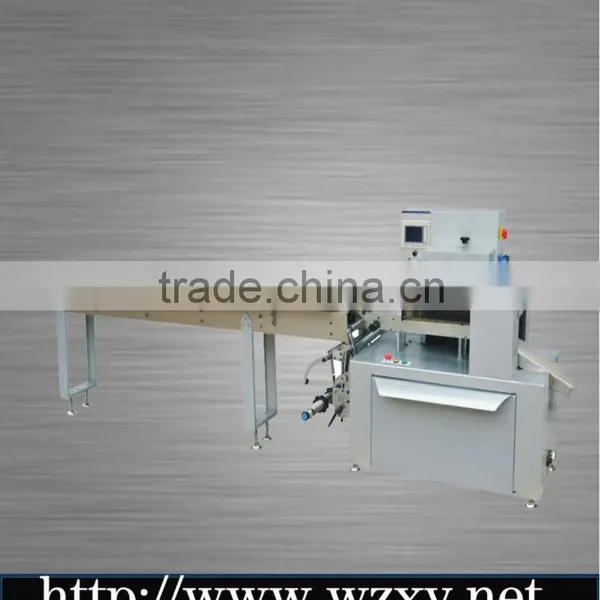

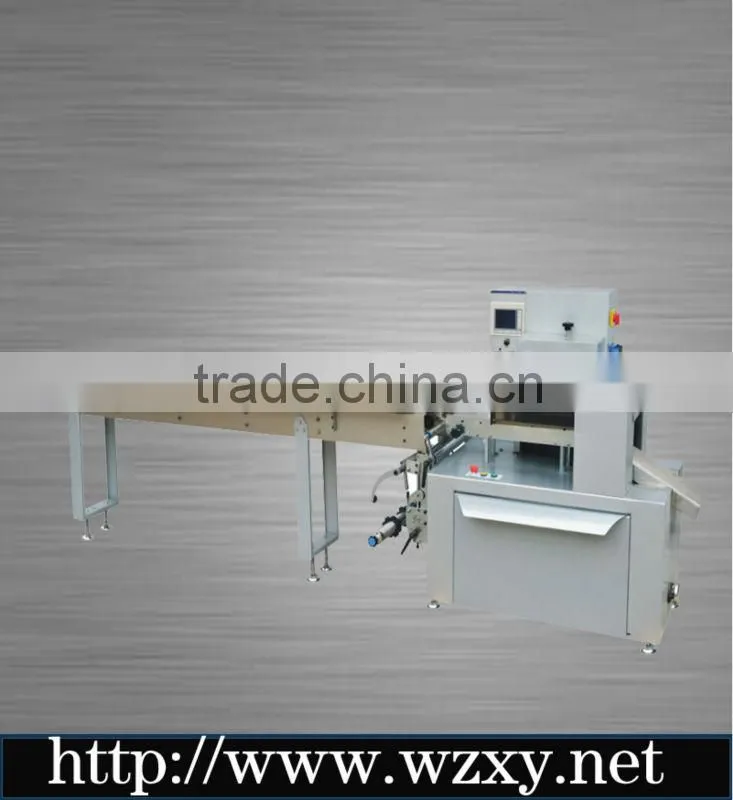

Help CenterAutomatic Flow Packing Machine
Related Products
Specifications
1. S/S body2. good after sell service
3. easy to operation
4. CE Certification
Features
1. Interface features easy and quick setting and operation.
2. Self failure diagnosis, clear failure display.
3. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
4. Temperature independent PID control, more suitable for packaging different materials.
5. Positioned stop function, without sticking knife or wasting film.
6. Simple driving system, reliable working, convenient maintenance.
7. All controls realized through software, easy for function adjusting and technical upgrade.
Step advan paper feeding is accurate and easy to adjust The stepper motor is capable of self compensating,the photoelectric tracking is precise and quick,saving films and reducing COSTS.Directheating vertical sealing mechanism makes sealed parts firm and nice Differential mechanism materials feeding can be adjusted without stop The whole unit is attached by a stainless steel cover,which keeps it clean and sanitary,in accordance with food sanitation standards various accessories are available,such as code printer,nitrogen cha~ing mechanism,alcohol perfume spraying mechanism,angle insertion mechanism and automatic feeding mechanism etc
Applications
Packaging various kinds of regular objects like biscuits, pies, chocolates, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates ,toilet paper etc.
Specification
| Model: | JY-350D |
| Speed (bags/m): | 30-200 |
| Packing size (mm): | L:60-400,W:30-120,H:5-70 |
| Max film width (mm): | 360 |
| Film thickness (mm): | ≥0.02 |
| Total power (KW): | 2.5 |
| Rated voltage: | 220V,50HZ |
| Weight: | 750 KG |
