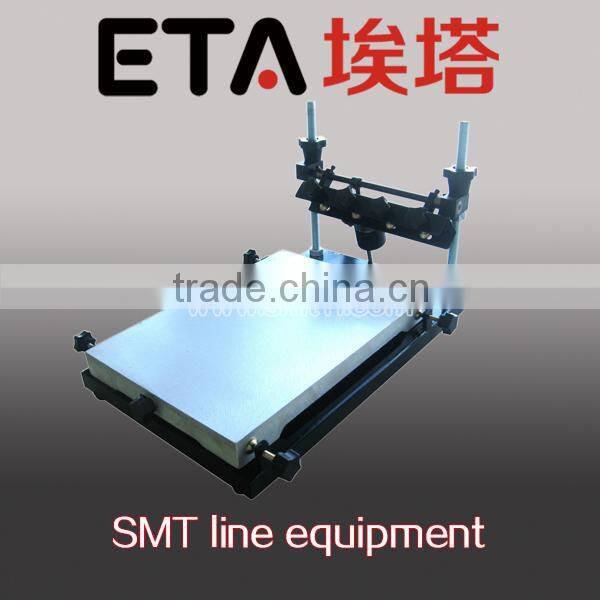

LED Strip solder paste printing machine
Main product: SMT Stencil Printer, Semi-Automatic Printing, PCB Printer, screen printing, , SMT screen printer, SMT printer, Solder Paste Printer, SMT solder paste stencil printer, SMT printer machine, stencil printer, Stencil Printer
Model: Semi-Automatic Stencil Printer
Brief: SMT, Semi-Auto Stencil Printer, Semi-Auto Stencil Printer, lead-free reflow oven, reflow soldering, wave soldering, SMT equipment, stencil printer, AOI, BGA repair stations, wave soldering machines, solder paste, fluxes, Bar Solder, semi-automatic printer, solder paste,
Details
>Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
>Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
>Block can be adjusted before and after the blade, to choose the right printing position.
>Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
>School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
>Can be set to one-way and two-way, a variety of printing methods.
>With the automatic counting function to facilitate the production of output statistics.
>Adjustable blade angle, steel blade, rubber scraper are suitable.
>Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
>Printing speed display, can be adjusted.
| Specifications | P3 | P6 | P12 |
| Dimensions | 780X700X1630mm | 880X780X1630mm | 1750X780X1630mm |
| Weight | 260kg | 290kg | 420kg |
| Power Supply | AC220V± 10%, Single Phase 50/60HZ, | ||
| Air Pressure | 4.5-6Kg/cm | ||
| Power Consumption | 3KW | ||
| Transport Speed | Stepping Motor, 0-1500mm/s Programmable | ||
| PCB Size(L*W) | 330*300mm | 600*300mm | 1200*300mm |
| PCB Thickness | 0.2-6mm | ||
| Stencil Positioning | Manual | ||
| Cycle Time | < 9S | < 10S | < 15S |
| Accuracy | ± 0.05mm | ||
| Repeating Accuracy | ± 0.01mm | ||
Wooden case
