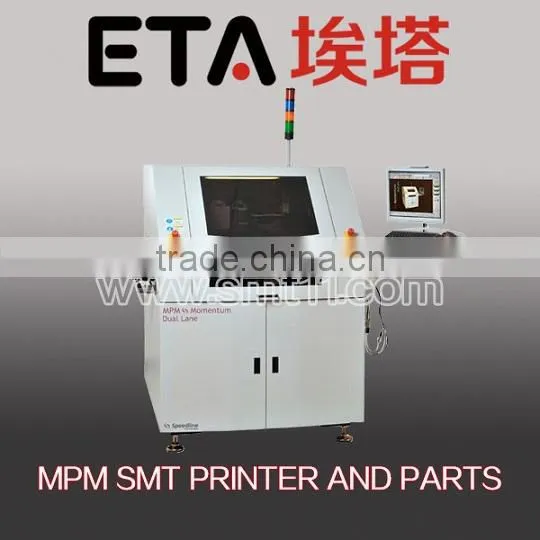

MPM SMT stencil PRINTER/SMT ASSEMBLY LINE,MPM SMT PRODUCTION LINE
PCBA Printer,SOLDER PASTE PRINTER
- 1. Product Features:
a) Wide compatibility for PCB dimensions from 50mm x 70mm to 700mm x 500mm and PCB thickness from 0.8mm to 6mm
b) High printing resolution
- 1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
- 2. Support glue printing
c) Automatic control improves production efficiency, quality control and saves production cost:
- 1. Automatic steel mesh positioning;
- 2. Automatic PCB alignment;
- 3. Automatic adjustment of squeegee pressure;
- 4. Automatic printing;
- 5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type);
- 6. Adopt company independently developed suspended print head and programmable automatic pressure adjustment
- 2. Applicable pitches of Components
a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
b) IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball diameter of 0.2 mm;
c) Printing size:50mm x 70mm ~650 mm x 500 mm;
d) PCBThickness:0.8 mm ~ 6 mm
e) Thickness:thickness0.8 mm (excluding jig)

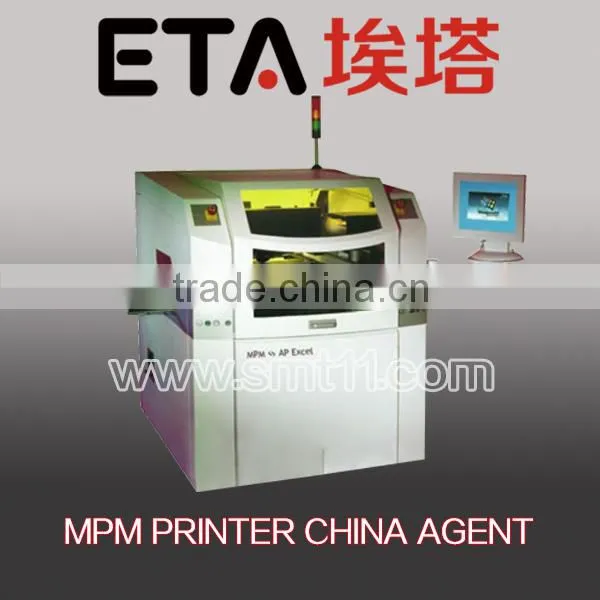

MPM SMT stencil PRINTER CHINA AGENT,MPM UP200 PRINTER
Printing with traditional screens, or with metal foil stencils, MPM Printers uniformly deposit solder paste, as well as masks, epoxies, adhesives, and other printable materials onto bare rigid or flexible PCBs in one of the key steps in the assembly process.
MPM printers deliver superior results with today’s advanced metal foil stencils. Whether stencils are chemical or laser etched, conventional or stepped, standard or fine pitch, MPM printing technology with advanced-design metal squeegee blades or the EnclosedFlow™ print head achieves superior results with all electronic materials, from solder paste to silicones. Recognized worldwide for precision solder paste deposition on PCBs,
