Semi-automatic liquid glue dispenser machine
Product synopsis:
1,controlled by microcomputer making the dispensing volume and time more precise.
2,Easy and convenient to operate, matched with manual or pedal switch, enable to dispense with certain volume in fixed time.
3,Four modes available,manual,automatic,semi-auto,pedal control.
4,Perfect appearance by design, smart volume for saving space.
5,Kinds of dispensing nozzles for choosing.
6,one set include: one PCS dispensing machine, one PCS foot switch, one glue tank, one PCS nozzle, one PCS adaptor.
Technical performance target:
1. feed flow time: 0.01s-1S,0.1s-10S,0.2s-20s,0.3s-30s (digit demonstrated that digital control point rubber time, precision high);
2.input barometric pressure: 0.5 Mpa 10.7 MPa;
3. output barometric pressure: 0.05 MPa 10.7 MPa;
4. repeat accuracy: 0.5%;
5. smallest drop out point quantity: 0.005ml;
6. working speed: >300/minute;
7. input voltage: 220V±10% 50Hz;
8. Consumed power: Is smaller than 15W ;
9. external dimensions: 220mmX63mmXl65mm;
10. weight:3kg.
Application domain:
1,The electric apparatus of the car, packaging, household appliances, the bearing,
2,Circuit board, electronic element, the camera, medicine,
3,The package of the electric apparatus, the condenser, the production process is dealt with, the instrument,
4,Jewel, the relay, quartz crystal, integrated circuit,
5,Lamp decoration, the apparatus of radio, electric wire connector .

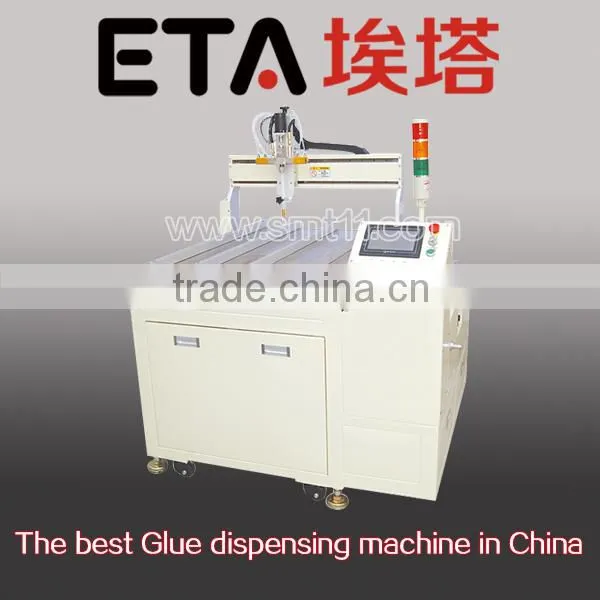

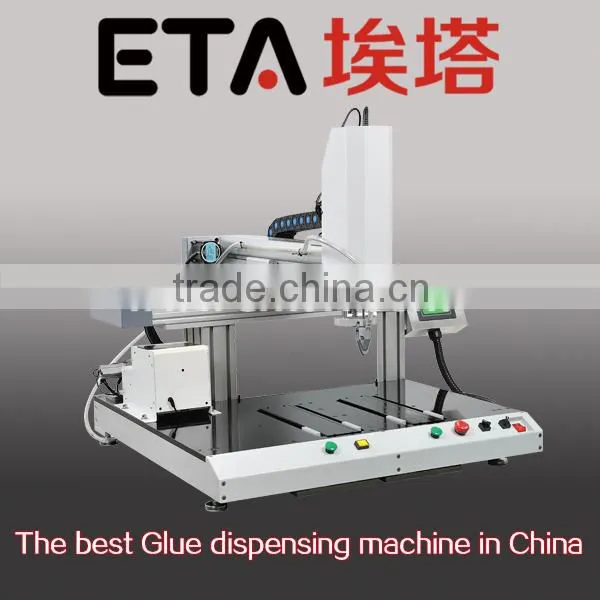

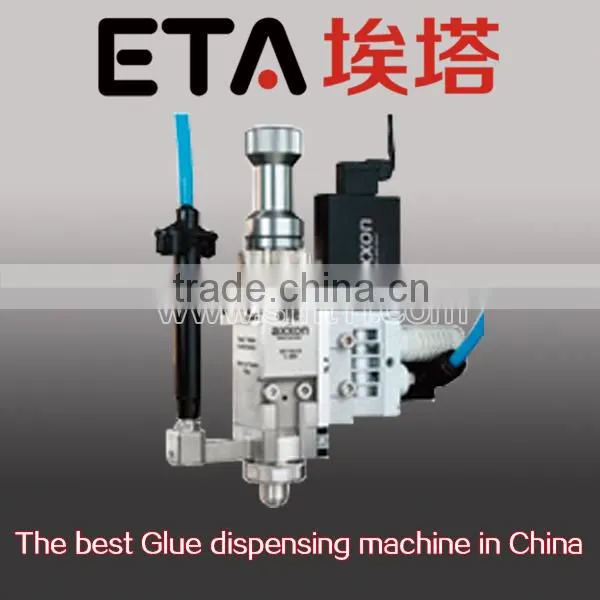

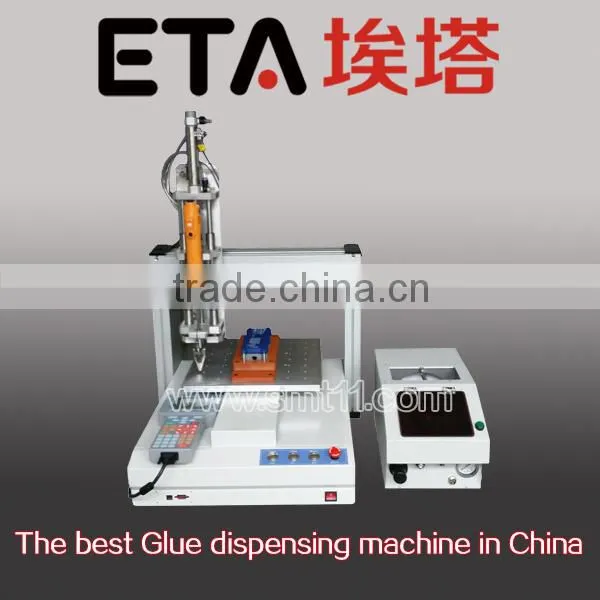

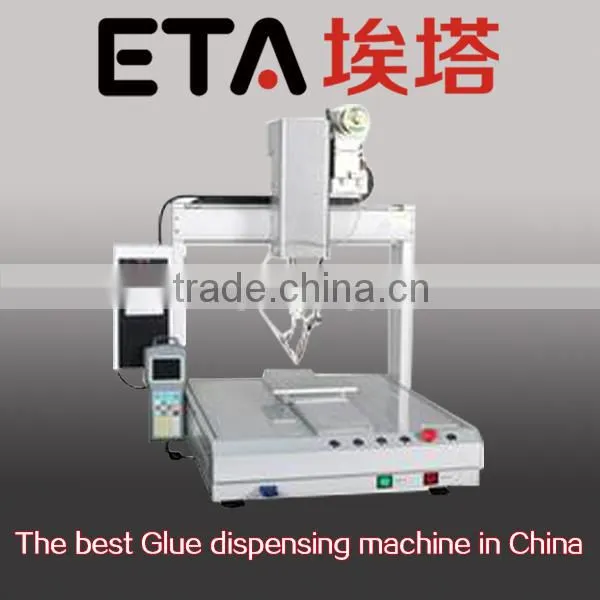

Product picture:
